- 5 -

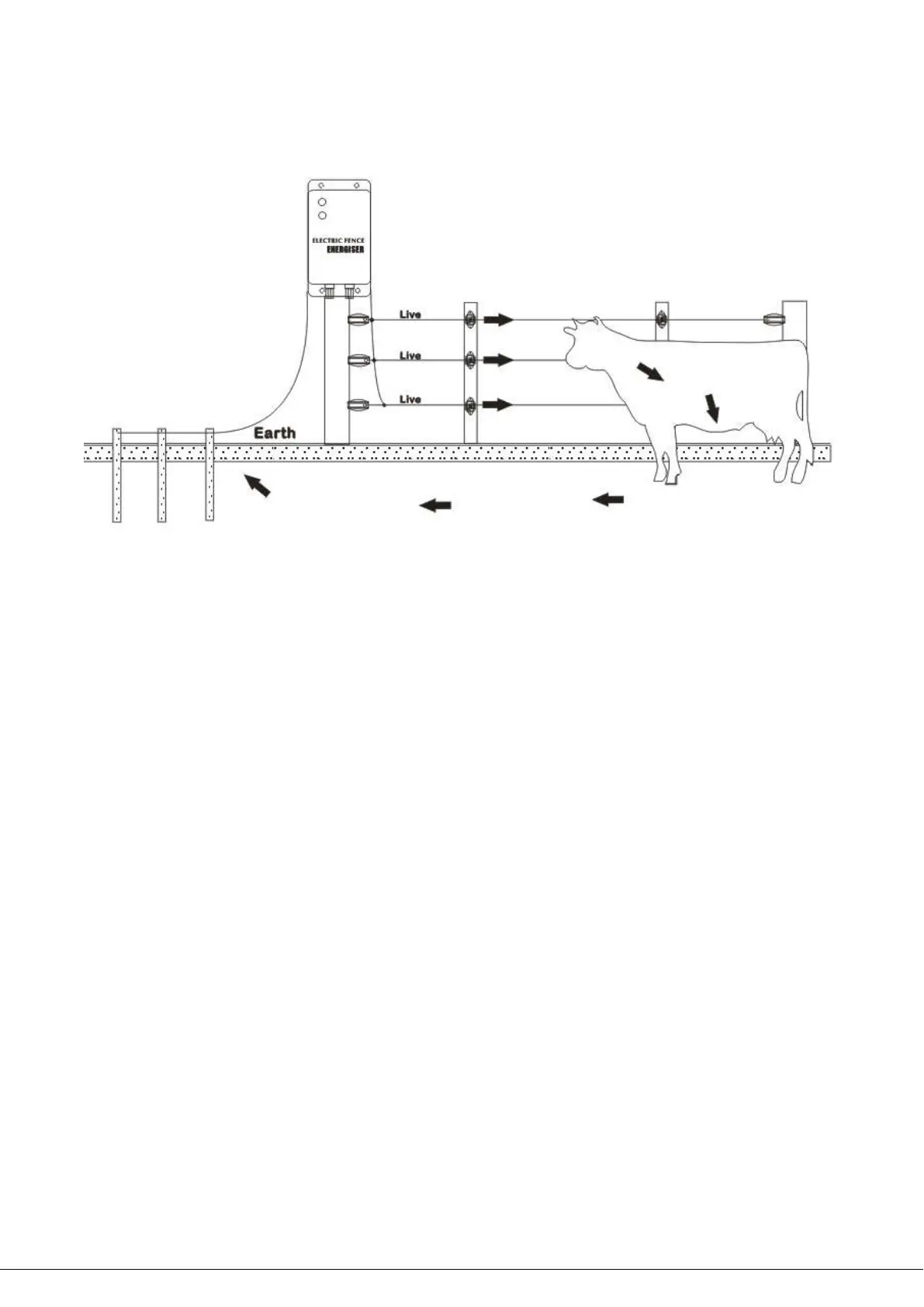

4. Ground connection
Copper, Stainless Steel or Galvanized steel rods are best conductor.
If the conductivity of ground is not good, because of dry soil or sand , or the the distance of
fence wire is too long, the pulse circuit will not form even when animal touches the wire. Then we
make adjustment of fixing the earth wire to bars also, add an grounding wire, By doing so, the
system could work as efficiently as it does in common cases.
Stick two steel bars into ground, make sure the length between two bars is more than 30 cm,
then connect the black ground icon with one bar and connect the red pulse icon with the other. Put
on the power and choose the 1.5 second mode. If the right number is less than 4 kv, the ground
connection is good.
Grounding conductivity is not good
