3. installation

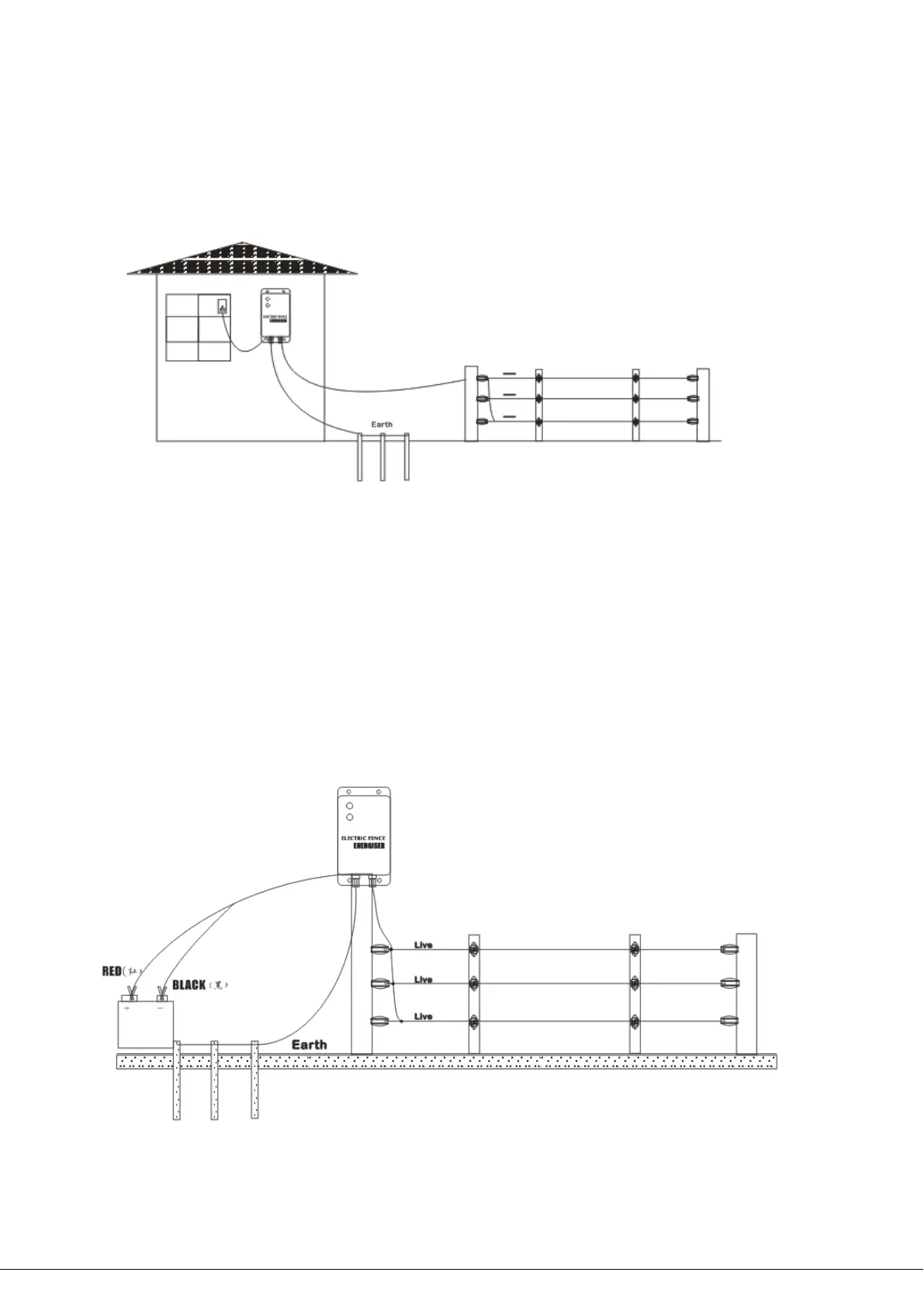

3.1 Indoor
A appropriate place for fixing the energiser;
Out of touch of children
Connect the black grounding terminal with clip to grounding;
Link the red pulse output terminal with clip to live wire;
Connect with adaptor;
Notice: the adaptor could replace the battery to provide power to energiser
3.2 Outdoor
In most cases, the energiser should be fixed on the wooden(steel) bar ,Link the black termnal with
clip to grounding;
