Tonna F9FT - Element Lengths

~

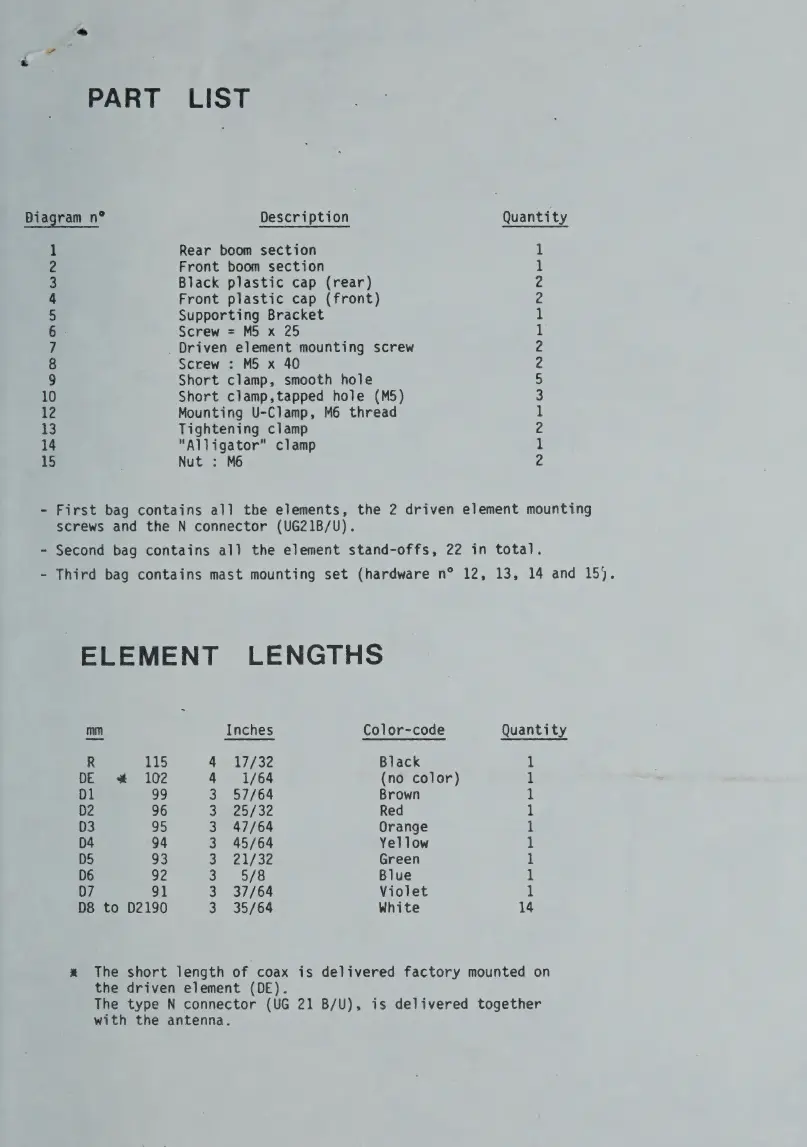

PART LIST
Diagram n° Description Quantity
1 Rear boom section 1
2 Front boom section 1
3 Black plastic cap (rear) 2
4 Front plastic cap (front) 2
5 Supporting Bracket 1
6 Screw = M5 x 25 1
7 Driven element mounting screw 2
8 Screw : M5 x 40 Zz
9 Short clamp, smooth hole 5
10 Short clamp,tapped hole (M5) 3
12 Mounting U-Clamp, M6 thread 1
13 Tightening clamp 2
14 "Alligator" clamp 1
15 Nut : M6 2
- First bag contains al] the elements, the 2 driven element mounting
screws and the N connector (UG21B/U).
- Second bag contains al] the element stand-offs, 22 in total.
- Third bag contains mast mounting set (hardware n° 12, 13, 14 and 15).
ELEMENT LENGTHS
mm Inches Color-code Quantity
R 115 Amis /32 Black 1
DE # 102 4 1/64 (no color) 1
D1 99 3 57/64 Brown 1
D2 96 Sed /32 Red 1
D3 95 3 47/64 Orange 1
D4 94 3 45/64 Yellow 1
D5 93 3 21/32 Green 1
D6 92 SOLS Blue 1
07 91 3 37/64 Violet i]
D8 to D2190 3 35/64 White 14
* The short length of coax is delivered factory mounted on
the driven element (DE).
The type N connector (UG 21 B/U), is delivered together
with the antenna.
