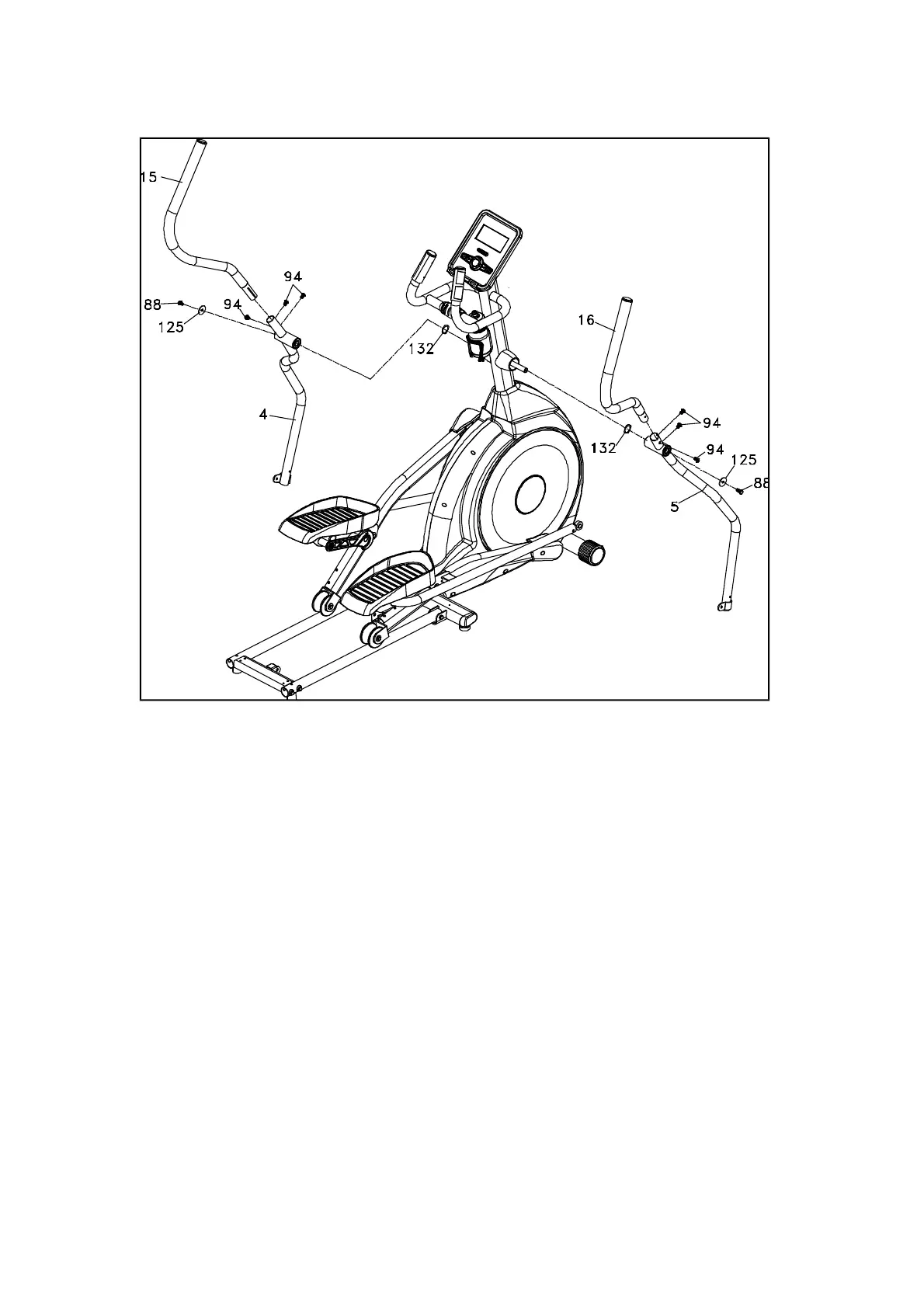

2 HANDLE BAR ASSEMBLING
1. Put two Ø17_Wave Washers (132), Lower Handle Bar (L) (4) and Lower Handle Bar
(R) (5) in order onto the shaft of Mast (10) and secure with two 5/16" × 15m/m_Hex
Head Bolts (88) and two 5/16" × 23 × 1.5T_Flat Washers (125) by using
12m/m_Wrench (136).
2. Connect Swing Arm (L) (15) with Lower Handle Bar (L) (4) and secure with three
5/16" × 15m/m_Button Head Socket Bolts (94) by using Combination M5 Allen
Wrench & Phillips Head Screw Driver (135). Repeat the same procedure for the
right side.
