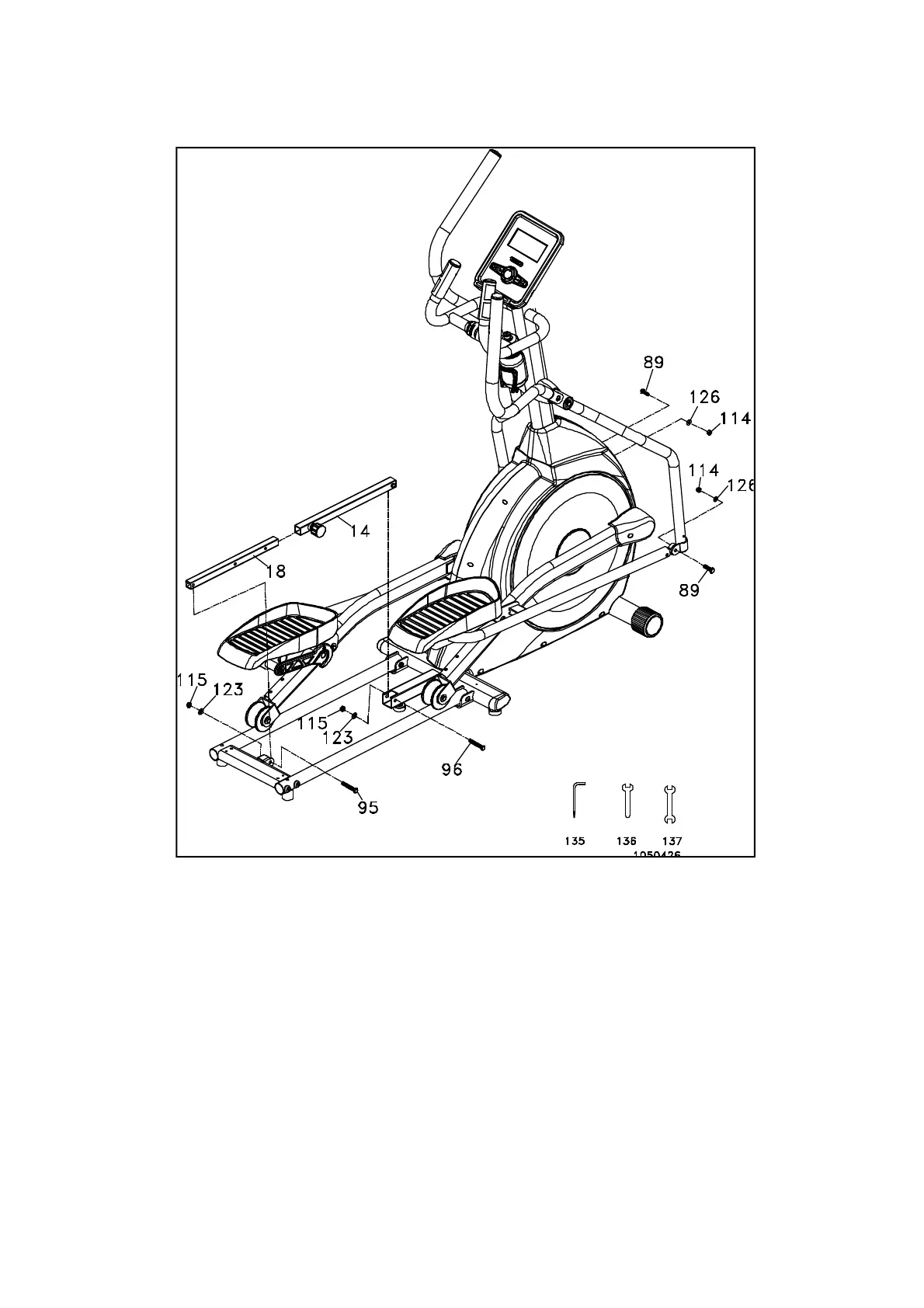

3 CONNECTING ARM ASSEMBLING
1. Use one 5/16" × 32m/m_Hex Head Bolt (89), 5/16" × 20 × 1.5T_Flat Washer (126) and
5/16" × 7T_Nyloc Nut (114) to secure the Rod End Bearing(26), which is at the end of
Lower Handle Bar (L) (4), by using 13.14m/m_Wrench (137) and 12m/m_Wrench
(136). Repeat the procedure for the right side.
2. Use 3/8" × 2"_Button Head Socket Bolt (96), 3/8" × 19 × 1.5T_Flat Washer (123) and
3/8" × 7T_Nyloc Nut (115) to secure Outer Slide (14) on the mainframe by using
13.14m/m_Wrench (137) and Combination M5 Allen Wrench & Phillips Head Screw
Driver (135). Then use 3/8" × 1-1/2"_Button Head Socket Bolt (95), 3/8" × 19 ×
1.5T_Flat Washer (123) and 3/8" × 7T_Nyloc Nut (115) to secure Inner Slide (18) to
Rail Assembly (13) by using 13.14m/m_Wrench (137) and Combination M5 Allen
9
