SGR-1 to GX-45 Installation Procedure Select the GPS Receiver
SGR-1 Antenna Software SetupSGR-1 Installation Procedure

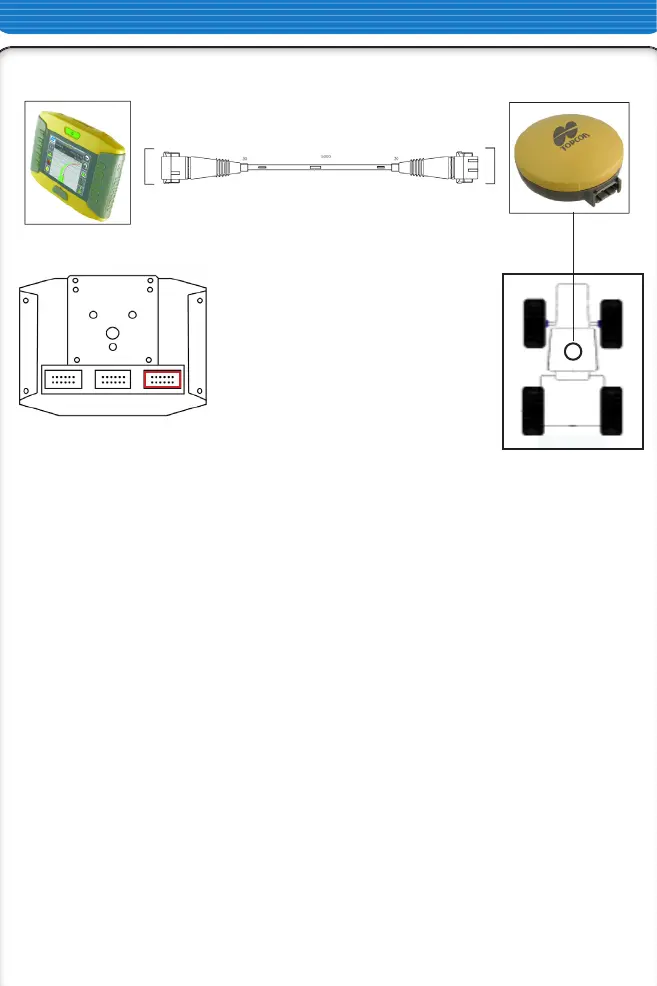

Mount the SGR-1 antenna along the center line on the roof 1.
of your tractor.
The SGR-1 antenna has 3 magnets on its base to secure its
position. A metal mounting plate is supplied to secure the
antenna to cabin tops that are non-magnetic.
Connect the AGH1368 harness to the SGR-1 antenna. 2.
Route the AGH1368 harness into the cabin through the rear 3.
window of your tractor.
Connect the AGH1368 harness to your GX-45 console.4.
Select to access GPS Settings. 1.
Select to access GPS Receiver selection.2.
Select SGR-1 using the up and down arrows. 3.
Select to confirm your selection and the system will 4.
restart.
