11
ENGINE
START
STOP

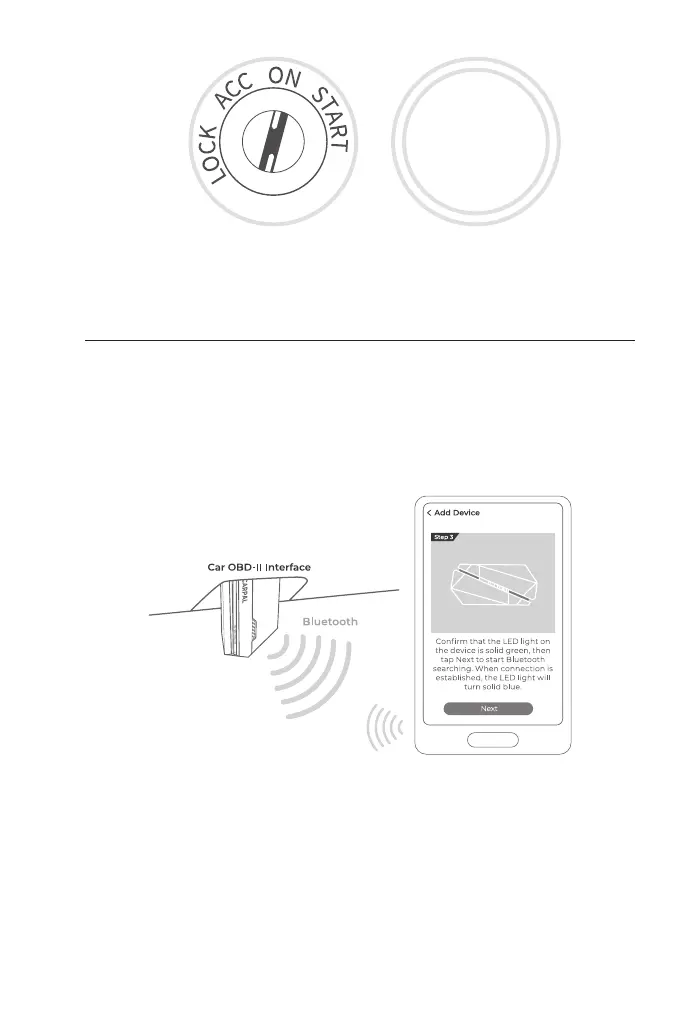

Figure 3-7 Figure 3-8
3.6 Bluetooth Connection
When the LED light is solid green, you can begin the Bluetooth
connection. Tap Next. Then tap Connect Now to connect to the
Bluetooth device on your phone settings.
When connection is established, the LED light on the device will turn
solid blue, and the VCI will be activated automatically.
Figure 3-9
