7
Wire Connection of the Lock
1. Wire Connection for A&AD&PW Series Swing Gate Opener
The E-Plus board must be used with the E-Lock when it’s connected to
the A&AD&PW swing gate opener. The E-Plus board is in the small box
which is included in the package. J3 of the E-Plus board and the electric
lock have the wiring connector. You can place the E-Plus board in the
control box and then plug the J3 of the E-plus board to the electric lock
directly. The other 2
set wires of the
E-Plus board should
be connected to the
control board as the
following wiring
diagram or the wiring
diagram in the
manual of gate opener.

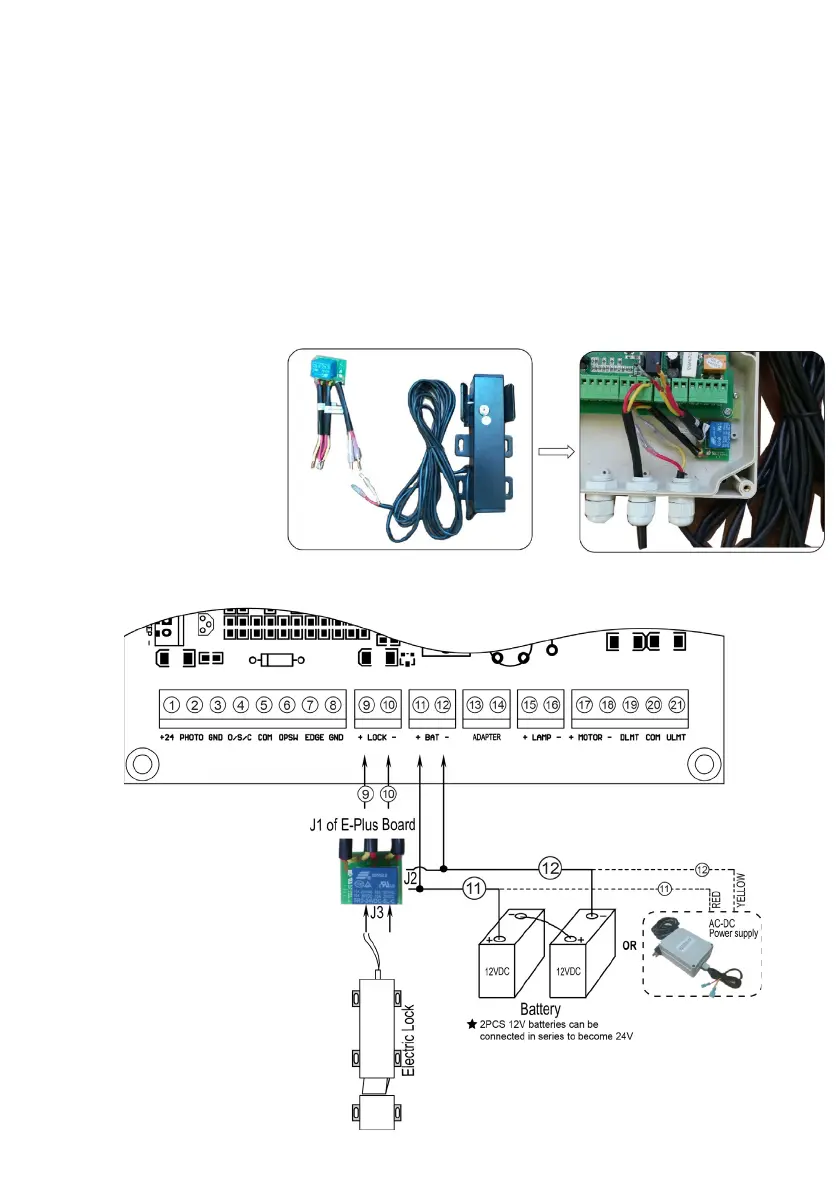

Wiring Diagram of the
E-Lock to the A Series
