2. Wire Connection of the Lock for KD 902 & AT1202 Series
Swing Gate Opener
The E-Plus board is not needed to use with the two gate openers. The
electric lock can be wired to the “LOCK” terminal directly, no matter the
polarity of the wires.

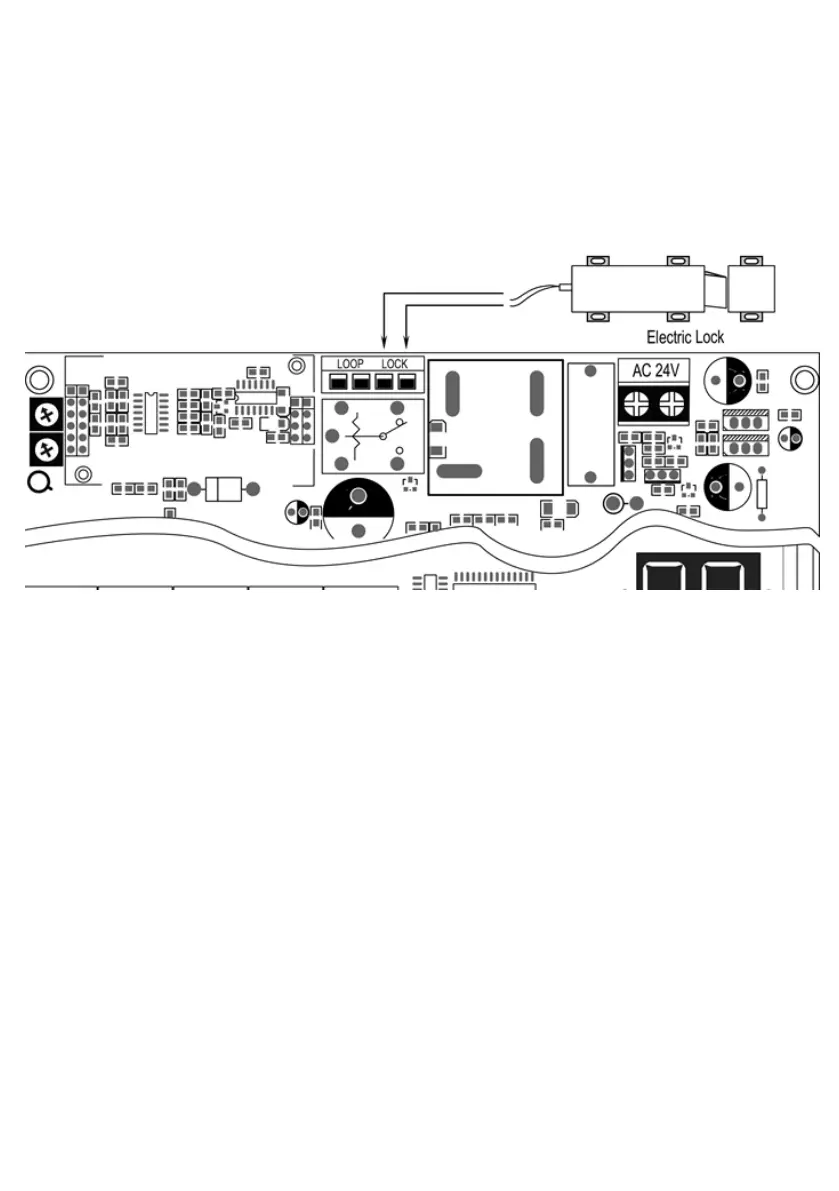

Wiring Diagram of the E-Lock to the KD902 & AT1202 Swing Gate
Opener
NOTE: If the gate opener which you want to use the lock with is not
listed in the above diagram, you can find the wiring diagram in the
user manual of the gate opener or you can contact us to provide
technical support.
