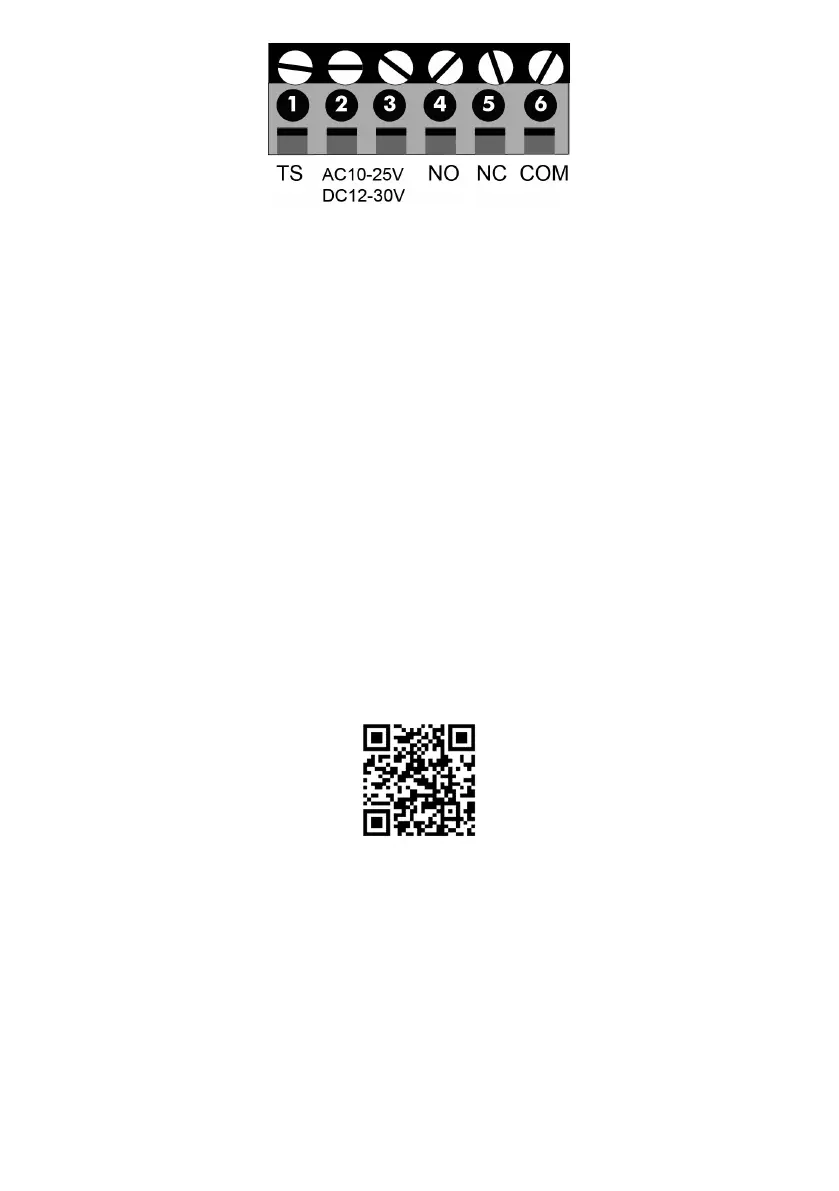

TS (#1): No use. Terminal for factory testing.
AC10-25V DC12-30V (#2 & #3): Power Input, 10-25VAC or 12-30VDC. No matter the
polarity if the power input is DC power.
NO (#4): Output contact. Normal open while the photo beam is aligned. Normal closed
while the photo beam is obstructed.
NC (#5): Output contact. Normal closed while the photo beam is aligned. Normal open
while the photo beam is obstructed.
COM (#6): Common Output contact.
NOTE: You can refer to the user manual of the TOPENS gate opener to connect the
photocell to the control board. For other brands of gate opener, you must confirm
which terminal is power output and which terminal is the photocell input (accept the
normal open or normal closed dry contact input). And then wire the AC10-25V
DC12-30V (#2 & #3) to the power supply and wire the NO/COM or NC/COM to the
photocell input (which is determined by the gate opener). If the gate opener does not
have a 10-25VAC or 12-30VDC AUX. power output, then you should provide a
separate power supply for the sensor.
