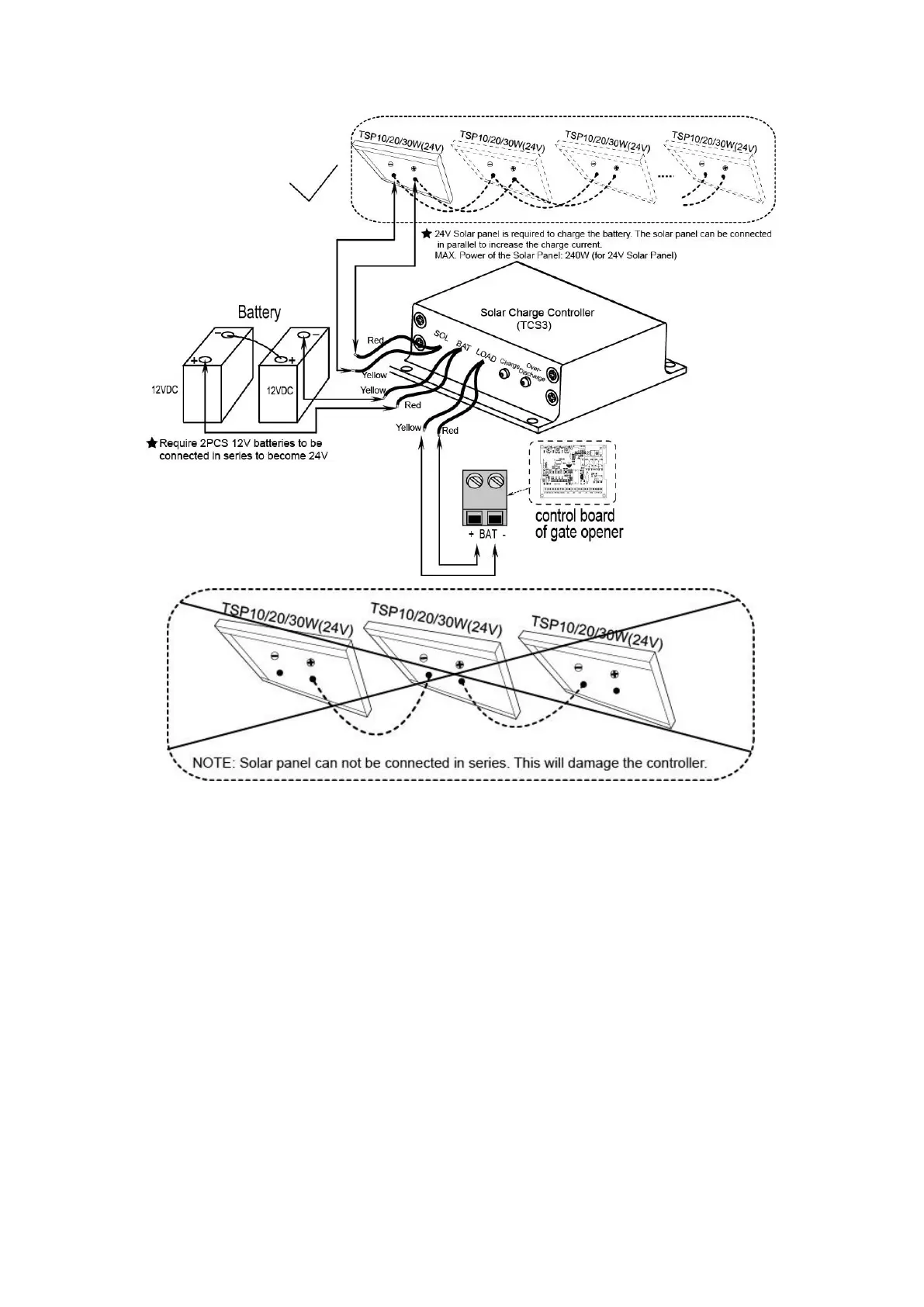

Firstly connect the battery to the controller and then connect the solar panel to the “SOL” terminal of the controller.
Connect the “BAT” terminal of Control Board of gate opener to the “LOAD” terminal of the controller by the
extension cord as wiring diagram above. Don’t use the cord which is smaller than 0.75mm
2
(18 AWG) when the
length is longer than 22.5m (75’). The 2mm
2
(14 AWG) or 3.3 mm
2
(12 AWG) is strongly recommended for 30m
(100’) or 45m (150’) extension distance. Please note the polarity of all the appliances while connecting.
NOTE: Maximum current of the load or the solar panel should not exceed 10A.
NOTE: Solar panel can not be connected in series. It will damage the controller.
1.2 The battery is charged by solar panel and the adapter at the same time
