THE FIXING POSITION (A) HAS TO BE VERIFIED AND EVALUATED ACCORDING TO THE PROFILE/WIDTH OF THE
WING/FRAME AND OF THE WINDOW LIGHT. THE ACTUATOR WITH SWIVEL BRACKET CAN BE SUBJECT TO A MAX.
THRUST FORCE NOT EXCEEDING 250 N FOR A CORRECT OPERATION, THE WINDOW MUST HAVE A MIN. HEIGHT OF
400 mm (ACTUATOR DISTANCE FROM THE WINDOW FRAME OPENING HINGE).
THE CHAIN CAN CURVE BOTH UPWARDS AND DOWNWARDS DEPENDING ON THE WINDOW'S WEIGHT, ON THE
DISTANCE BETWEEN THE PUSH POINT AND THE HINGES, ON THE WIND. THIS DOES NOT AFFECT THE GOOD
PERFORMANCES OF THE ACTUATOR.

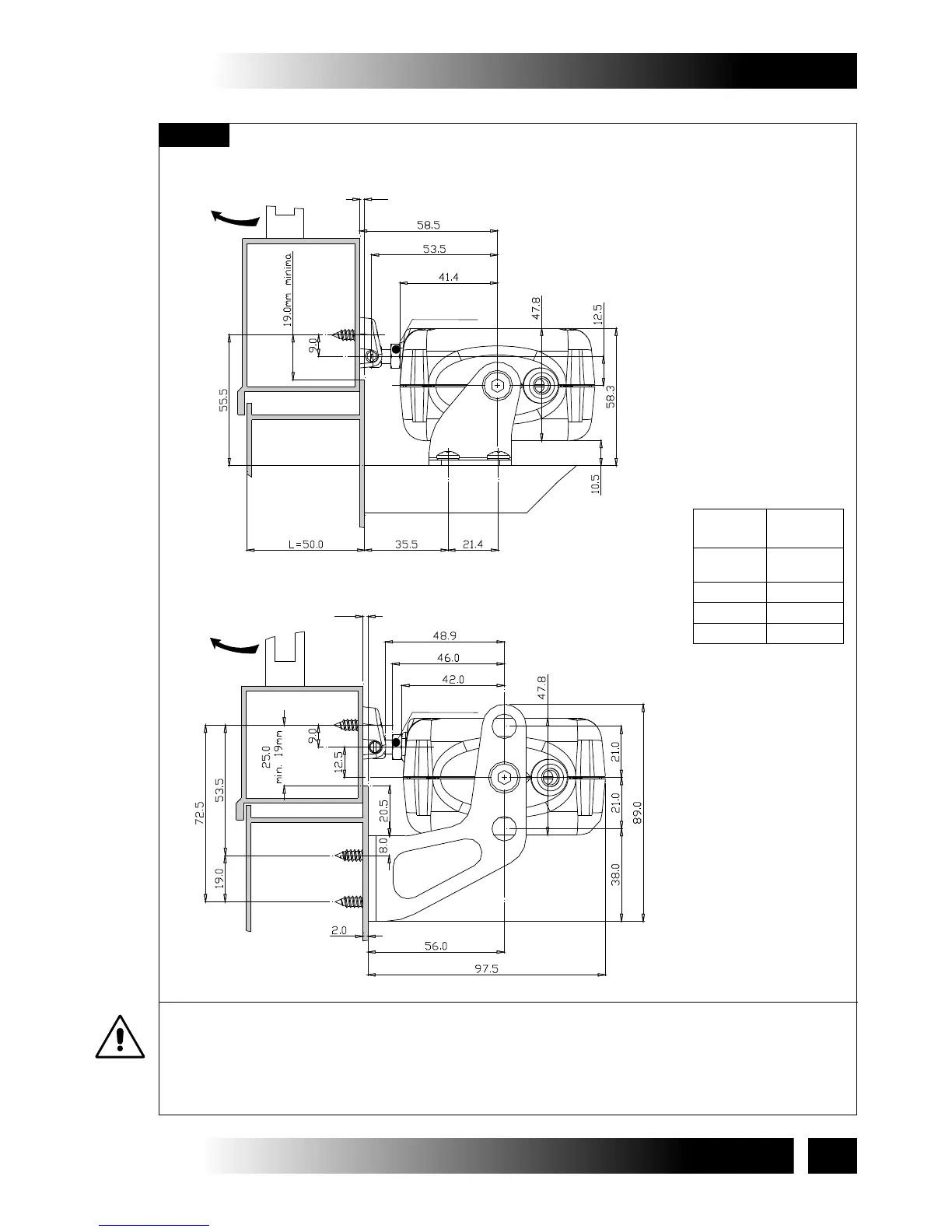

SMALL SWIVEL BRACKET (COD. 3A1396-97-98-99)
FRAME
WING
(A)
(D)
FRAME
WING
(D)
BIG SWIVEL BRACKET (COD.3A1391-92-93-94)
Window frame
adjustment
pin code
0B0008
(Standard)
0B0005
0B0007
0B0006
Overlapped part
(D)
0 ÷ 10 mm
10 ÷ 20 mm
20 ÷ 30 mm
30 ÷ 40 mm
Fig. 15
ACK4
27
SPARE PARTS AND ACCESSORIES UPON REQUEST -9
INSTALLATION AND USE ISTRUCTIONS
VER.0.0
REV.11.12
M6 nut
Make sure that the M6
nut is tightly fastened
M6 nut
Make sure that the M6
nut is tightly fastened
