TOPP ACK4 User Manual

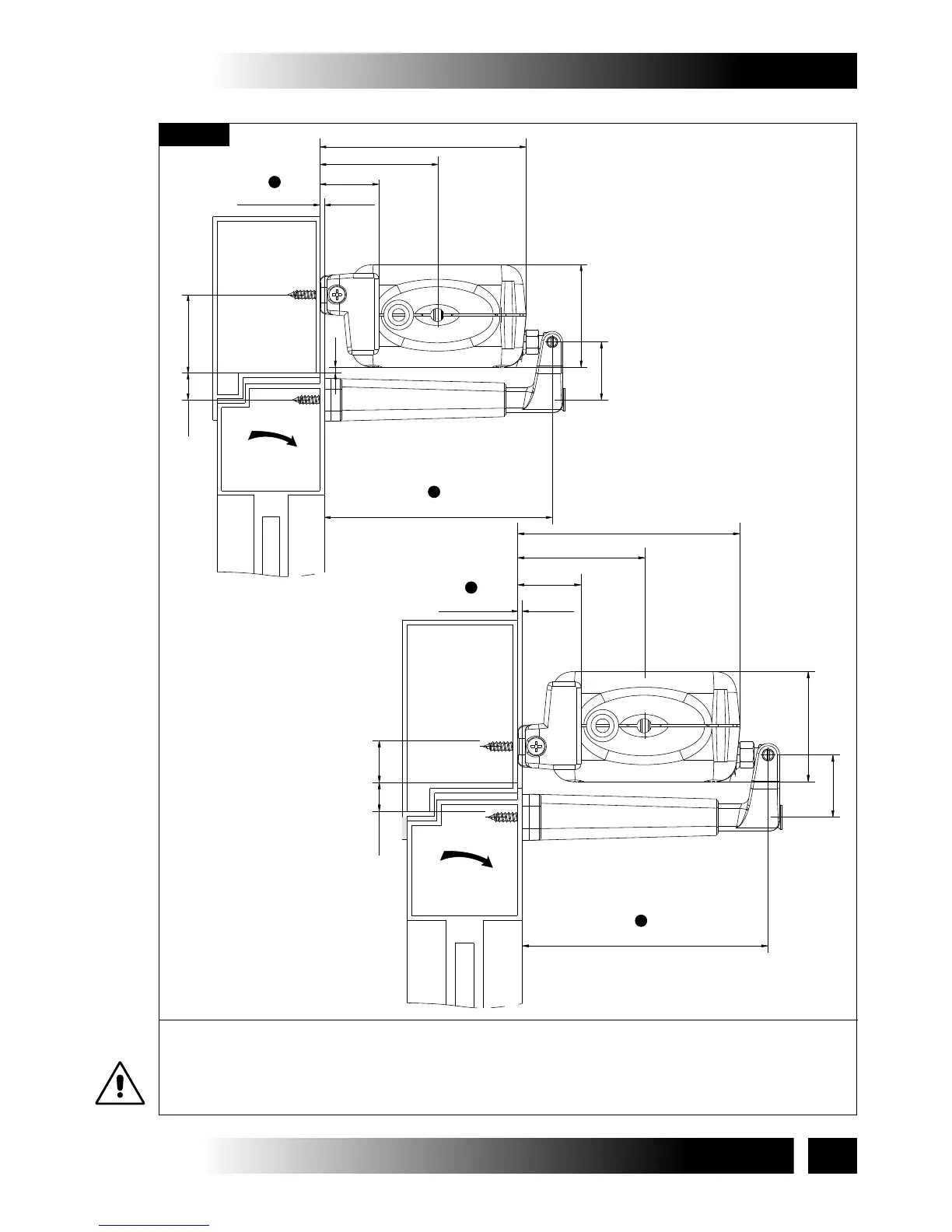

VERIFY THAT THE DISTANCE "D" BETWEEN THE FIXED PART AND THE MOVABLE PART
OF THE WINDOW IS INCLUDED WITHIN 0 AND 5 mm.
THE DISTANCE “C” IS ADJUSTABLE FROM 105 TO 110 MM DEPENDING ON THE
OVERLAP “D”.
2.5
12.5
36.5
105÷110
55.2
27.5
96.3
47.8
27
12.5
55.2
27.5
96.3
47.8
27
105÷110
18
Fig. 27
Wing
Frame
APPLICATION 1
T1 and T2 head downwards
APPLICATION 2
T1 and T2 head upwards
Frame
Wing
ACK4
INSTALLATION ON BOTTOM HUNG WINDOWS
31
INSTALLATION AND USE ISTRUCTIONS
VER.0.0
REV.11.12
D
0÷5mm
D
0÷5mm
C
C
