TOPP ACK5 User Manual
5
of 1
of 1 rating
36 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
10
31
12
27.5
96.7
55.2
45.5
47.8
D

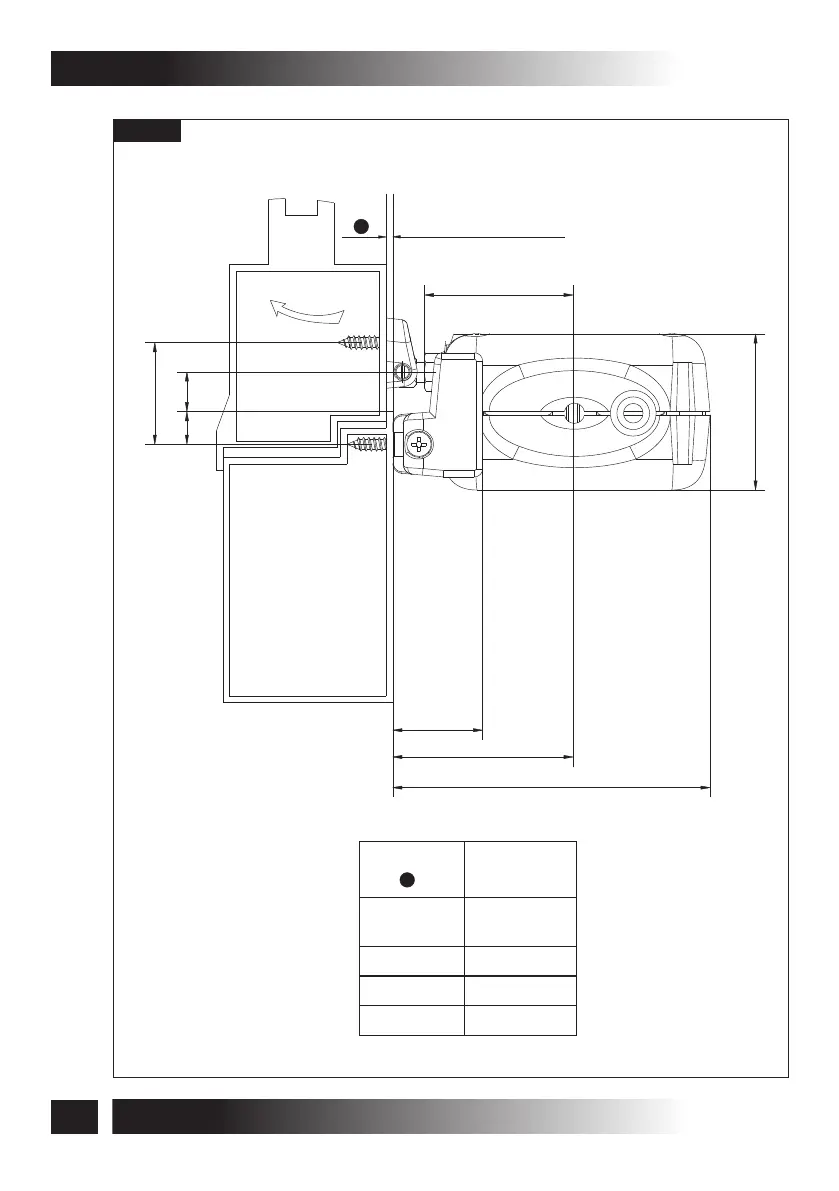

Fig. 16
Frame
Wing
28
INST
ALLA
TION
AND USE ISTRUCTIONS
ACK5
INST
ALLA
TION ON TOP
HUNG WINDOWS
0÷10mm (Standard)
Window frame
adjustment
pin code
0B0008
(Standard)
0B0005
0B0007
0B0006
Overlapped part
0
÷
10 mm
10
÷
20 mm
20
÷
30 mm
30
÷
40 mm
D
27
29
Table of Contents
Default Chapter
3
Table of Contents
3
General Instructions
5
Installer and User
5
Technical Assistance
5
Reserved Rights
5
2 General Remarks
6
Description of Personnel
6
Rating Plate and "CE" Marking
7
3 Technical Description
8
Denomination of the Components and Dimensions
8
Technical Data
9
Destination of Use
10
Use Limits
11
4 Safety
13
General Instructions
13
Safety Devices
13
Safety Plates
14
Residual Risks
14
7 Maintenance
15
General Instructions
15
5 Installation
16
Top Hung Windows
16
Bottom Hung Windows
17
Electric Connections
19
Control Devices
19
Emergency Procedures
21
6 Use and Operation
22
Use of the Actuator
22
8 Demolition
23
General Instructions
23
9 Spare Parts and Accessories Upon Request
24
