DRAWINGS FOR INSTALLATION
ACK5
CLOSES
BLUE
(BLACK)
BROWN
(RED)
24V
OPENS
CLOSES
BLUE
(BLACK)
BROWN
(RED)
24V
OPENS
CLOSES
BLACK
230V~50Hz
N
L
OPENS
BROWN
CLOSES
BLACK
GREY
(LIGHT BLUE)
GREY
(LIGHT BLUE)
230V~50Hz
N
L
OPENS
BROWN
230 V24 V

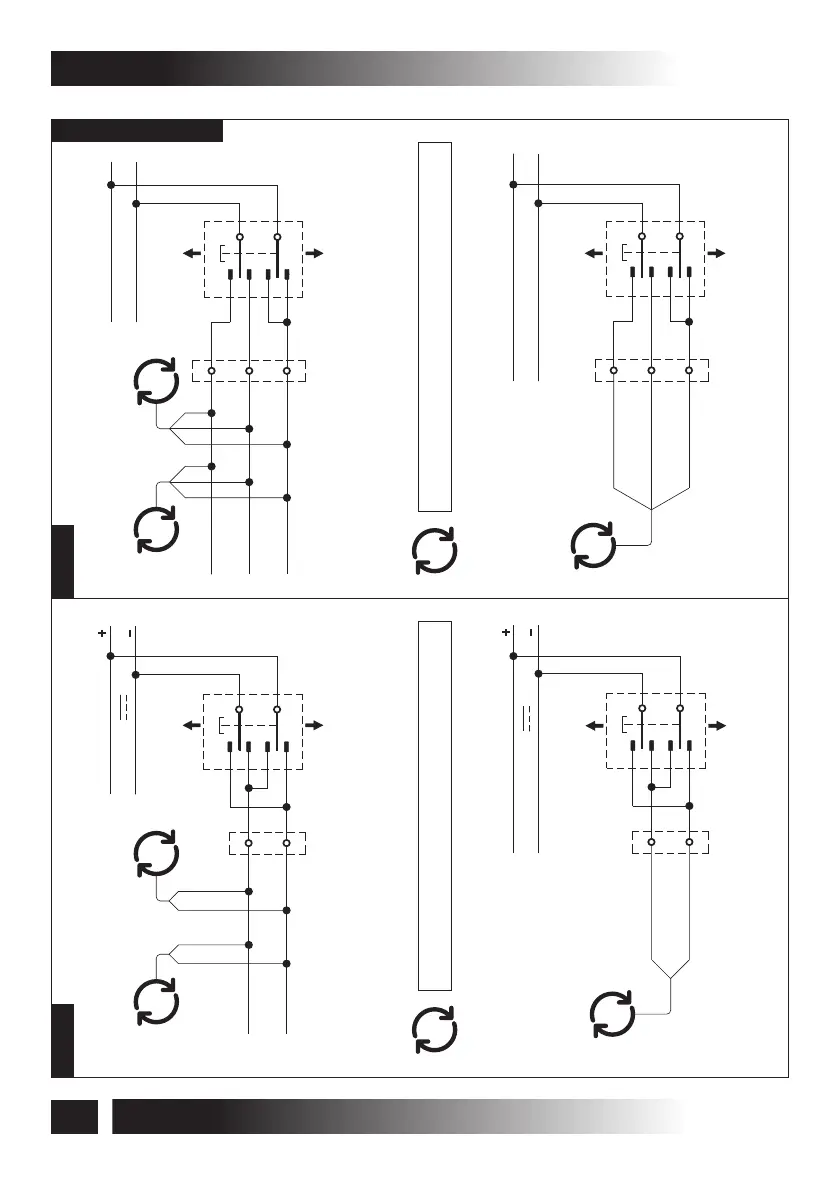

Wiring diagram
34
INSTALLATION AND USE ISTRUCTIONS
ACK5
ACK5
ACK5
ACK5
ACK5
A AA A
A
ACK5
A
A
THIS SYMBOL IDENTIFIES THE TOPP ELECTRICAL ACTUATOR
IN WIRING DIAGRAMS.
A
THIS SYMBOL IDENTIFIES THE TOPP ELECTRICAL ACTUATOR
IN WIRING DIAGRAMS.
