Page
8

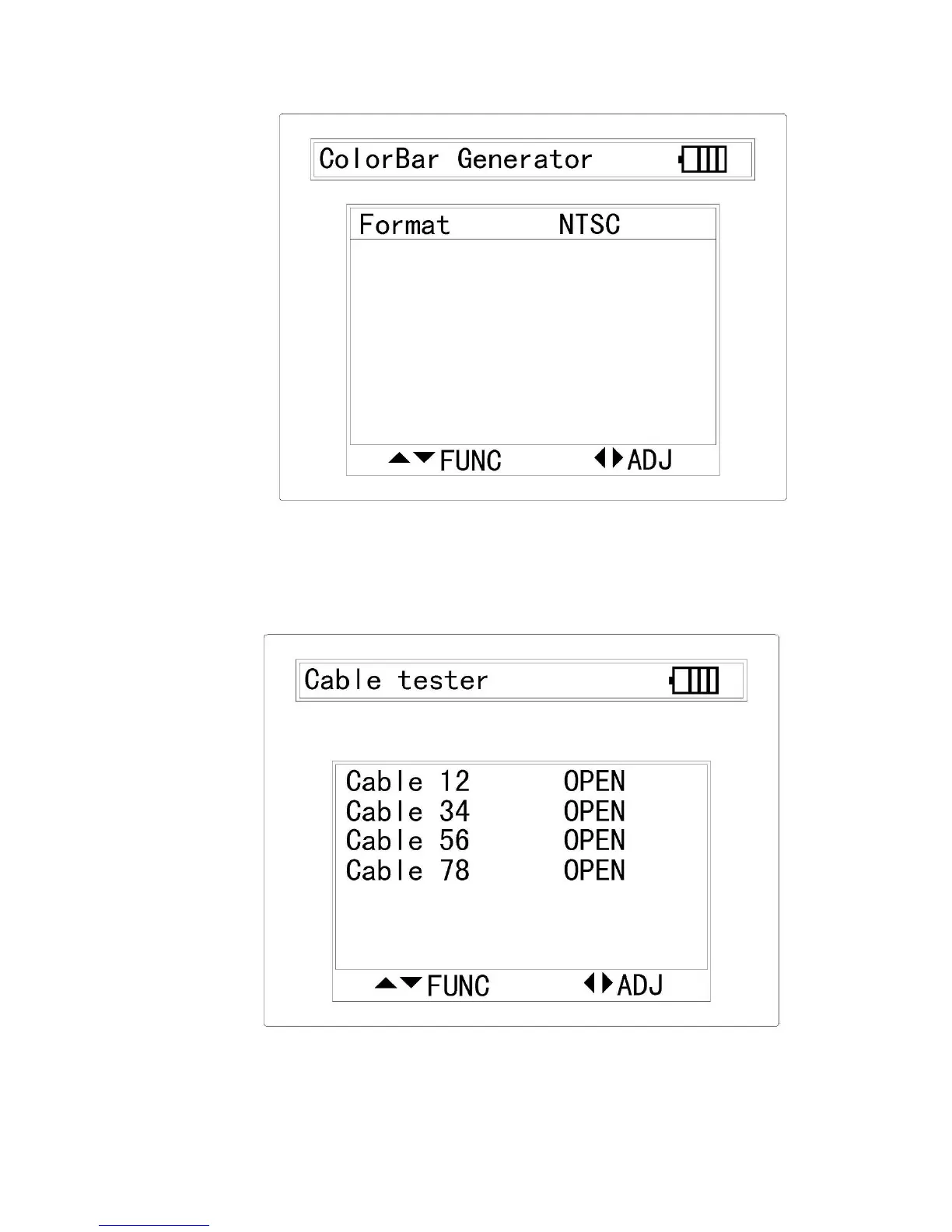

3.6 Cable Tester
Connect the LAN cable to the RV45 connector (Tab 1-11), and another
terminal to the LAN test kit, to check to connections for each channel.
