INSTALLATION
Energy Star Home Certication
If installing the media air cleaner into an application
that is going to have the ducts leakage tested
for compliance with 2011 Energy Star Home
Certication, Energy Efcient Mortgage (EEM),
or Energy Improvement Mortgage (EMI) rating
requirements, then cut the provided roll of gasket
material to length and apply to the inner door anges
that meet up with the front access panel of the media
air cleaner to reduce the air leakage between the
door and the air cleaner.
More information about the Energy Star Home
Certication, EEM, and EMI requirements can be
found at http://www.texenergyaudit.org/facts.htm
Installing the Filter media
The arrow on the lter media must point in the
direction of the air ow. If the media cabinet is
installed in the return air side of the duct work,
the arrow will typically point toward the blower
compartment.
Installation (continued)
2. Fasten the media cabinet to the furnace
Carefully create or use opening in the furnace or air
handler to match the lter media cabinet opening.
Place enclosed gasket material on the side of the air
cleaner that joins up with furnace or air handler. You
can attach the media cleaner cabinet directly to the
furnace or air handler, or t a starting collar in the
furnace opening. Drill holes and secure the cabinet
to the furnace with sheet metal screws. (Rivets or
slip joints are also suitable.)
3. Fasten media cabinet to the return duct
Secure the cabinet in place by using locking pliers.
Drill holes and secure the cabinet to the furnace with
sheet metal screws. (Rivets or slip joints are also
suitable.)
4. Seal joints to prevent leaks
Ensure all joints are sealed.

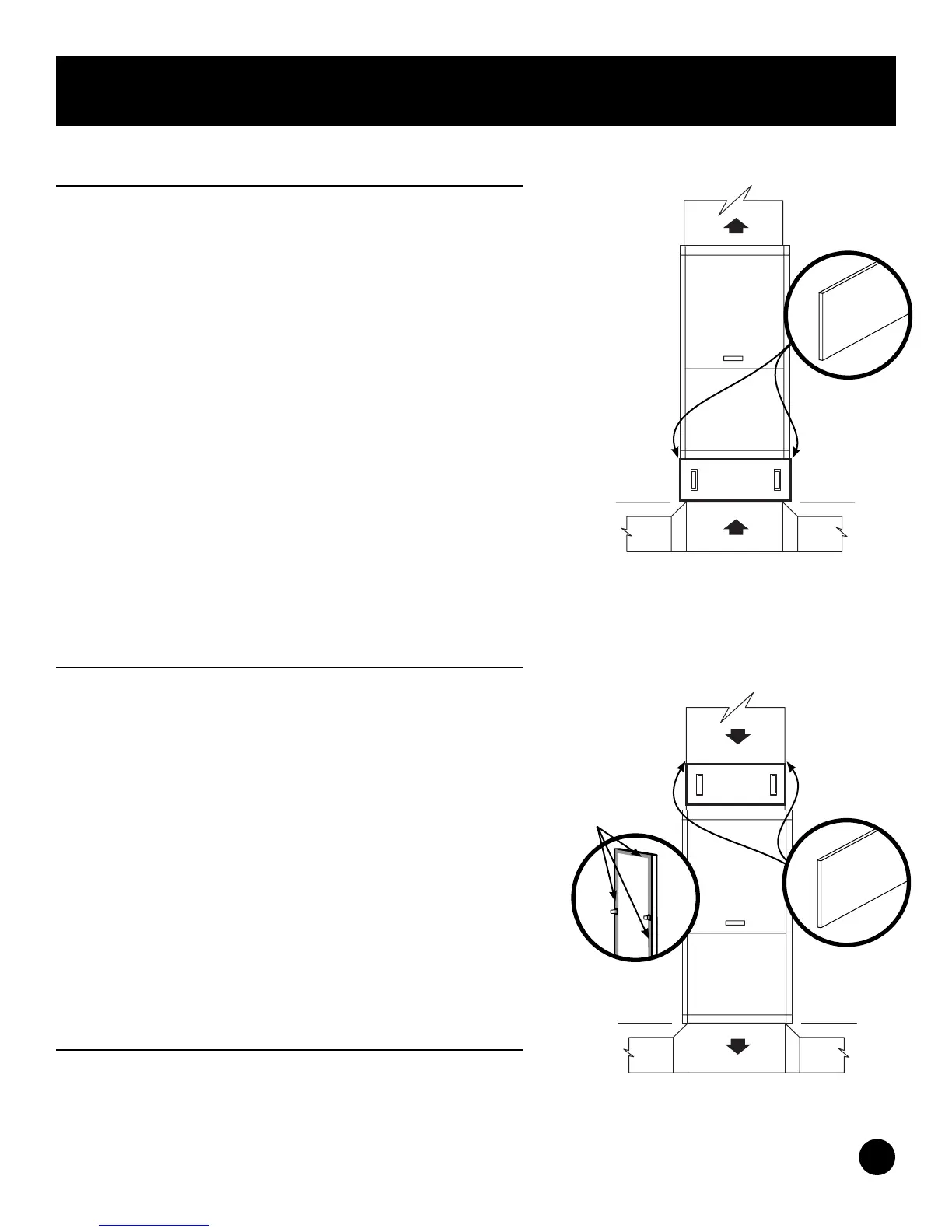

Secure flat bracket front
to back with 8x1/2 self-
tapping screws.
Secure flat bracket front
to back with 8x1/2 self-
tapping screws.
Apply gasket material to
inner door flanges that
meet up with the front
access panel of the media
air cleaner.
