TOPTEK TOPVERT L1 Series User Manual

TOPVERT L1 Series
E- 12

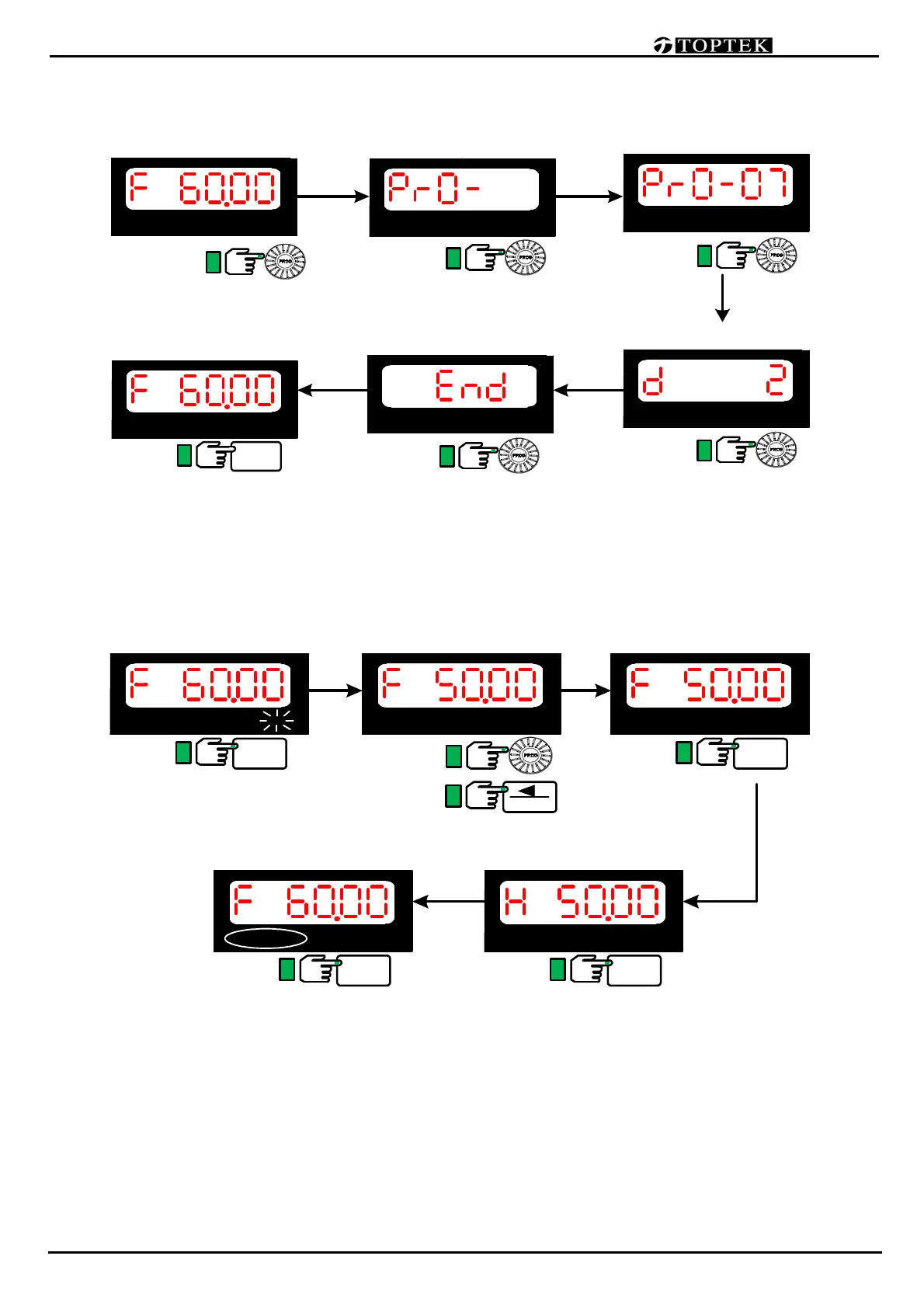

Setting parameters
(For example, to set Pr0-07 = 2)
To run
(For example, to run 50 Hz from PU)
To run setted 50.00Hz
Set master frequency
to 50.00Hz
(Use left key for quick
data entry)
RUN
Press
FW D REV EXT PU
FW D REV EXT PU
RESET
To shift data
Rotate
To setting direction,
FW D/REV
F/R
Press
FW D REV EXT PU
To enable PU
PU
Press
FW D REV EXT PU
To display actualoutput frequency
to the m otor
DISP
Press
FW D REV EXT PU
To setting parameter
Power-up Display
Press then
rotate
FWD REV EXT PU
Modify data to 2
Press then
rotate
FWD REV EXT PU
Success to set parameter.
FWD REV EXT PU
Press
Press 0.5sec
FWD REV EXT PU
To setting parameter
FWD REV EXT PU
DISP
Press twice
Press
FWD REV EXT PU
Select Pr 0-07
to be modified
