PREPARATION
Before assembling Creeper, make sure all parts are present. Compare parts with package contents list. If
any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer
service for replacement parts.

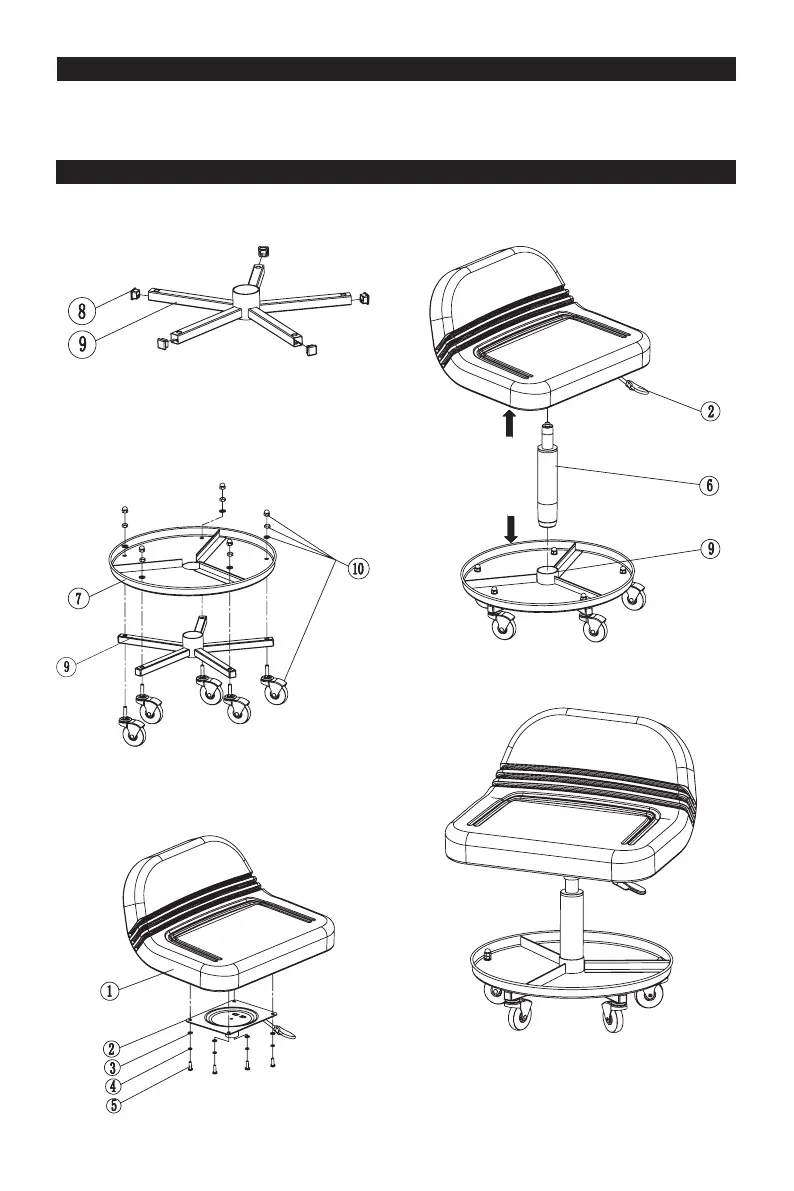

1. Knock the plastic end caps (NO.8) into the holes
of the metal frame base (NO.9).
5. Assembly is now complete.
4. Attach the pneumatic pump (NO.6) to the metal
frame base (NO.9) and the seat base (NO.2).
2. Put the metal tool tray(NO.7) onto the metal frame
base(NO.9) and align the holes, then attach the
ve caster assemblies(NO.10) through the holes
of the metal tool tray(NO.7) and metal frame
base(NO.9) and tighten all ve nuts.
3. Tighten the seat base (NO.2) to the seat assembly
(NO.1) with the washers (NO.3), spring washers
(NO.4) and screws (NO.5).
ASSEMBLY
