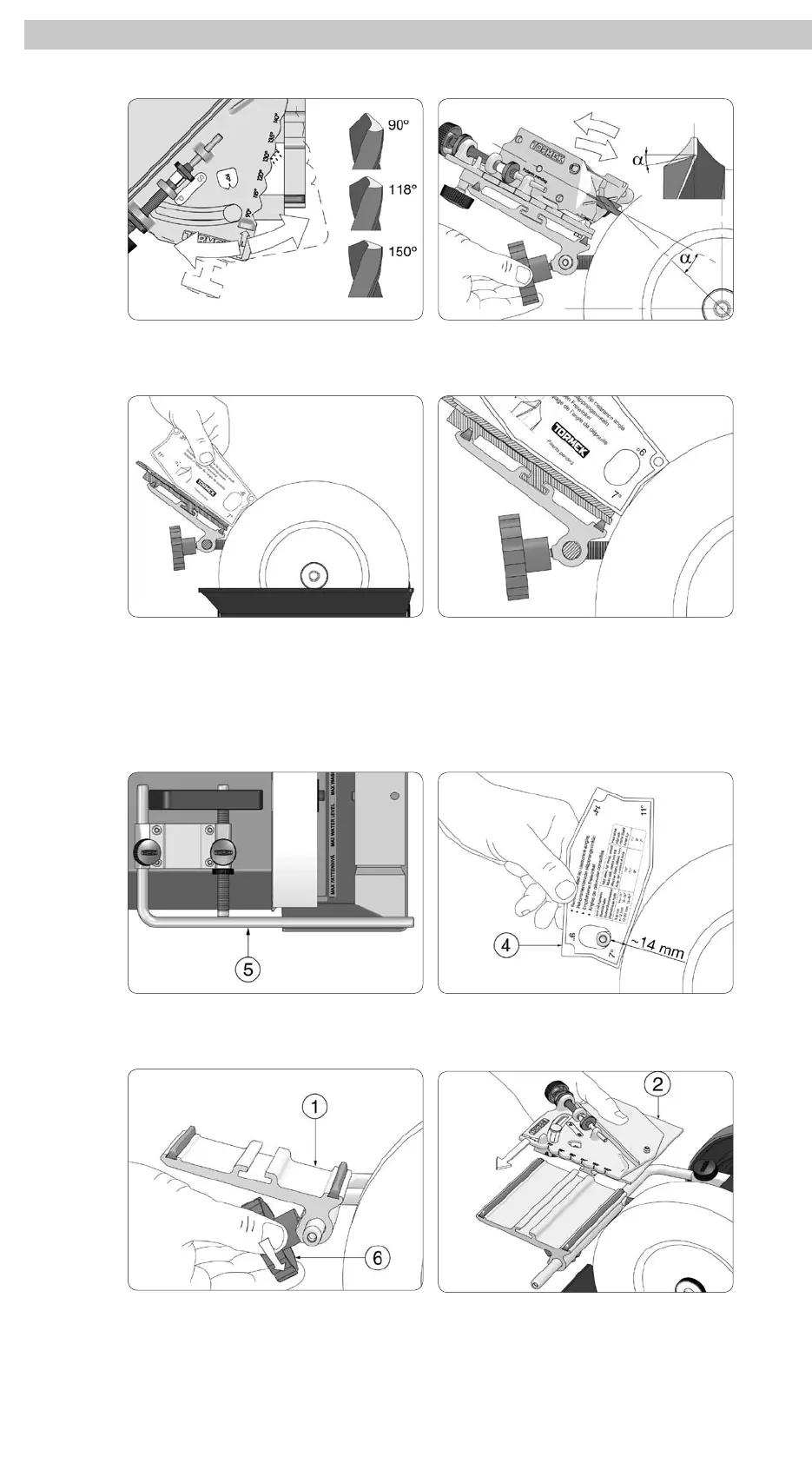

The point angle can be set at any angle
by turning the guide. The jig copes with
all point angles from 90° to 150°.
The clearance angle (α) is set by tilting
the base. It can be set at 7°, 9°, 11° or
14°.
With the Setting Template you set the selected lip clearance angle. The picture
shows 7°. The Setting Template works on any grindstone diameter.
Mount the Grinding Attachment
Mount the Universal Support
horizontally (5).
Lock it on a distance of approx. 14 mm
(
9/16
") from the stone. The template gives
you the right distance.
Slide the Base Plate (1) onto the
Universal Support and lock it
temporarily with the wheel (6).
Slide the Guiding Plate (2)
into the base plate.
