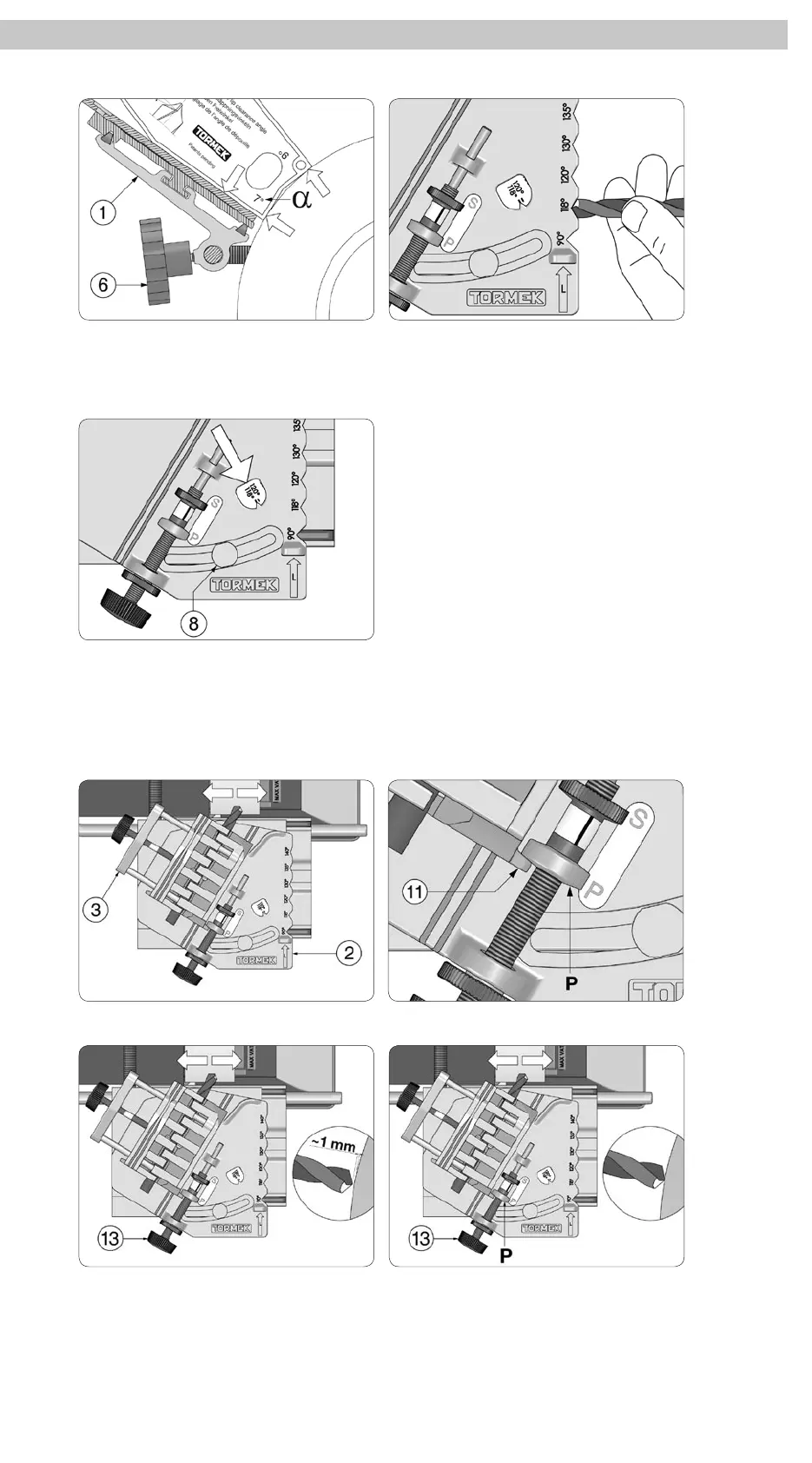

The clearance angle, α. Here 7°.
Tilt the Base (1) so that both corners
of the Setting Template touch the grind-
stone. Lock it securely with the wheel (6).
The point angle. Measure the existing
point angle in the grooves on the Guide
or select the angle which is most
suitable for the job.
Set the guide on the selected point
angle and lock with the wheel (8).
Set the cutting depth to zero by adjust-
ing the stop P towards the grindstone
until you hear the drill lightly touching
the grindstone. Stop the machine.
Grind the Primary Facets
Place the Drill Holder (3) on the guide (2) so that the lug (11) touches the stop P.
Adjust the setting screw (13) so that
the drill is approx. 1 mm (0.04") from
the grindstone. Start the machine.
