40

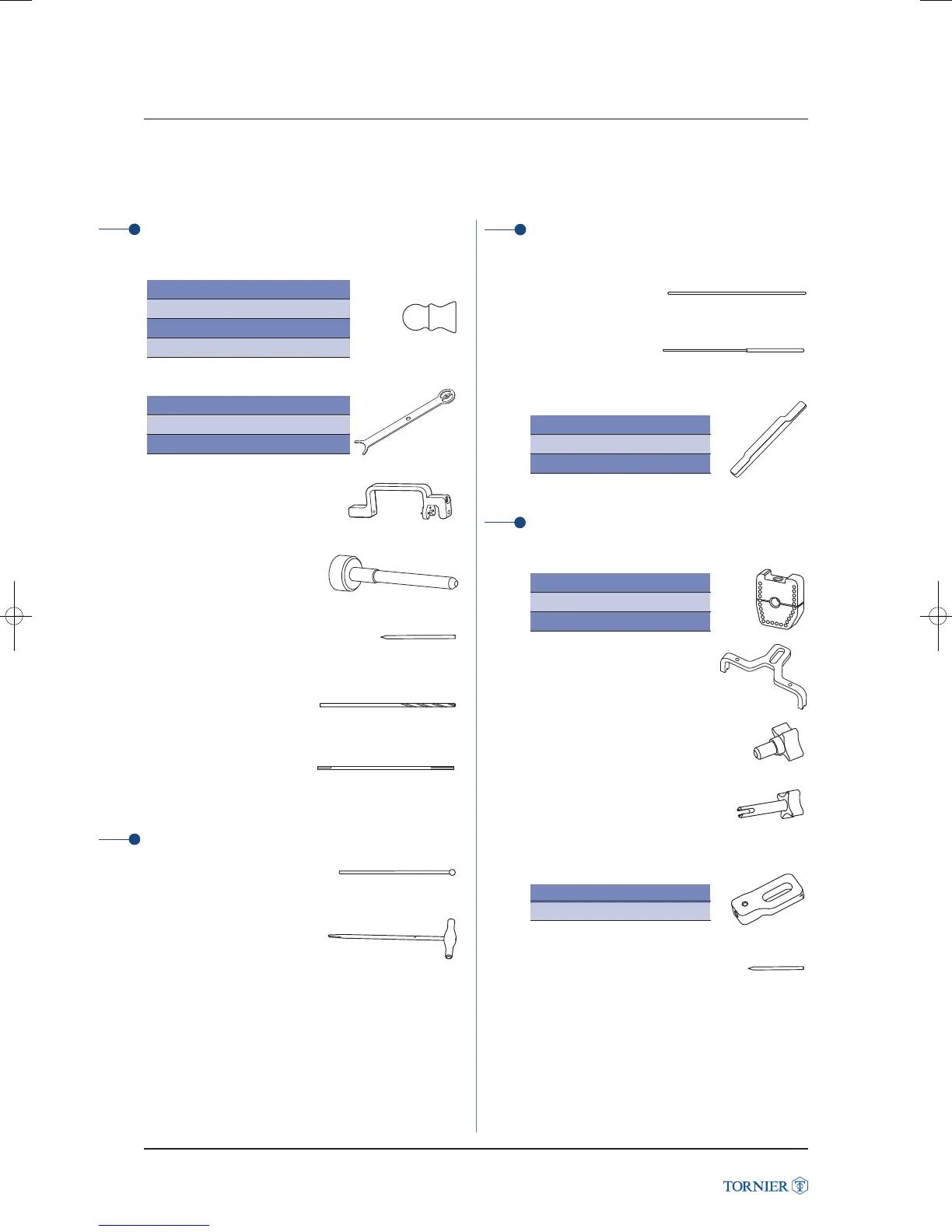

INSTRUMENTATION
INSTRUMENTATION
Drilling of flexion / extension axis
Anatomical spool
Small size Ref. MKY032
Medium size Ref. MKY034
Large size Ref. MKY036
Large + Ref. MKY138
Capitellum radii gauge
Small size Ref. MKY002
Medium size Ref. MKY004
Large size Ref. MKY006
Guide
of flexion/extension axis
Ref. MKY001
Drill of flexion/extension
axis
Ref. MKY119
Stabilization pin
length 110 mm - Ø 3
Ref. MJU051
Drill bit for flexion/
extension axis - Ø 3
Ref. MKY061
Reamer - Ø 3
Ref. MDS460
Humeral diaphysis drilling
Burr - Ø 6
Ref. MKY058
Humeral diaphysis
reamer - Ø 6
Ref. MKY007
Offset determination
Axis - Ø 2,8 L180 flexion/extension
Ref. MKY018
Humeral diaphysis axis
Ref. MKY019
Offset determining gauge
Small size Ref. MKY008
Medium size Ref. MKY009
Large size Ref. MKY010
Humeral trochlea cut
Humeral trochlea cutting block
Small size Ref. MKY012
Medium size Ref. MKY013
Large size Ref. MKY014
Humeral trochlea
cutting guide support
Ref. MKY015
Assembly screw for
humeral trochlea cut
Ref. MKY016
Diaphysis aiming guide
Ref. MKY017
“No trochlea” humeral
cutting guide support
Right side Ref. MKY059
Left side Ref. MKY060
Stabilization pin
Ø 3 - Length 55 mm
Ref. MKY062
Latitude Elbow Prosthesis
Latitude Elbow Prosthesis Surgical Technique UCLT101
TO LATITUDE INT UCLT101.qxd:Mise en page 1 7/07/10 15:01 Page 39
