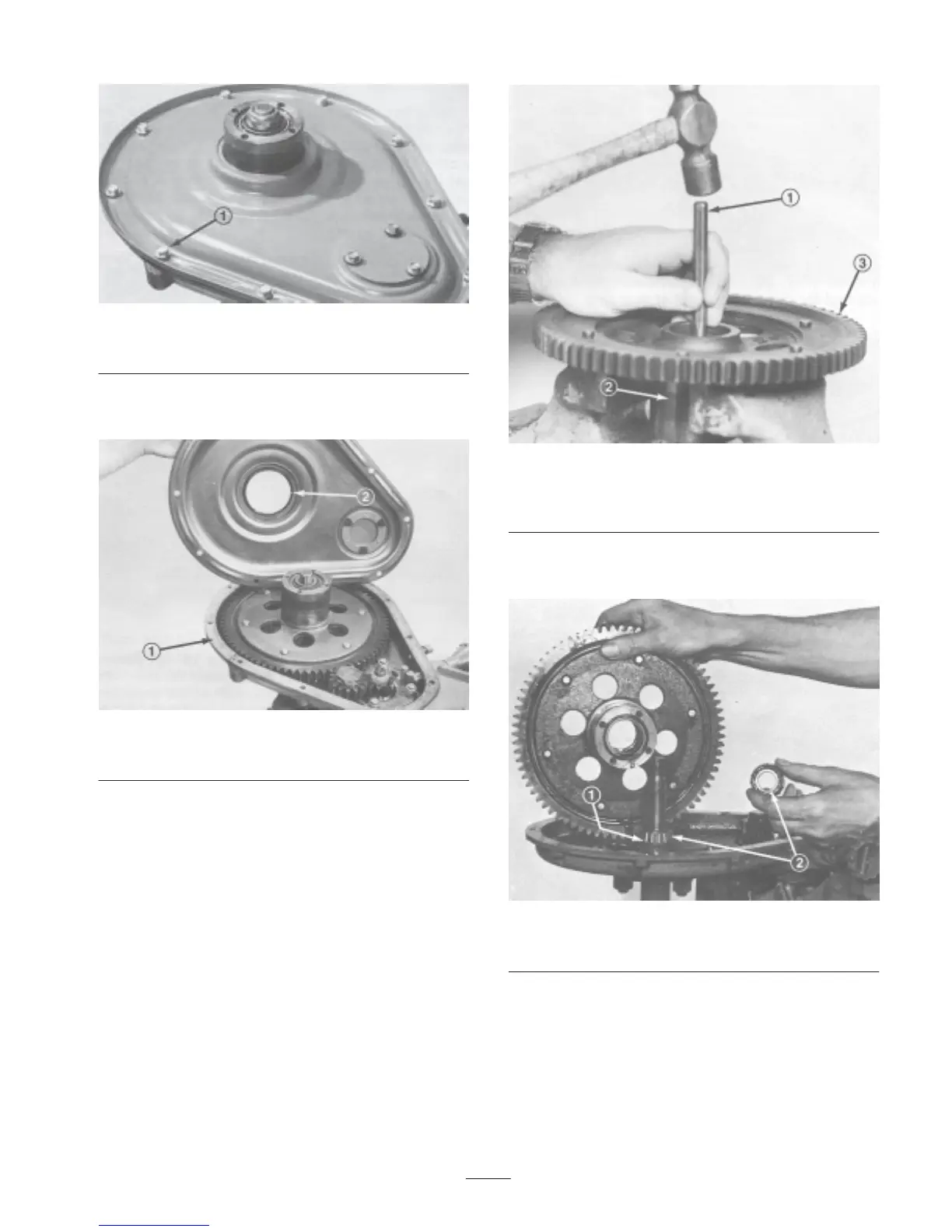

Figure 18
1. Mounting capscrews
5. Separate cover from gear case and allow oil to drain.
Remove cover and discard gear case gasket (Fig. 19).
Figure 19
1. Gasket 2. Double lip seal
6. Remove double lip seal (Fig. 19) from cover if worn or
damaged. The ring gear hub and gear assembly can be
removed from axle shaft as soon as gear case cover is
removed.
7. Use a drift pin punch to remove bearing cups from hub
(Fig. 20).
Note: Access is provided in the bore for drift pin punch.
Figure 20
1. Drift pin punch
2. Bearing cups
3. Hub
8. Remove inner cone and O–ring from axle shaft
(Fig. 21).
Figure 21
1. O–ring 2. Bearing cones
9. To prevent the reel from turning, place a wooden block
between reel blades and axle shaft.
