Toro 04042 User Manual

44 pages

To Next Page

To Next Page

Page #1 background image

Loading...

Page #1 background image

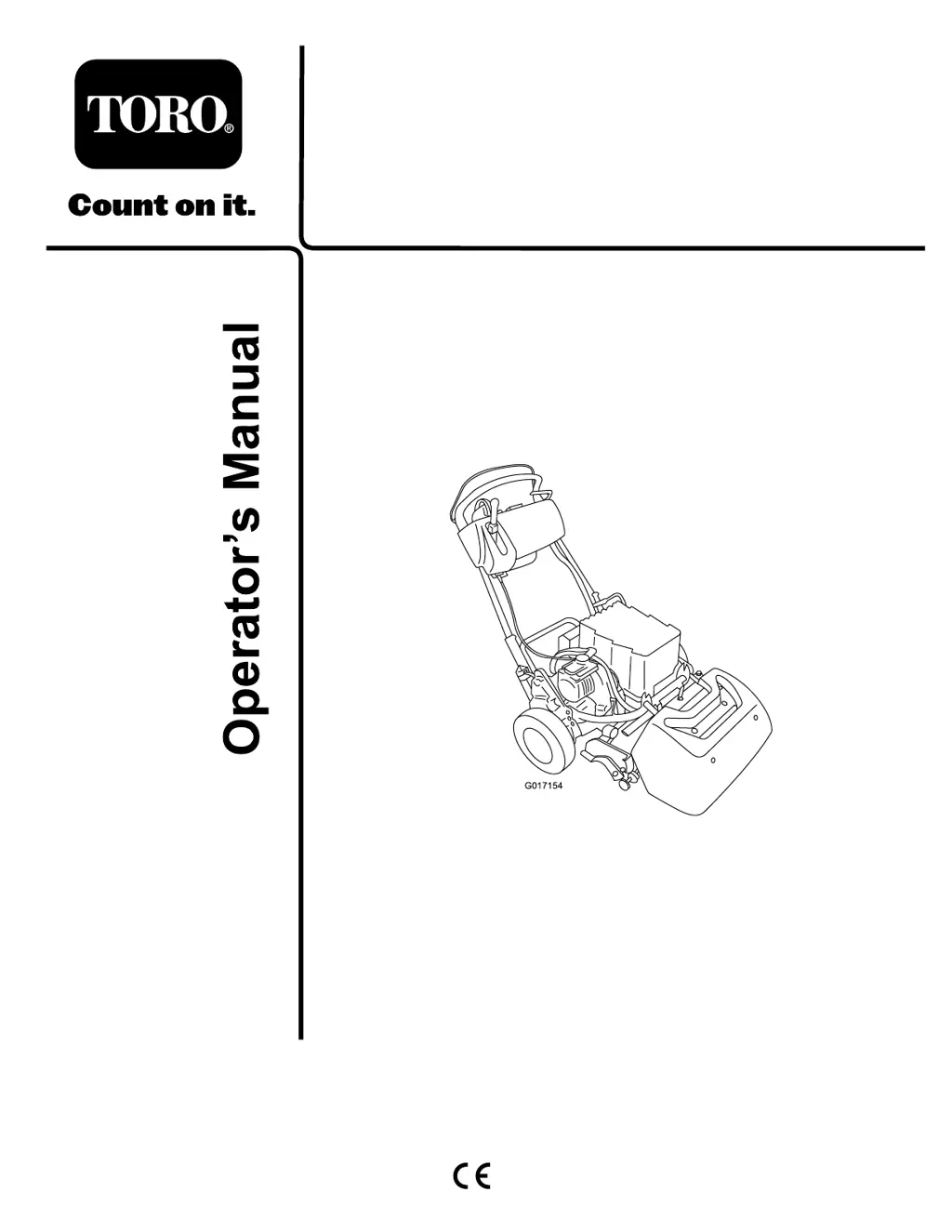

FormNo.3389-707RevA

Greensmaster

®

eFlex

®

1800or

2100TractionUnit

ModelNo.04042—SerialNo.315000001andUp

ModelNo.04043—SerialNo.315000001andUp

G017154

Registeratwww.Toro.com.

OriginalInstructions(EN)

*3389-707*A

Table of Contents

Other manuals for Toro 04042

Diagnostic Manual136 pages

Service Manual312 pages

Installation Instructions20 pages

Questions and Answers:

R
Richard HarrisonAug 9, 2025
Why won't my Toro 04042 Lawn Mower InfoCenter start up?
- A
  Annette PollardAug 9, 2025
  If the InfoCenter on your Toro Lawn Mower doesn't start, first ensure the key switch is in the START position. If that doesn't work, check if the lithium battery pack is properly connected to the machine wire harness and that the battery pack is charged. Also, inspect the machine fuses (F1-1 (30 A) or F1-2 (3 A)) and the lithium battery pack fuse for any damage, replacing them if necessary. If all else fails, the key switch, main contactor, wire harness connections, lithium battery pack or the TEC may be damaged and require checking and repairing or replacement.
H
Heather JonesAug 15, 2025
Why is the traction circuit in my Toro 04042 Lawn Mower not working?
- M
  Meghan MitchellAug 15, 2025
  If the traction circuit on your Toro Lawn Mower is inoperative, use the InfoCenter Diagnostics screen to check the traction switch, speed control potentiometer, and parking brake latch switch operation. Adjust or replace these components if necessary. Also, check the electrical connections and repair the wire harness if there are loose or damaged wires. Finally, check the electric motor and circuit wires and repair if necessary.
V
vdavisAug 19, 2025
What to do if the cutting unit circuit of my Toro Lawn Mower is not working?
- B
  benjaminchavezAug 19, 2025
  If the cutting unit circuit in your Toro Lawn Mower is inoperative, use the InfoCenter Diagnostics screen to check the reel engage switch operation and adjust or replace it if necessary. Also, check the electrical connections and repair the wiring if necessary. Finally, check the electric motor and circuit wires and repair if necessary.
C
Colin WhiteAug 25, 2025
What to do if my Toro Lawn Mower is inoperative and the InfoCenter shows a fault?
- S
  Seth LewisAug 25, 2025
  If your Toro Lawn Mower is inoperative and the InfoCenter power light indicates a fault, it means the controller has detected a system fault. First, try restarting the machine to see if the operation returns to normal. If the problem persists, use the Faults screen information in the InfoCenter section to help identify the source of the problem.
A
Ann NelsonAug 30, 2025
How to troubleshoot the EZ Turn system on my Toro 04042 Lawn Mower?
- C
  Christie GarciaAug 30, 2025
  If the EZ Turn system on your Toro Lawn Mower isn't working, begin by inspecting the electrical connections of the EZ Turn circuit wire harness for any loose or damaged wires and repair the wiring as necessary. Next, use the InfoCenter Diagnostics screen to check the EZ Turn switch and sensor operation, replacing or adjusting them if needed. Lastly, ensure the cutting unit pitch arms are not binding on the side plate bushings; if they are, clean the pitch arms and bushings.
G
Gina ChanSep 3, 2025
What to do if my Toro 04042 Lawn Mower operates but the InfoCenter display is not working?
- K
  Kevin CollinsSep 3, 2025
  If your Toro Lawn Mower operates but the InfoCenter display is not working, check the electrical connections and wires to the InfoCenter display for any looseness or damage, and repair the wiring as necessary. If the connections are secure, the InfoCenter display might be damaged and require replacement.
