16

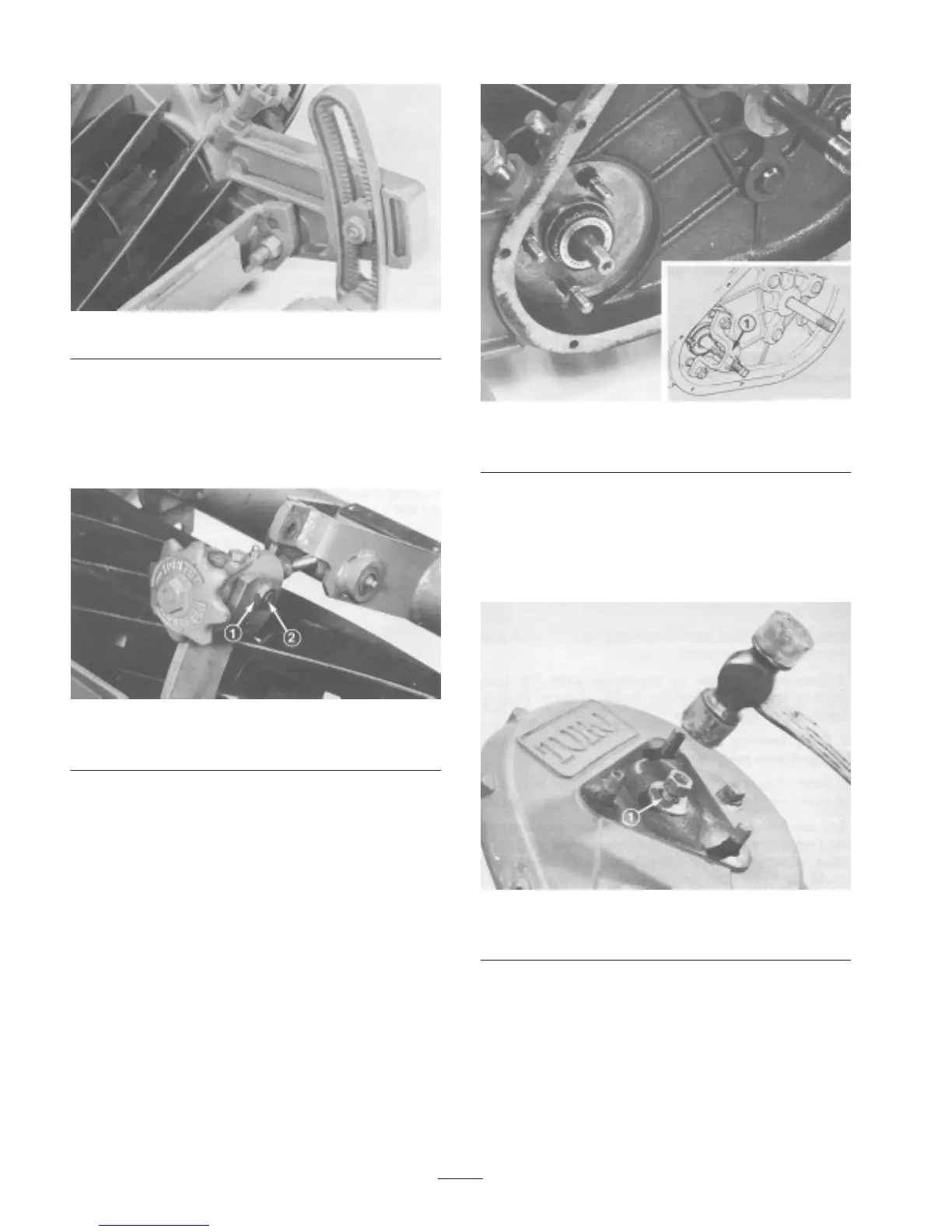

Figure 29
17. Loosen locknuts allowing removal of Allen head set
screws securing bedbar to bedbar retainer (Fig. 30).
Note: When reinstalling bedbar to bedbar retainer, center
bedbar retainer, tighten setscrews until seated and tighten
locknuts.
Figure 30
1. Locknuts 2. Allen head set screws
18. Remove pivot bolts and nuts securing bedbar assembly
to gear cases (Fig. 29).
19. Remove three nuts securing each gear case to cross
tube. Using a soft head mallet, drive gear cases off cross
tube.
20. Bearing and gear case will now slide off left end of reel
shaft.
Note: To aid in the removal of reel bearings, a Bearing
Removal Tool, Part No. 49–8060, is available from your
Authorized Toro Distributor.
21. Remove bearing and gear case from right end of reel
shaft (Fig. 31).
Figure 31
1. Bearing removal tool, part no. 49–8060
Note: Remove any rust from cross tube shaft to prevent
binding. Clean gear case with solvent. If studs have been
removed, apply Permatex No. 2 to threads.
22. Remove stub axle shaft from gear case by loosening
locknut and tapping with soft head mallet (Fig. 32).
Figure 32
1. Stub axle shaft
