Toro 07411EX Service Manual

Page 6 -- 24 Workman GTX GasolineChassis

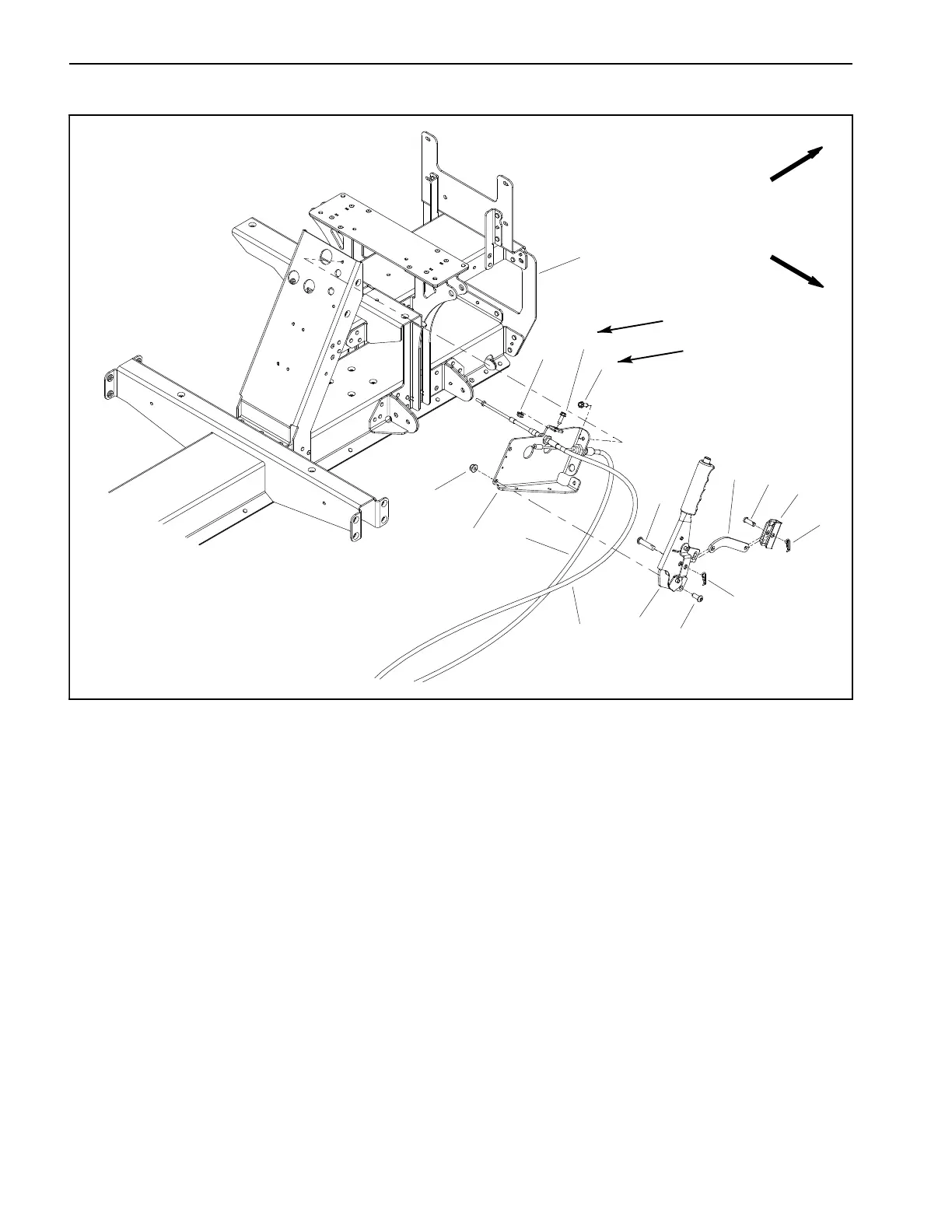

Parking Brake Cables and Lever Assembly
1. Parking brake lever
2. Clevis pin
3. Hair pin (2 used)
4. Parking brake link
5. Clevis pin
6. Cable equalizer bracket
7. Button head screw (2 used)
8. Flange nut (2 used)
9. Parking brake mount
10. Parking brake cable (2 used)
11. Shift cable
12. Washer head screw (3 used)
13. Flange nut
14. Front frame
Figure 21
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
4
3
14
200 to 230 in--lb
(23 to 25 N --m)
12
40 to 45 in--lb
(4.5 to 5 N--m)
NOTE: The parking brake assembly includes the dash
mounted parking brake lever, t wo (2) identical brake ca-
bles and parking brake actuators in the rear brake
calipers.
