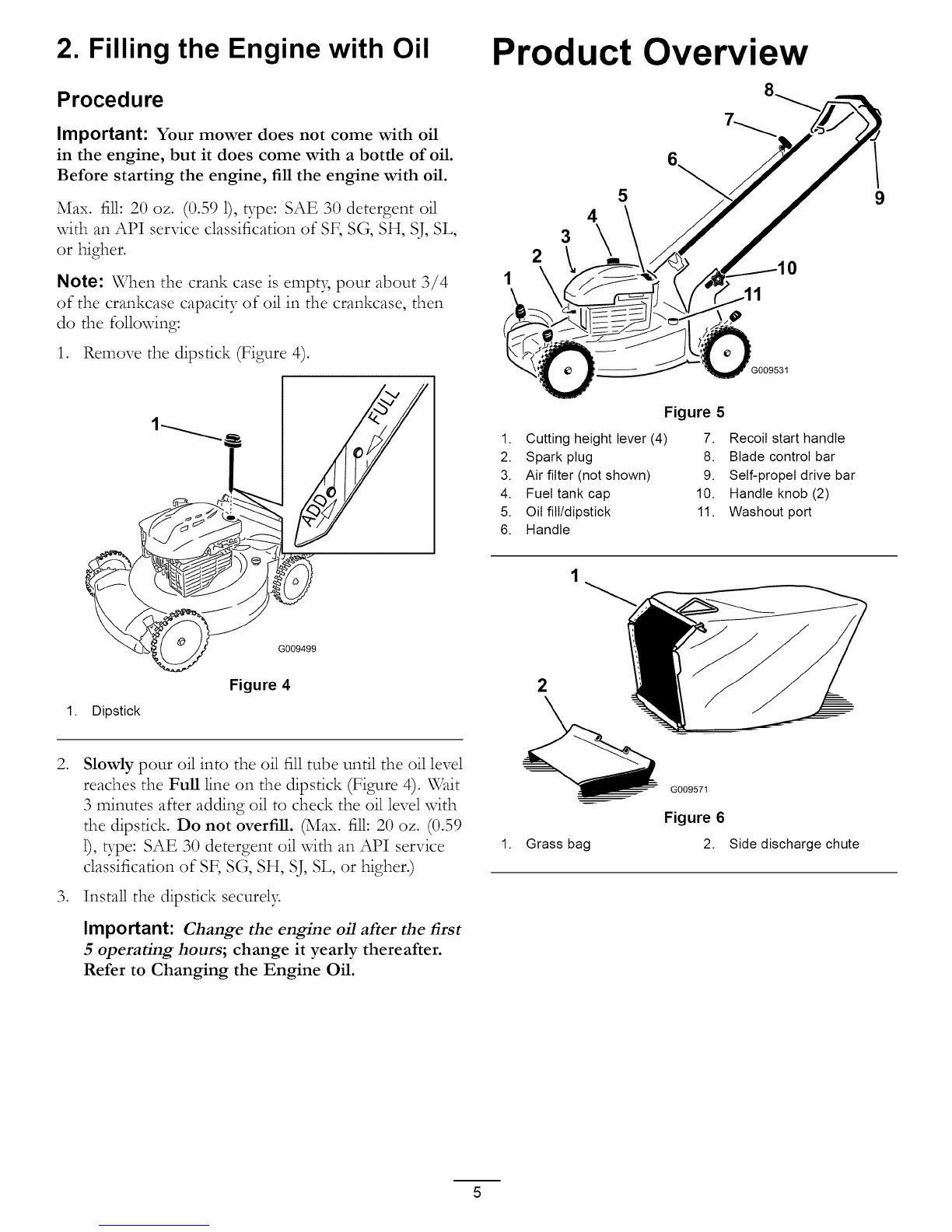

2. Filling the Engine with Oil Product Overview
Procedure
Important: Your mower does not come with oil
in the engine, but it does come with a bottle of oil.
Before starting the engine, fill the engine with oil.
Max. fi11:20 oz. (0.59 1), type: SAE 30 detergent oil
with an API service classification of SF, SG, SH, SJ, SL,
or higher.
Note: When the crank case is empb, pour about 3/4
of the crankcase capacity of oil in the crankcase, then
do the following:
1. Remove the dipstick (Figure 4).
Figure 4
1. Dipstick
,
Slowly pour oil into the oil fill tube until the oil level
reaches the Full line on the dipstick (Figure 4). Wait
3 minutes after adding oil to check the oil level with
the dipstick. Do not overfill. (Max. fi11:20 oz. (0.59
1), type: SAE 30 detergent oil with an API service
classification of SF, SG, SH, SJ, SL, or higher.)
3. Install the dipstick securel>
Important: Change the engine oil after the first
5 operating hours; change it yearly thereafter.
Refer to Changing the Engine Oil.
4
3\
2
5
Figure 5
1. Cutting height lever (4)
2. Spark plug
3. Air filter (not shown)
4. Fuel tank cap
5. Oil filI/dipstick
6. Handle
7. Recoil start handle
8. Blade control bar
9. Self-propel drive bar
10. Handle knob (2)
11. Washout port
2
1. Grass bag
G00957I
Figure 6
2.
Side discharge chute
9
