InstallingtheRearWheel
1.Cleanthepiniongear(Figure5).
Important:Inspectthepiniongearforwear;
replaceitifnecessary.Awornpiniongearwill
causeprematurewearonthewheelgear.

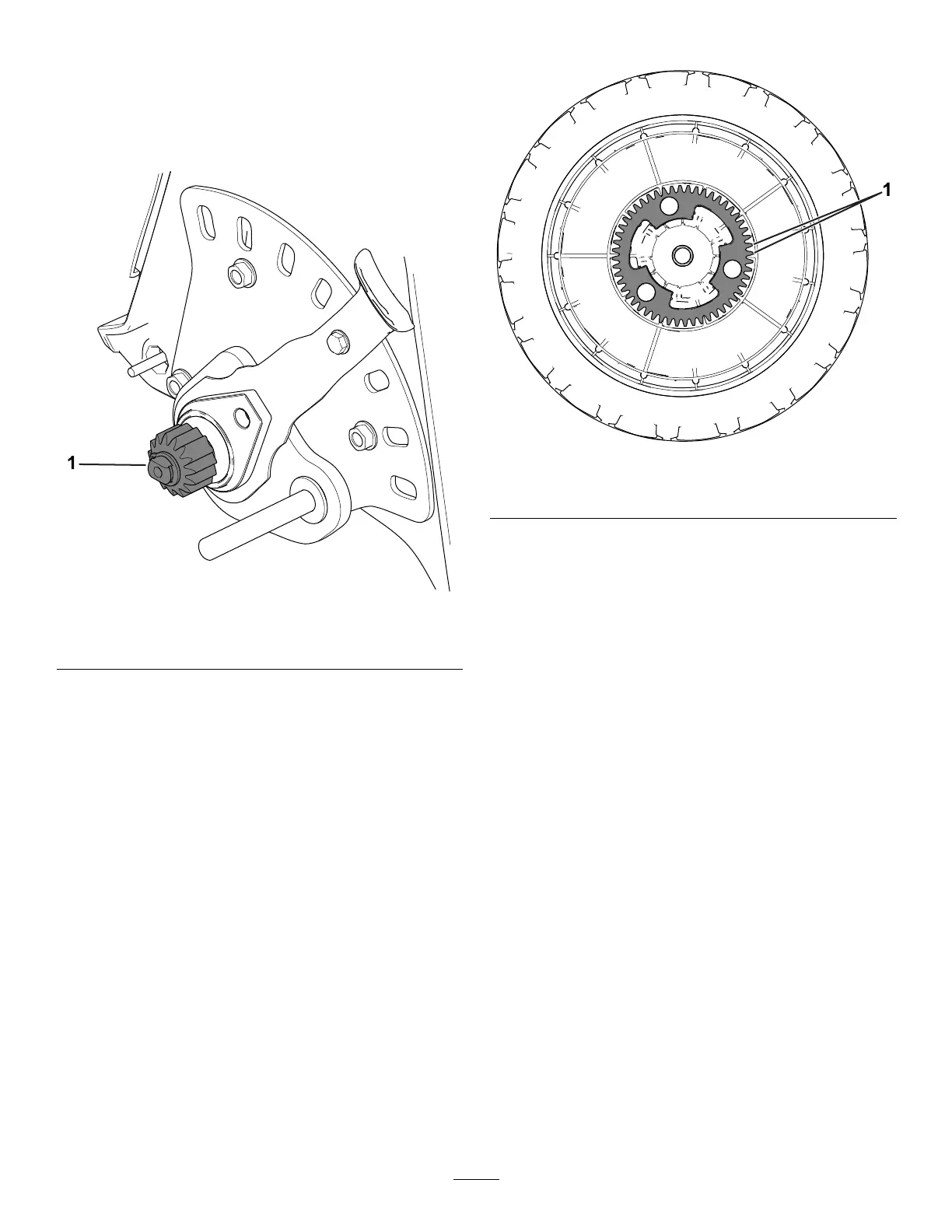

g189235
Figure5
1.Piniongear
2.Applyanti-seizetothewheelgearteeth(Figure6).
g189234
Figure6
1.Wheelgearteeth
3.Usethebolt(5/16x3/4inch)tosecuretheretainerto
theheight-of-cutlever(Figure4).
4.Torquetheboltto20to23N∙m(15to16ft-lb).
5.Installthewheelcoverandwheelassembly(Figure3).
6.Usethepreviouslyremovednuttosecurethewheel
totheaxlebolt(Figure2).
