(%%* %)'(10 Ċ Part No. 11-0440. 50 lb (23 kg).
%!/ %)'(1 )1 Ċ Part No. 24-5780. 70 lb (31.8 kg).
%)'(1 )1 *" Ċ Part No. 92-8763.
)/% (!),0 Ċ Part No. 11-0390.
1!,$!/$ %!1 )1 Ċ Model No. 30769.
%*25% %!1 )1 Ċ Model No. 30772.
Refer to Specifications section of individual Cutting
Unit Operator's Manuals for cutting unit options.
Use this chart as a checklist to assure all parts have been received. Without these parts, total set-up cannot
be completed.
Steering Wheel 1
Nut 1 Install Steering Wheel.
Screw 1
Cap 1
Manual Tube 1
R-Clamp 2 Install on right underside of seat.
Capscrew 2
Washer 2
Roll Pin 1
Capscrew 5/16 Ć 18 x 1-3/4 in. 2 Secure universal shaft to implement.
Locknut 5/16 Ć 18 2
Cylinder Pin 2 Secure deck lift arms to lift cylinders.
Cotter Pin 3/16 x 1-1/2 in. 4
Brake Return Springs 2
Pivot Pin Assemblies 2 Mount deck lift arms.
Cotter Pin 1/8 x 1-1/4 in. 2
Operator's Manual (Traction Unit) 2
Parts Catalog 1
Registration Card 1 Fill out and return to Toro
2,)3%/0!* 0(!&1 )0 !11!#(%$ 1- 1/!#1)-, 2,)1
&/!+% 4)1(-21 &)/01 /%6
+-3),' 2,)3%/0!* 0(!&1 -/ #-2.*),' )1 1- ! 02)16
!"*% )+.*%+%,1

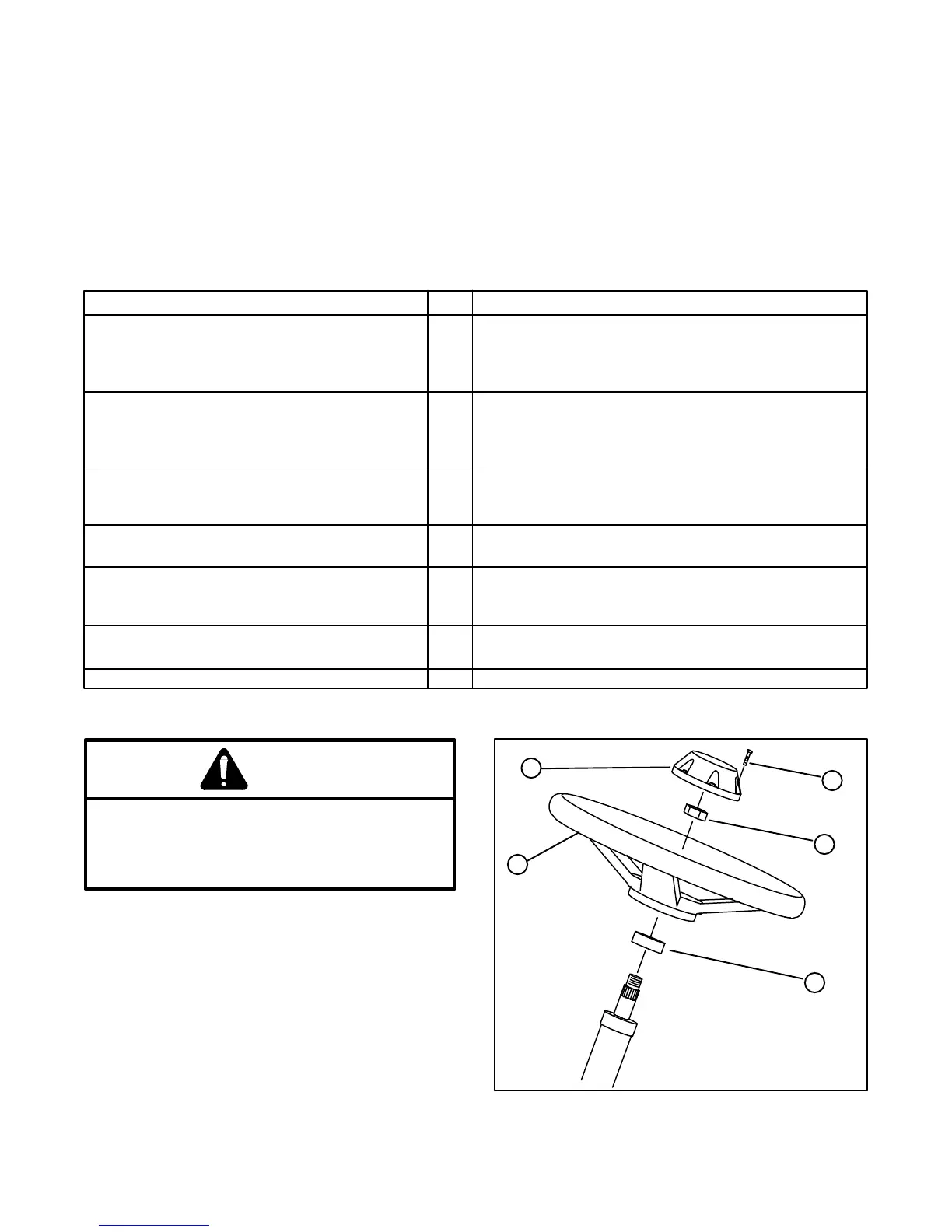

Remove steering wheel from seat plate. Remove
screw and cap from steering wheel (Fig.1).
Remove jam nut from steering shaft. Make sure
foam seal is on steering shaft (Fig.1). Slide steering
wheel onto steering shaft.
Secure steering wheel to shaft with jam nut and
tighten it to 10-15 ft-lb.
Mount cap to steering wheel with screw.
)'2/%
1%%/),' 4(%%*
!+ ,21
!.
#/%4
-!+ 0%!*
