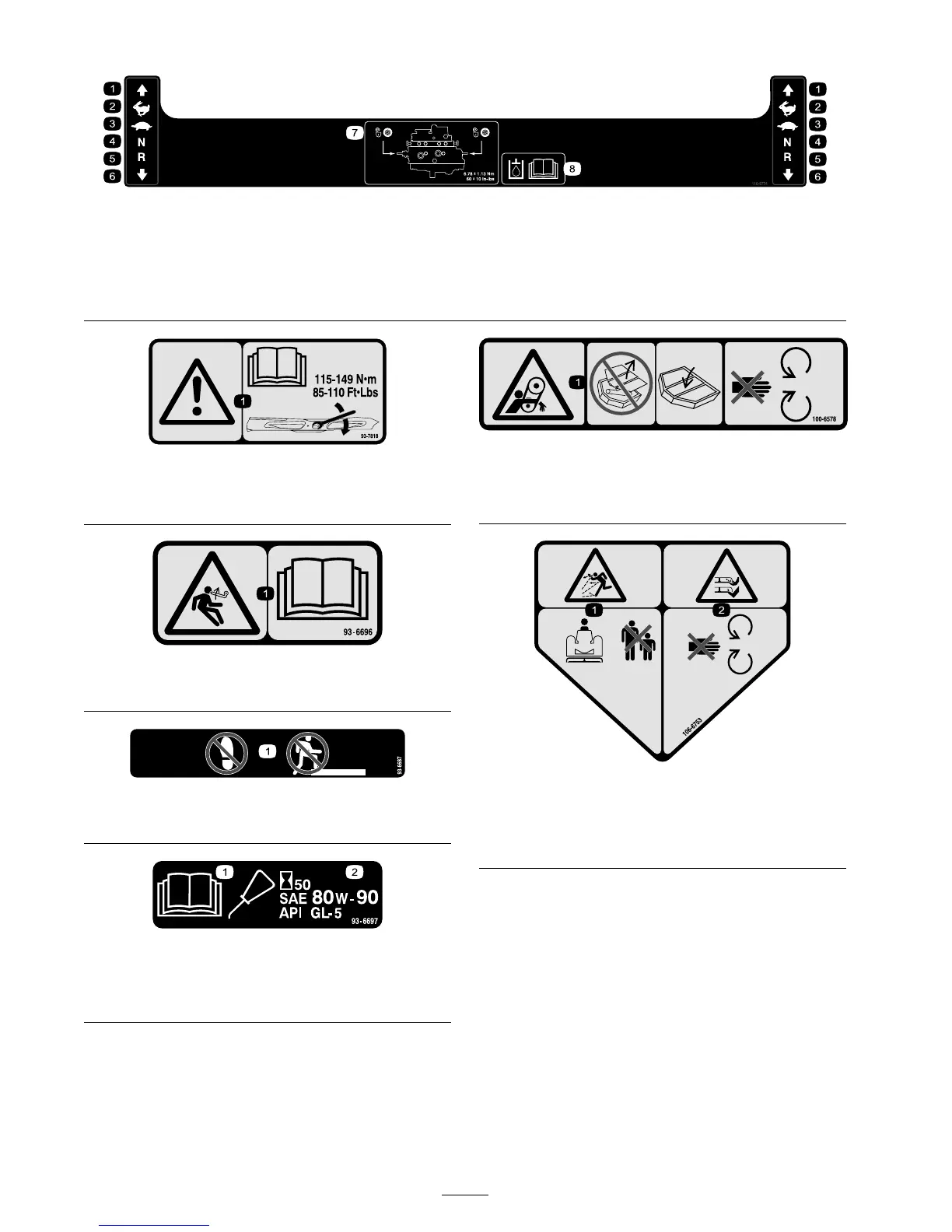

110-9774
1. Forward 3. Slow
5. Reverse
7. Tow valve location; torque
the tow valves to 6.78 ± 1.13
N ⋅ m (60 ± 10 in-lbs).
2. Fast
4. Neutral 6. Backward
8. Read the Operator’s Manual
for more information on the
hydraulic oil.
93-7818
1. Warning—read the Operator’s Manual for instructions on
torquing the blade bolt/nut to 115-149 N•m (85-110 ft-lb).
93-6696
1. Stored energy hazard—read the Operator’s Manual .
93-6687
1. Do not step here.
93-6697
1. Read the Operator’s
Manual .
2. Check the oil every 50
hours. Add SAE 80w-90
(API GL-5) oil if needed.
100-6578
1. Entanglement hazard, belt—do not operate the machine
with the shields or guards removed; always keep the shields
and guards in place; stay away from moving parts.
106-6753
1. Thrown object hazard—keep bystanders a safe distance from
the machine.
2. Cutting/dismemberment hazard of hand or foot, mower
blade—stay away from moving parts.
