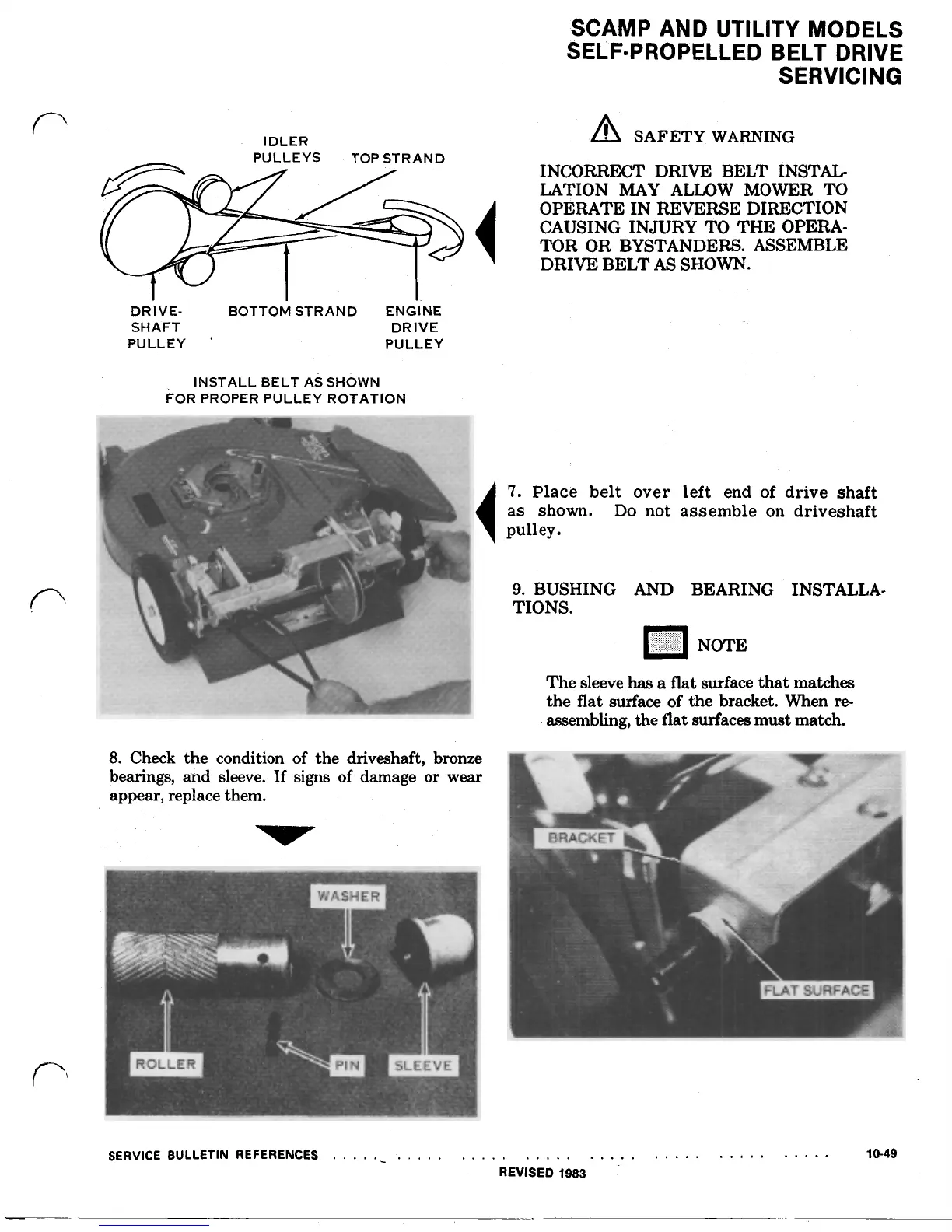

IDLER
PULLEYS TOP STRAND
SCAMP AND UTILITY MODELS
SERVICING
SELF-PROPELLED BELT DRIVE
SAFETY
WARNING
INCORRECT DRIVE BELT INSTAL-
LATION MAY ALLOW
MOWER
TO
OPERATE IN REVERSE DIRECTION
TOR OR BYSTANDERS. ASSEMBLE
DRIVE BELT
AS
SHOWN.
CAUSING INJURY
TO
THE OPERA-
DRIVE- BOTTOM STRAND ENGINE
SHAFT DRIVE
PULLEY PULLEY
INSTALL BELT AS SHOWN
FOR PROPER PULLEY ROTATION
8.
Check
the condition of the driveshaft, bronze
bearings, and sleeve. If
signs
of damage or
wear
appear, replace them.
7.
Place belt over left end of drive shaft
as shown.
Do
not assemble
on
driveshaft
pulley.
9.
BUSHING AND BEARING INSTALLA-
TIONS.
NOTE
The sleeve
has
a
flat surface that matches
the flat surface
of
the bracket. When re-
assembling, the flat surfaces must match.
