Toro 51850 - Chain Brake and Oil Flow Checks; Checking the Chain Brake; Checking Bar and Chain Oil Flow

CheckingtheChainBrake
ServiceInterval:Beforeeachuseordaily
Aftereachbatterydraincycle
1.Placethechainsawonaatsurfaceand
removethebatterypack;refertoRemovingthe
BatteryPack(page17).
2.Engagethechainbrakebymovingthechain
brakeforwardtotheSTOPposition(Figure28).

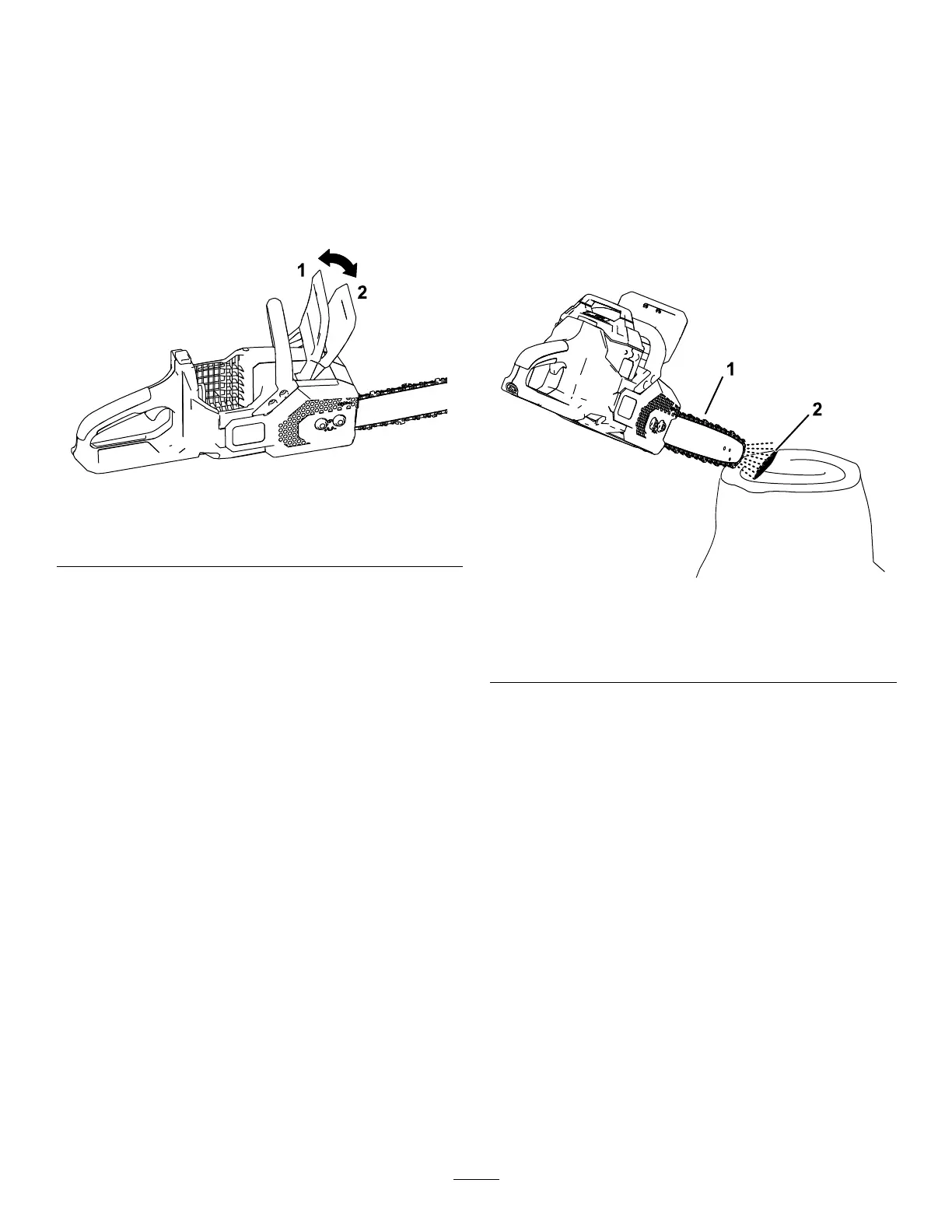

g315840
Figure28
1.Chainbrake(OPERATING
position)
2.Chainbrake(STOP
position)
3.Gripthechainwithaglovedhandandattempt
topullitaroundtheguidebar;thechainshould
notmovearoundtheguidebar.Ifitdoes,take
thechainsawtoanAuthorizedServiceDealer
forrepair.
4.Disengagethechainbrakebymovingthe
chainbrakerearwardtotheOPERATINGposition
(Figure28).
5.Gripthechainwithaglovedhandandattempt
topullitaroundtheguidebar;thechainshould
movearoundtheguidebar.Ifitdoesnot,take
thechainsawtoanAuthorizedServiceDealer
forrepair.
CheckingtheFlowofBar
andChainOil
ServiceInterval:Beforeeachuseordaily
1.Preparetousethechainsaw;refertoBefore
UsingtheChainSaw(page10).
2.Toensurethatoilisowingtothechain,point
thenoseofthechainsawafewinchesfroma
surface(e.g.paper,cardboard,astump)and
runthechainsaw;youshouldbeabletoseea
lightsprayofoilonthesurface(Figure29).
g317663
Figure29
1.Runthechainsawafew
inchesfromasurface.
2.Iftheoilisowing,itwill
sprayoffthechainand
accumulate.
3.Ifoilisnotowing,ensurethatthereisoilinthe
tankandthattheareaunderthesidecoveris
clean;refertoCheckingtheOilLevelandAdding
BarandChainOil(page19)andServicingthe
GuideBar,Chain,andDriveSprocket(page22).
