/ 01&5&.3 #$$*%&.3#, 23#13*.( /' 3)& &.(*.&
6)*,& 0&1'/1-*.( -#*.3&.#.$& 2)43 &.(*.&
/'' #.% 1&-/5& +&7 '1/- *(.*3*/. 26*3$)
,2/ 04,, 6*1& /'' 20#1+ 0,4( *( #+&
241& 6*1& %/&2 ./3 $/.3#$3 0,4( #$$*%&.3#,,7
*(41&
" !
"

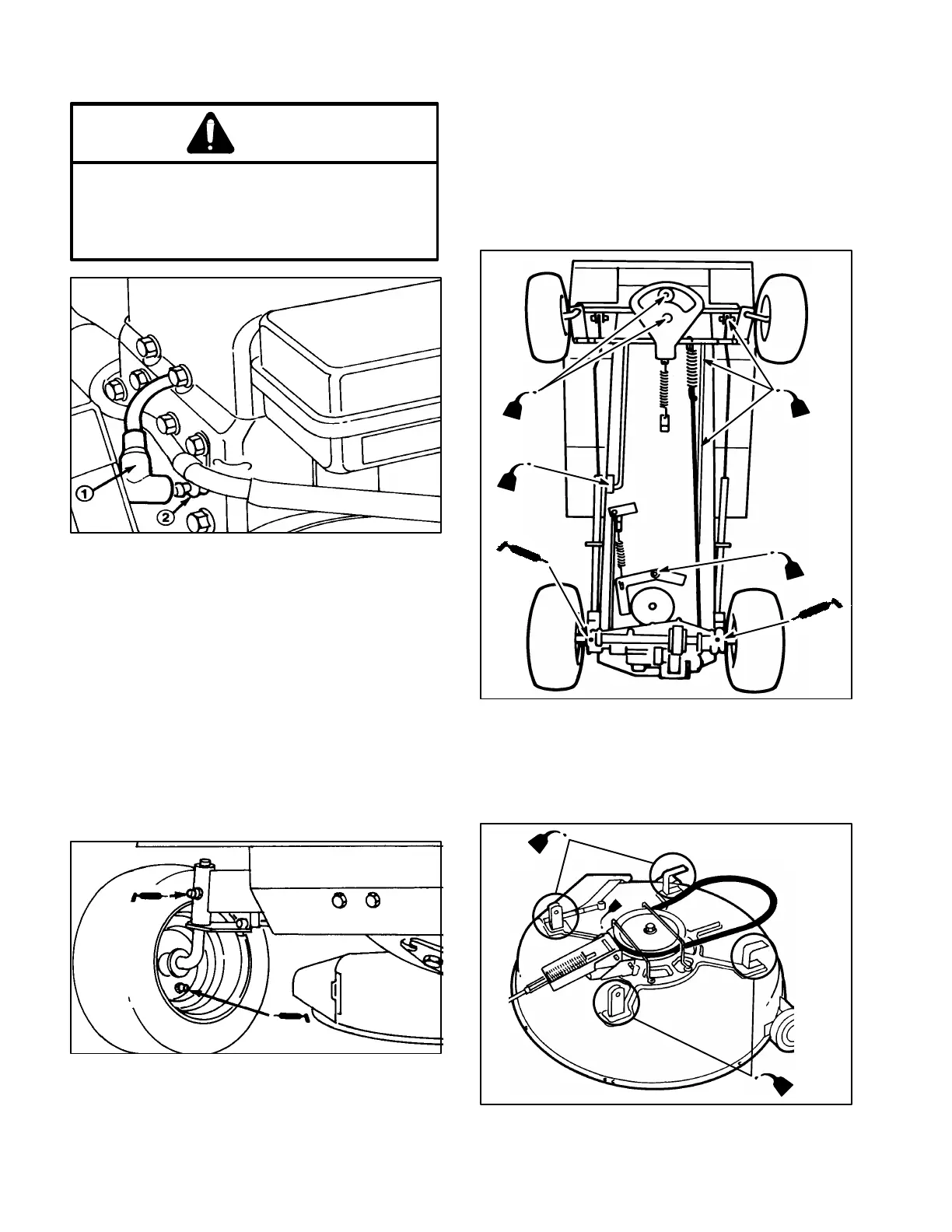

The front axle spindles and wheels must be lubriĆ
cated after every 25 hours of operation; lubricate
more frequently when conditions are dusty or sandy.
Wipe grease fittings (Fig. 12) with a clean rag. If
there is paint on front of fittings, scrape it off.
Grease front wheels and axle spindles with No. 2
general purpose grease (Fig. 12). Pump grease until
it oozes out the spindle. Wipe up any excess grease.
*(41&
Grease rear axles with one to two pumps of No.
2 general purpose grease. The zerks are located just
inside of the rear tires on the bottom of the transaxle
(Fig. 13).
The mechanical pivot points on the rider must be
oiled after every 25 hours of operation; lubricate
more frequently when conditions are dusty or sandy.
Oil pivot points of steering, drive, brake, clutch,
and deck engagement linkage with light oil (Fig. 13).
Wipe up any excess oil.
*(41&
773
Remove mower: refer to Removing / lnstalling
Cutting Unit, page 22.
Lubricate mower mounts (Fig. 14). Wipe up any
excess oil.
*(41&
Install mower: refer to Removing / lnstalling CutĆ
ting Unit, page 22.
