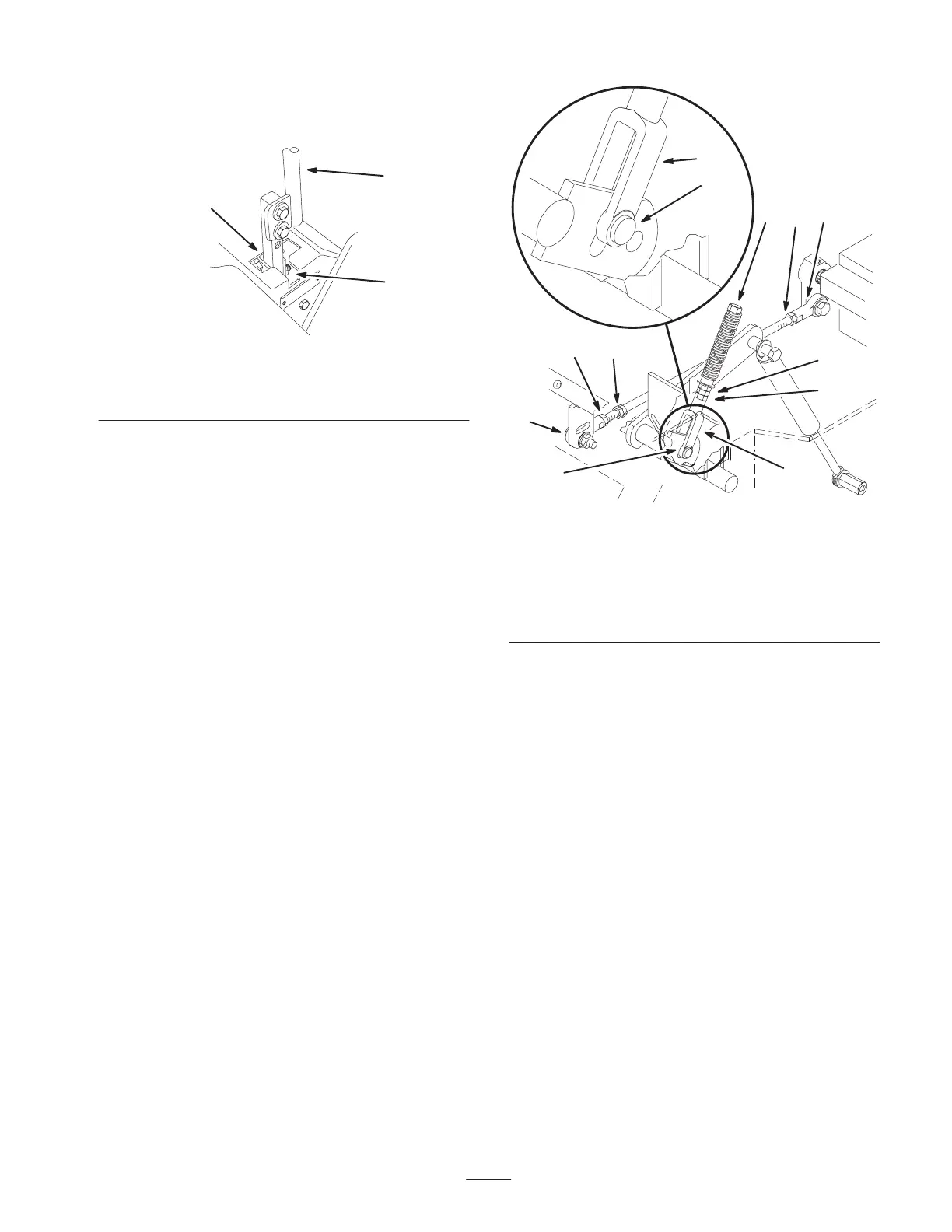

5. Check where the control lever is relative to notch in
console (Fig. 46). It should be centered allowing lever
to pivot outward to the neutral lock position.
2
m–6282
1
3
Figure 46
1. Neutral locked position
2. Control lever
3. Neutral potion
6. If adjustment is needed, loosen the nut and jam nut
against the yoke (Fig. 47).
7. Apply slight rearward pressure on the motion control
lever, turn the head of the adjustment bolt in the
appropriate direction until the control lever is centered
in neutral lock position (Fig. 46).
Note: Keeping rearward pressure on the lever will keep the
pin at the end of the slot and allow the adjustment bolt to
move the lever to the appropriate position.
8. Tighten the nut and jam nut (Fig. 47).
9. Repeat on the opposite side of unit.
m–4118
1
1
2
6
4 3
2
7
9
9
8
8
Figure 47
1. Clevis pin in slot
2. Nut
3. Nut—Left hand thread
4. Adjustment bolt
5. Pump rod
6. Double nuts
7. Jam nut
8. Yoke
9. Ball joint
