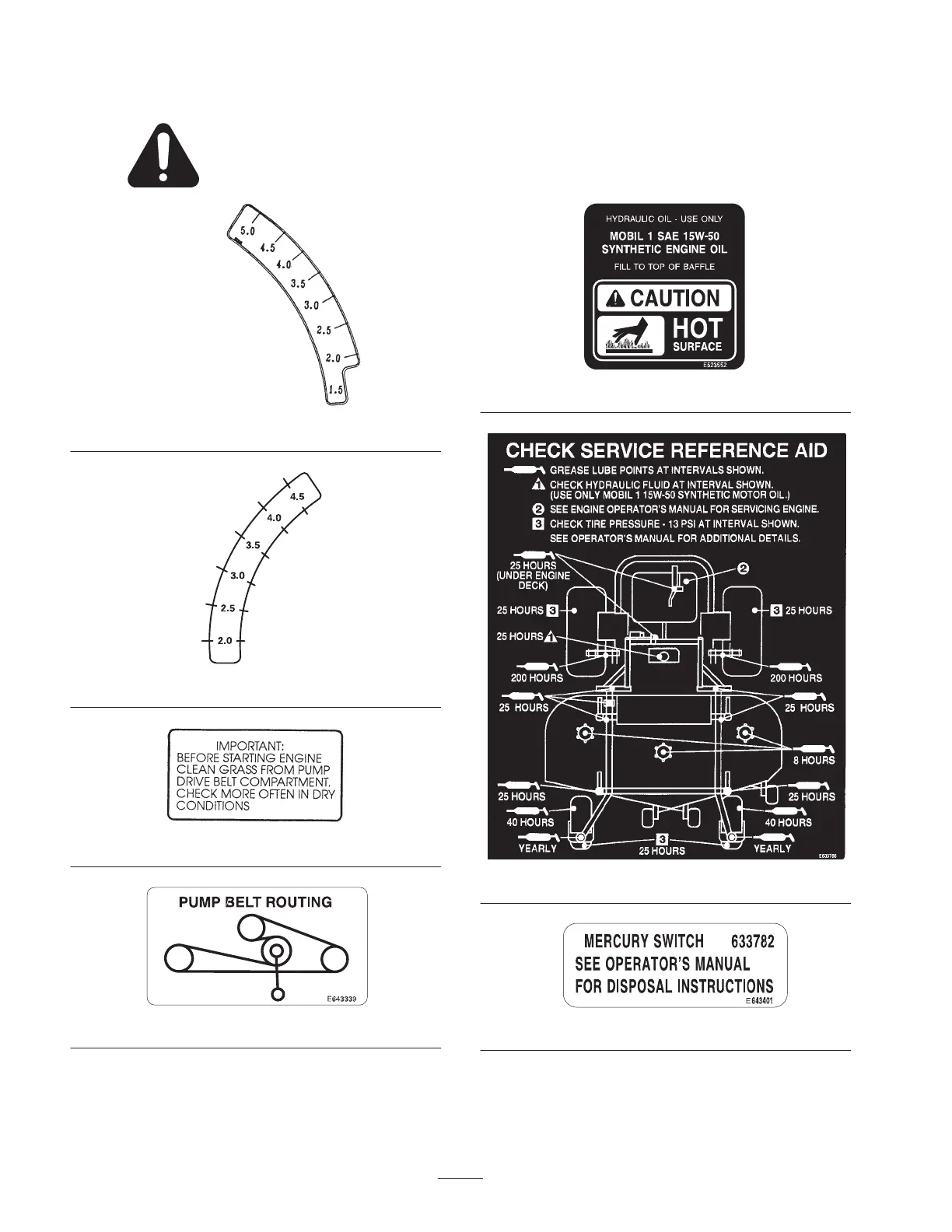

Safety and Instruction Decals
Safety
decals and instructions are easily visible to the operator and are located near any
area of
potential danger
. Replace any decal that is damaged or lost.
1-633345
1-633706
1-633462
1-643339
1-523552
1-633766
1-643401
7
9
Table of Contents
Table of Contents
2
Introduction
3
Safety
3
Safe Operating Practices
3
Slope Chart
6
Safety and Instruction Decals
8
Gasoline and Oil
13
Recommended Gasoline
13
Using Stabilizer/Conditioner
13
Filling the Fuel Tank
13
Check Engine Oil Level
13
Setup
14
Loose Parts
14
Installing Drive Wheels
14
Checking the Tire Pressure
14
Installing the Seat Retaining Rod
14
Installing the Motion Control Levers
15
Activating the Battery
15
Retaining Rod
15
Bolt, 5/16 X 1 Inch
15
Locknut, 5/16 Inch
15
Bolt, 3/8 X 1 Inch
15
Spring Washer, 3/8 Inch
15
Installing the Air Cleaner
16
Checking the Hydraulic Fluid
17
Greasing the Bearings
17
Checking the Side Discharge Chute
17
Checking the Level of the Mower
17
Checking the Engine Oil Level
17
Hose Clamp
17
Operation
18
Think Safety First
18
Controls
18
Operating the Parking Brake
19
Starting and Stopping the Engine
19
Operating the Power Take off (PTO)
20
Key
20
Important
20
Figure 19
20
The Safety Interlock System
21
Driving Forward or Backward
21
Stopping the Machine
22
Adjusting the Height-Of-Cut
22
Using the Lift Assist Lever
22
Adjusting the Anti-Scalp Rollers
23
Positioning the Seat
23
Pushing the Machine by Hand
23
Using a Rollover Protection System (ROPS)
24
Using the Side Discharge
24
Transporting Machines
24
Loading Machines
25
Using the Z Stand
25
Tips for Mowing Grass
26
Maintenance
28
Recommended Maintenance Schedule
28
Servicing the Cutting Blades
29
Servicing the Air Cleaner
31
Servicing the Engine Oil
32
Servicing the Spark Plug
33
Servicing the Fuel Filter
34
Servicing the Fuel Tank
34
Greasing and Lubrication
35
Greasing the Bearings
35
Cleaning the Cooling Systems
36
Checking the Tire Pressure
36
Checking the Wheel Hub Slotted Nut
36
Adjusting the Caster Pivot Bearing
37
Servicing the Hydraulic System
37
Adjusting the Handle Neutral
39
Setting the Hydraulic Pump Neutral
40
Adjusting the Tracking
41
Replacing the Pump Drive Belt
42
Adjusting the Parking Brake
42
Servicing the Fuse
42
Servicing the Battery
43
Leveling the Mower
45
Cleaning under the Deck
46
Inspecting Belts
46
Replacing the Deck Belt
46
Replacing the PTO Drive Belt
47
Replacing the Grass Deflector
48
Mercury Tilt Switch
49
Disposing the Mercury Tilt Switch
49
Wiring Diagram
50
Cleaning and Storage
51
Troubleshooting
52
The Toro Total Coverage Guarantee
56
