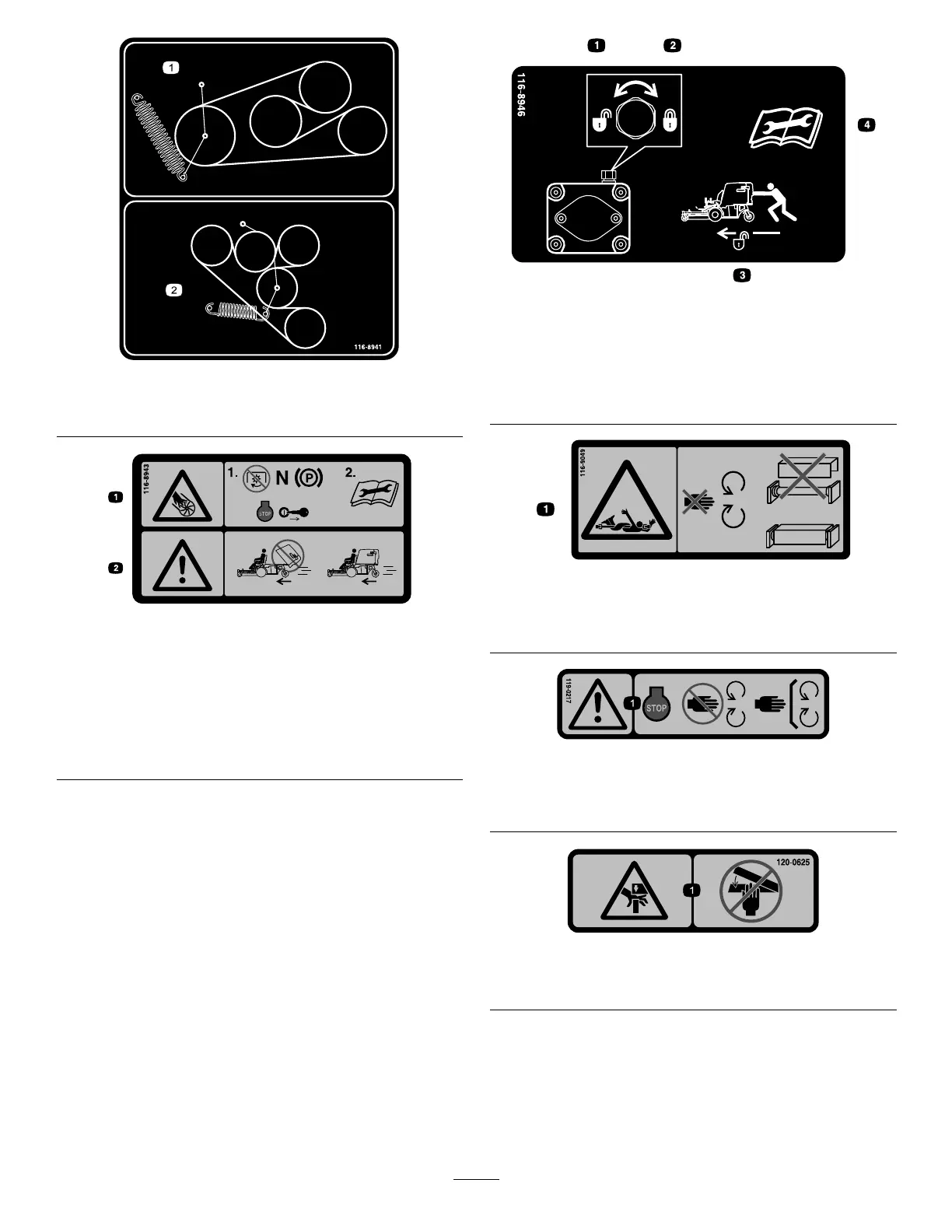

decal1 16-8941
1 16-8941
1. PT O belt routing
2. Pump-drive belt routing
decal1 16-8943
1 16-8943
1. Rotating blades hazard—disengage the PT O, move the
speed-control lever to neutral, engage the parking brake,
shut of f the engine, and remove the key before leaving the
operator ’ s position. Read the Operator ’ s Manual before
servicing or performing maintenance.
2. Danger—do not operate the machine with mower hopper
in the raised position.
decal1 16-8946
1 16-8946
1. Rotate counterclockwise
to release.
3. Unlock to push the
machine.
2. Rotate clockwise to lock.
4. Read the Operator ’ s
Manual before servicing or
performing maintenance.
decal1 16-9049
1 16-9049
1. Rotating driveline hazard—keep all driveline shields in
place. Securely attach both ends of the driveline.
decal133-8062
133-8062
decal1 19-0217
1 19-0217
1. W arning—stop the engine; stay away from moving parts;
keep all guards and shields in place.
