Toro 74399 - Positioning the Seat; Adjusting the Motion Control Levers

UsingtheFootAssistPedal(Model
74399only)
Thefootassistpedalcanbeusedwiththeheightofcut
levertohelpadjustthedeckheight.
1.Entertheoperator’sposition.Placeafootonthe
footassistpedalandapplypressure.
2.Whilemaintainingpressureonthepedal,pull
inwardandupontheheight-of-cutleverandmove
ittothedesiredposition.

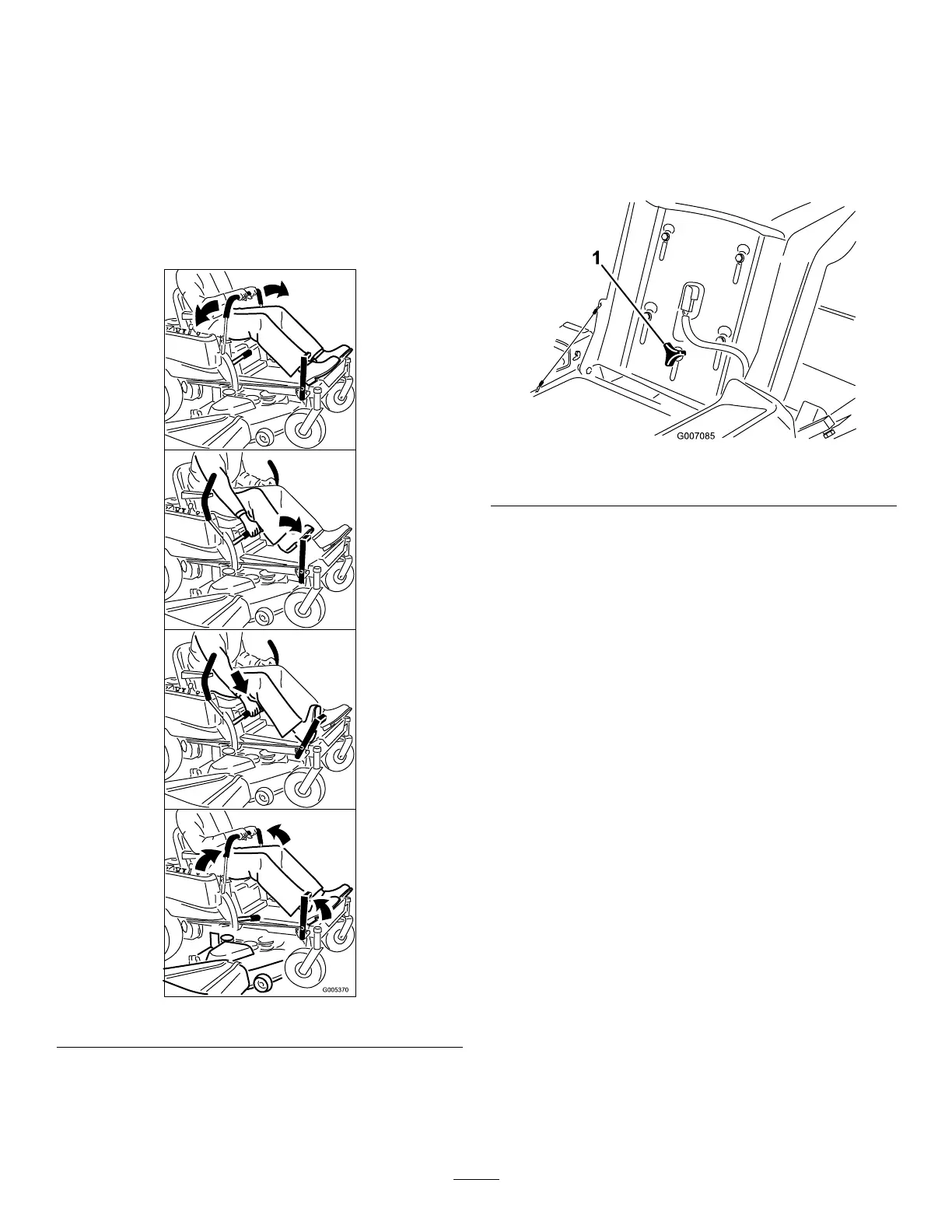

Figure19
PositioningtheSeat
Theseatcanmoveforwardandbackward.Positionthe
seatwhereyouhavethebestcontrolofthemachine
andaremostcomfortable.
1.Raisetheseatandloosentheadjustmentknobjust
enoughthatseatcanmove(Figure20).
Figure20
1.Adjustmentknob
2.Movetheseattothedesiredpositionandtighten
theknob.
AdjustingtheMotionControl
Levers
AdjustingtheHeight
Themotioncontrolleverscanbeadjustedhigheror
lowerformaximumoperatorcomfort.
1.Removethe2boltsholdingthecontrollevertothe
controlarmshaft(Figure21).
2.Movethecontrollevertothenextsetofholes.
Securetheleverwiththe2bolts(Figure21).
21
