G014930
1
2
3
3
4
5
1
2
3
3
4
5
6
4

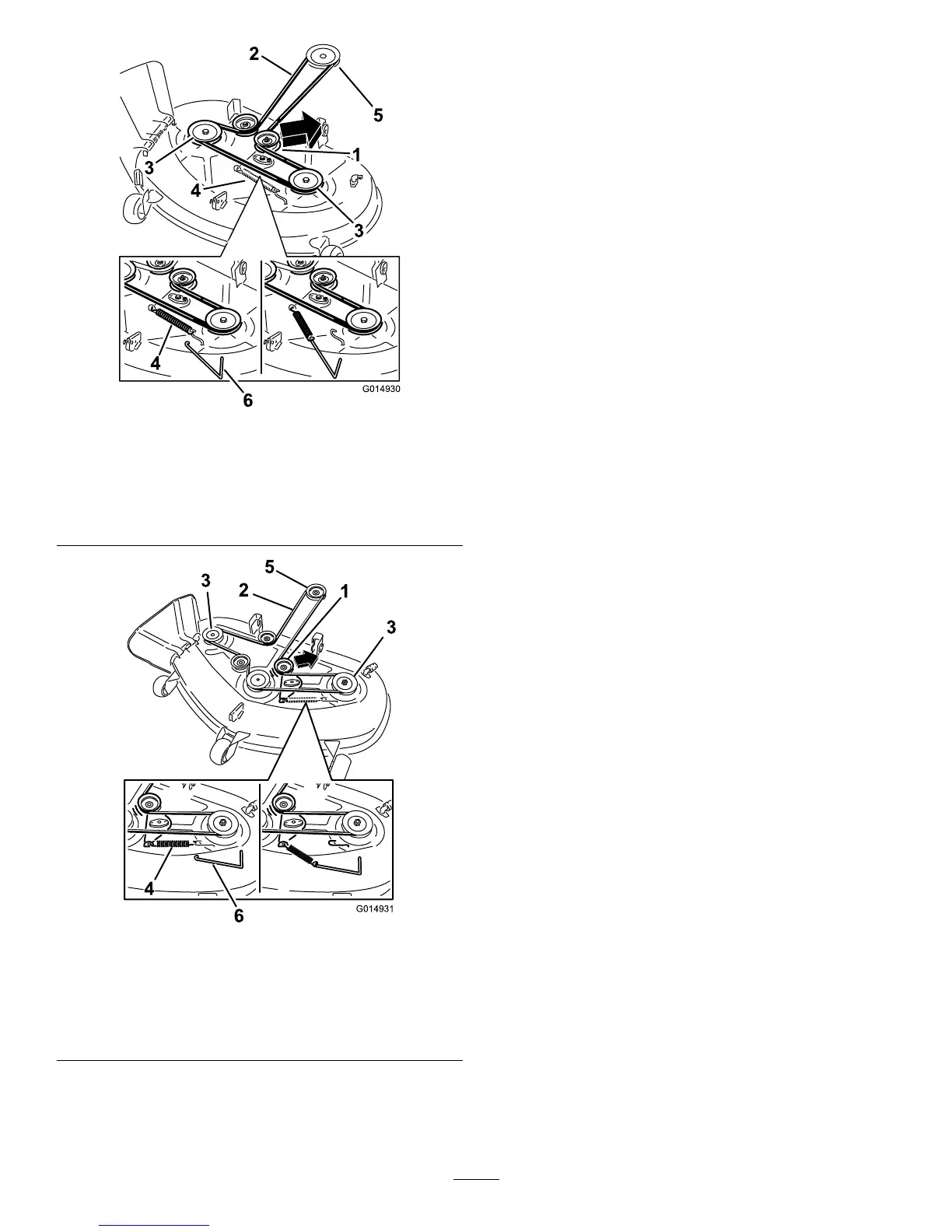

Figure66
Mowerdeckswith2Blades
1.Idlerpulley
4.Spring
2.Mowerbelt5.Enginepulley
3.Outsidepulley6.Spring-removaltool
G014931
1
2
3
3
4
5
6
Figure67
Mowerdeckswith3Blades
1.Idlerpulley
4.Spring
2.Mowerbelt5.Enginepulley
3.Outsidepulley6.Spring-removaltool
6.Routethenewbeltaroundtheenginepulleyand
mowerpulleys(Figure67).
7.Usingaspring-removaltool,installtheidlerspringover
thedeckhook,andplacetensionontheidlerpulley
andmowerbelt(Figure66andFigure67).
8.Tightenthebottom2boltsforthemower-deckcurtain
tothemowerdeck.RefertoReleasingtheMower-Deck
Curtain(page33).
50
