Product Overview

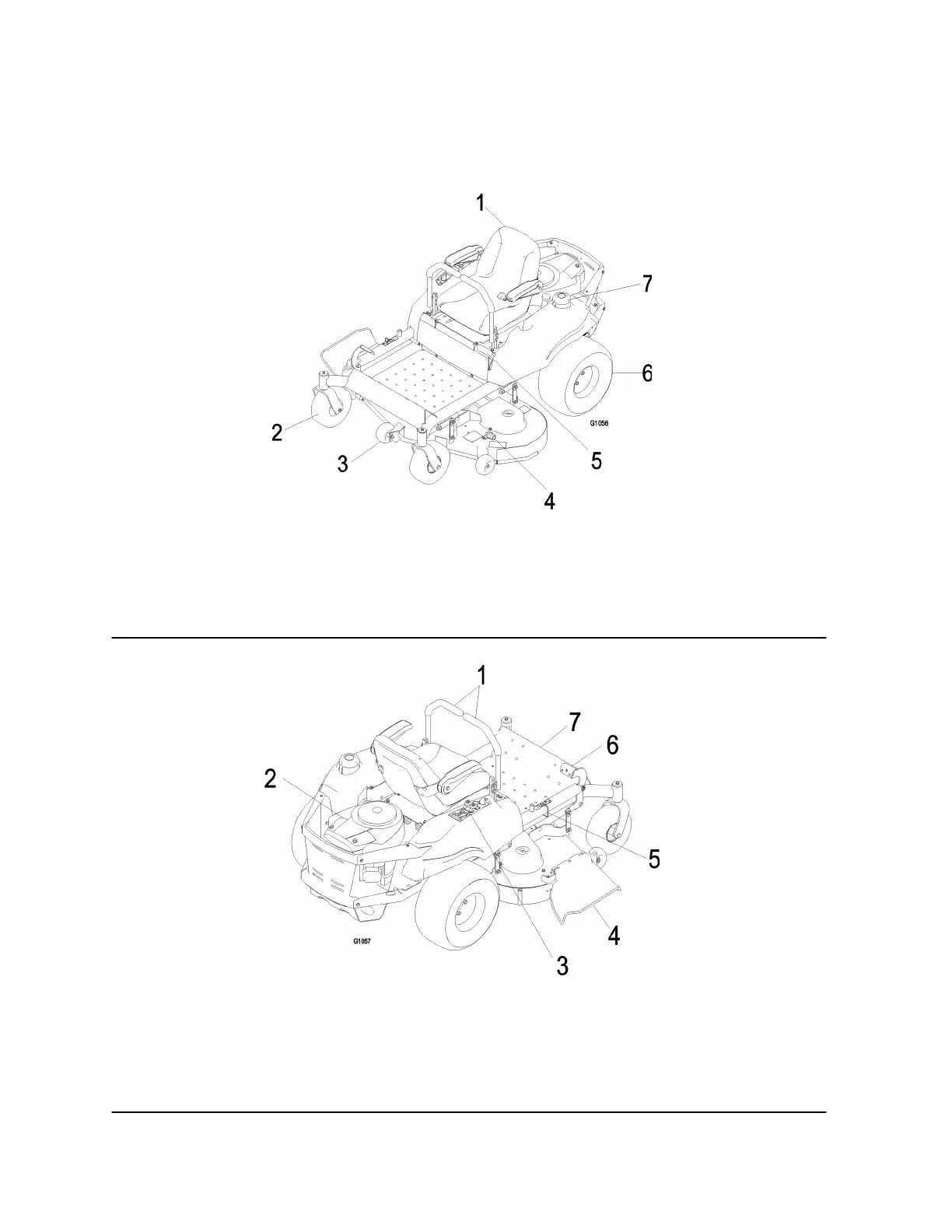

Figure 3
1. Operator seat
2. Front caster wheel
3. Anti-scalp roller
4. Washout fitting
5. Park brake
6. Rear drive wheel
7. Gas tank cap
Figure 4
1. Motion control levers
2. Engine
3. Control panel
4. Discharge deflector
5. Height of cut adjustment
6. Height of cut foot lever
7. Footrest
