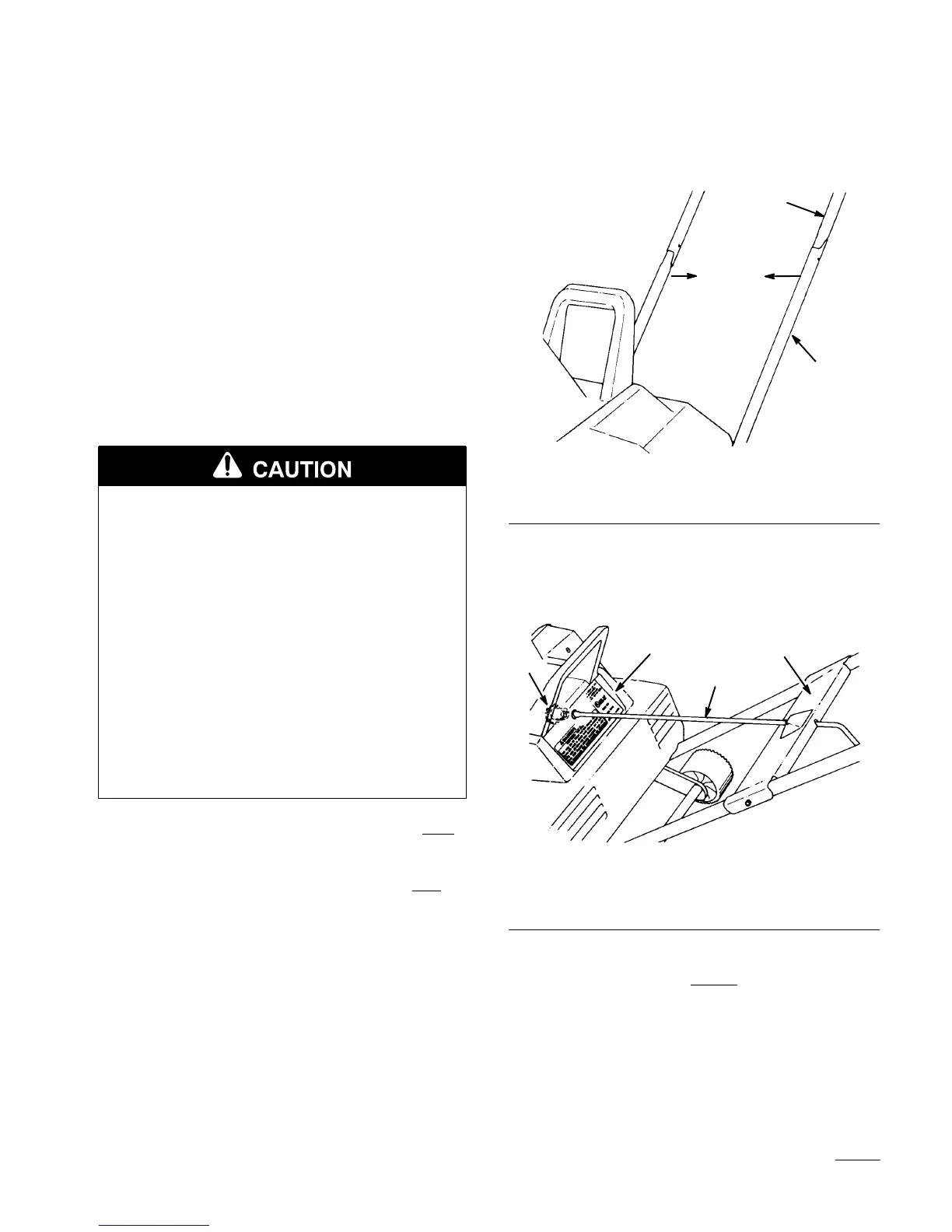

EN-5
Assembly
Install
Upper Handle And
Chute Crank
Note: Determine left and right hand sides of
snowthrower by standing in normal
operating position.
1. Stand snowthrower on wheels and position upper
handle to prepare for handle assembly. Inspect
the open internal wiring. If damaged do not
assemble. Contact your TORO Service Dealer.
POTENTIAL HAZARD
Internal wiring could be damaged during
assembly.
WHAT CAN HAPPEN
Damaged wiring could cause serious
personal injury when operating
snowthrower.
HOW TO AV
OID THE HAZARD
Use car
e so electrical wiring will not be
damaged during assembly.
If wiring is damaged, do not assemble
snowthrower. Contact your TORO Service
Dealer.
2. Carefully insert right side of upper tubing over
end of lower right side tubing (Fig. 1).
3. Carefully insert left side of upper tubing into
end of lower left side tubing (Fig. 1).
4. Squeeze upper tubes together as shown in
Figure 1. Wiggle upper tubes down until
mounting holes in upper and lower tubing are
aligned (Fig. 1).
1531
1
2
SQUEEZE
Figure 1
1. Upper
tubing
2.
Lower tubing
5. Place the mounting plate over the tubes (Fig. 2).
Align mounting plate holes with upper and lower
tubing holes.
1532
2
3
1
4
Figure 2
1. Mounting
plate
2. Shroud
3.
Chute crank
4. Gear
6. Insert end of chute crank through hole in shroud.
Turn chute crank rod lightly until flattened end
drops into slot in gear. Firmly push chute crank
into gear until it snaps into place
(Fig. 2 & 3).
