• If engine will not crank, the load and box (attachment)
must be removed to service engine or transaxle.
Jumping Hydraulic System
Before servicing or making adjustments to the
machine, stop engine, set parking brake and
remove key from the switch. Any load material
must be removed from bed or other attachment
before working under raised bed. Never work
under a raised bed without positioning safety
support on a fully installed cylinder rod.
Caution
Note: Two hydraulic hoses, each with a male and female
quick coupler, that fit the vehicle couplers are required to
perform this operation.
• Back another vehicle up to the rear of the disabled
vehicle.
Important The vehicles hydraulic system uses Dexron
IIl ATF. To avoid system contamination, make sure vehicle
used to jump hydraulic system uses an equivalent fluid.
• On both vehicles, disconnect the two quick coupler
hoses from the hoses secured to the coupler bracket
(Fig. 54).

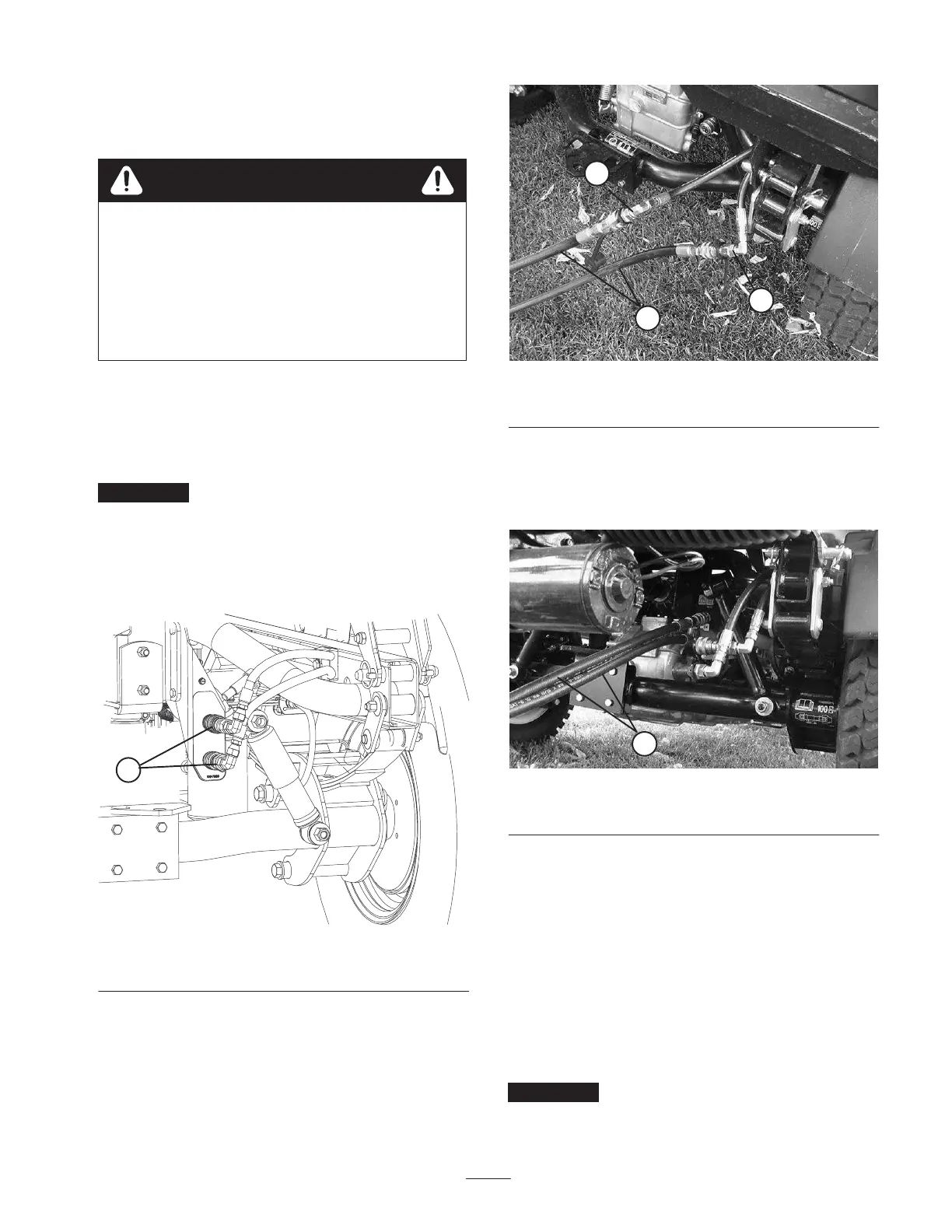

1
Figure 54
1. Quick coupler hoses
• On the disabled vehicle, connect the two jumper hoses
to the hoses that were disconnected (Fig. 55). Cap
unused fittings.
1
1
2
Figure 55
1. Disconnected hoses 2. Jumper hoses
• On the other vehicle, connect the two hoses to the
coupler still in the coupler bracket (Connect the top
hose to the top coupler and the bottom hose to the
bottom coupler (Fig. 56). Cap unused fittings.
1
Figure 56
1. Jumper hoses
• Keep all bystanders away from the vehicles.
• Start second vehicle and move lift lever to the raise
position which will raise the disabled box.
• Move the hydraulic lift lever to the neutral position and
engage the lift lever lock.
Note: With both the vehicles turned off, move the lift lever
back and forth to remove the system pressure and ease the
disconnection of the quick couplers.
• After completing operation, remove jumper hoses and
connect hydraulic hoses to both vehicles.
Important Check hydraulic fluid levels, in both
vehicles, before resuming operation.
