toscano VIGILEC Zero Plus User Manual

ING
ITM-10001-ED4
3
ING

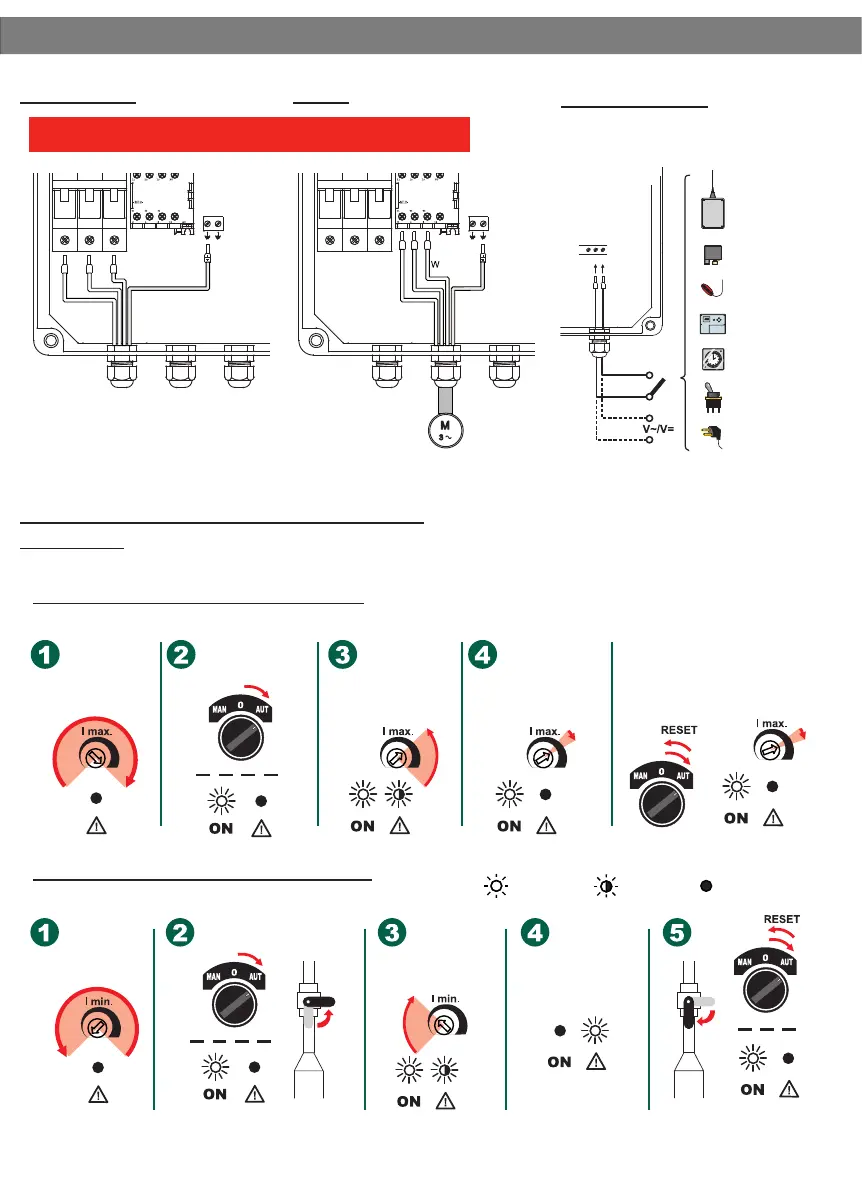

Main supply Motor
Wiring and adjustment
External On/Off
The EXTERNAL ON/OFF (“3” y “4”) terminal blocks can be connected to a remote control device like: radio control, pressure switch, oat switch, irrigation
controller, time switch or a power supply input from 6 to 250 Vac/dc.
A jumper must be placed over Terminal blocks “3” and “4” if not used.
Irrigation systems: we recommend to use the unit in 1 probe mode in applications with irrigation controller or other control devices.
3 4 5 6
Radio remote
control
Pressure switch
Float switch
Irrigation con-
troller
Time switch
Switch
Power supply
(6 to 250 Vac/dc)
BOMBA
To perform these adjustments the pump must be connected, the
water level should be correct and the input EXTERNAL ON/OFF
needs a jumper (N.C. contact).
Turn to right
Turn to left
Turn left until
the warning light
ashes
Turn right until
the warning light
starts ashing
When the pilot
lights up...
Turn right until
the warning light
switches off
If the warning
light is still
on, reset the
unit...
... and repeat
step 4 by turning
the knob a bit
more to the right
Open
valve
Close
valve
OVERLOAD adjustment (maximum current)
UNDERLOAD adjustment (minimum current)
Pilots status:
Light on Flashing Light off
L N
U
V
L1 L2 L3
In single-phase installations, connect the input LN and UV
output.
Check that the supply voltage corresponds to that shown in the control box
(230 or 400 VAC depending on model)
