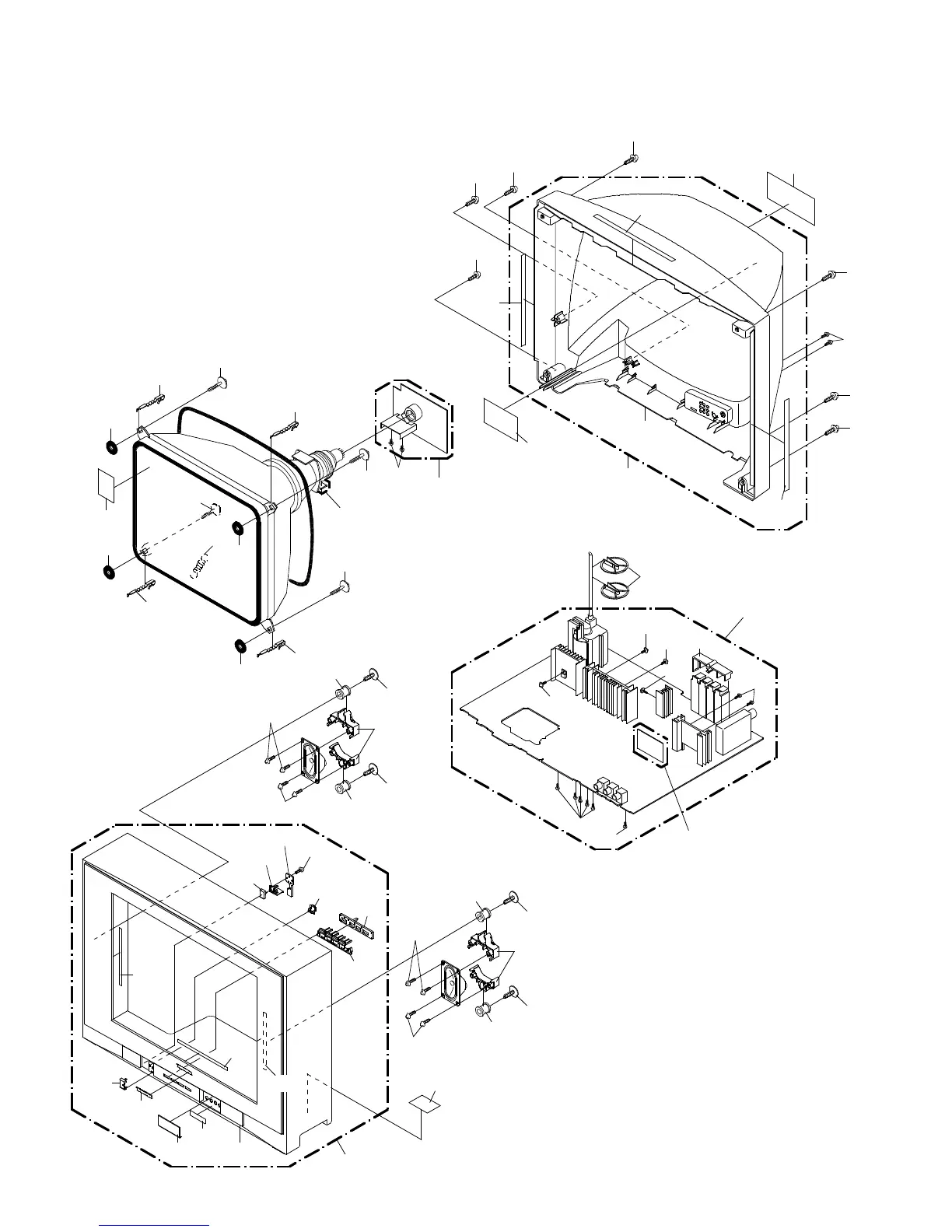

MECHANICAL EXPLODED VIEW
I-1
PCB240
(POWER PCB ASS'Y)
205
204
206
205
206
204
111
209
112
PCB010
(MAIN PCB ASS'Y)
201
201
201
201
107
PCB110
(CRT PCB ASS'Y)
204
108
108
104
PCB060
(VM COIL PCB ASS'Y)
113
108
113
113
113
108
102A
208
102B
208
103
208
208
106
208
102B
102C
203
102
208
208
101I
101H
207
110
109
207
110
101A
101
101C
105
101G
207
207
110
109
110
202
202
202
202
101B
101E
101J
101J
101J
101H
101F
203
101F
101D
