19
Accumulator
TK1 sensor(Black)
Accumulator side (Front side)
Oil separator
Liquid tank
TK4 sensor (Green) TK2 sensor (Blue)
(Rear side)
TK3 sensor(White)
Rear side
Ø6.35 ⇔ Ø15.88 between
SV3E valve and suction
Ø6.35 ⇔ Ø15.88 between
SV3E valve and suction
Ø6.35 ⇔ Ø15.88 between
SV3C valve and discharge pipe
Ø8.0 ⇔ Ø19.05 between
SV42 valve and suction pipe
Ø8.0 ⇔ Ø19.05 between
SV41 valve and suction pipe
No.
7
8
Part to be
exchanged

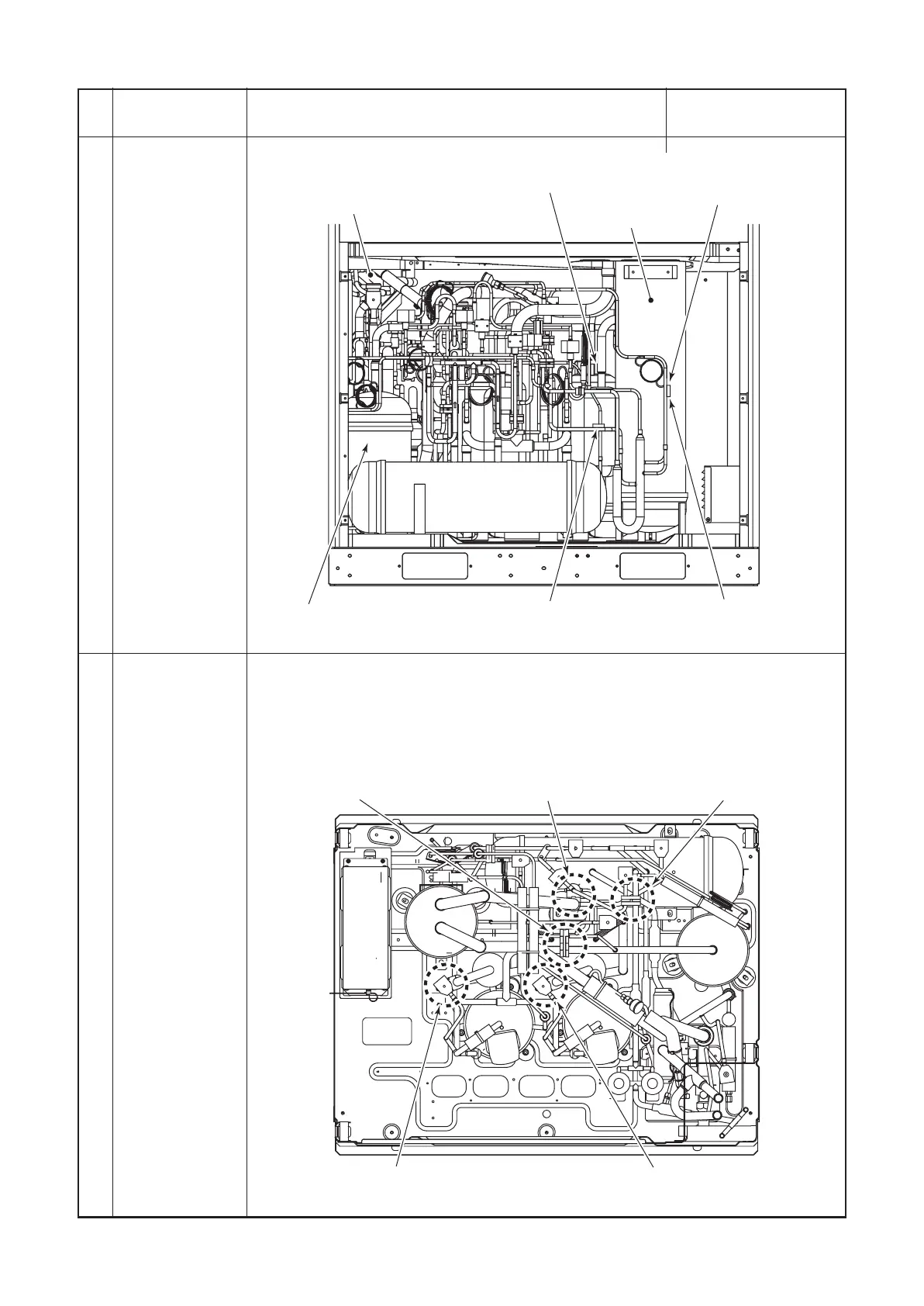

Temperature
sensor positions
and identification
Attachment/
detachment of
pipe fixing rubber
Work procedure
<Rear side of air conditioner>
This air conditioner has been designed so that vibration has been reduced to a minium by
incorporating in the lower section of the unit, the use of eyeglass rubber fixing brackets and
SUS bands. Both of which greatly help to reduce vibration and improve unit reliability.
Used positions of SUS fixing band:Total 5 positions
Remarks
To Next Page
