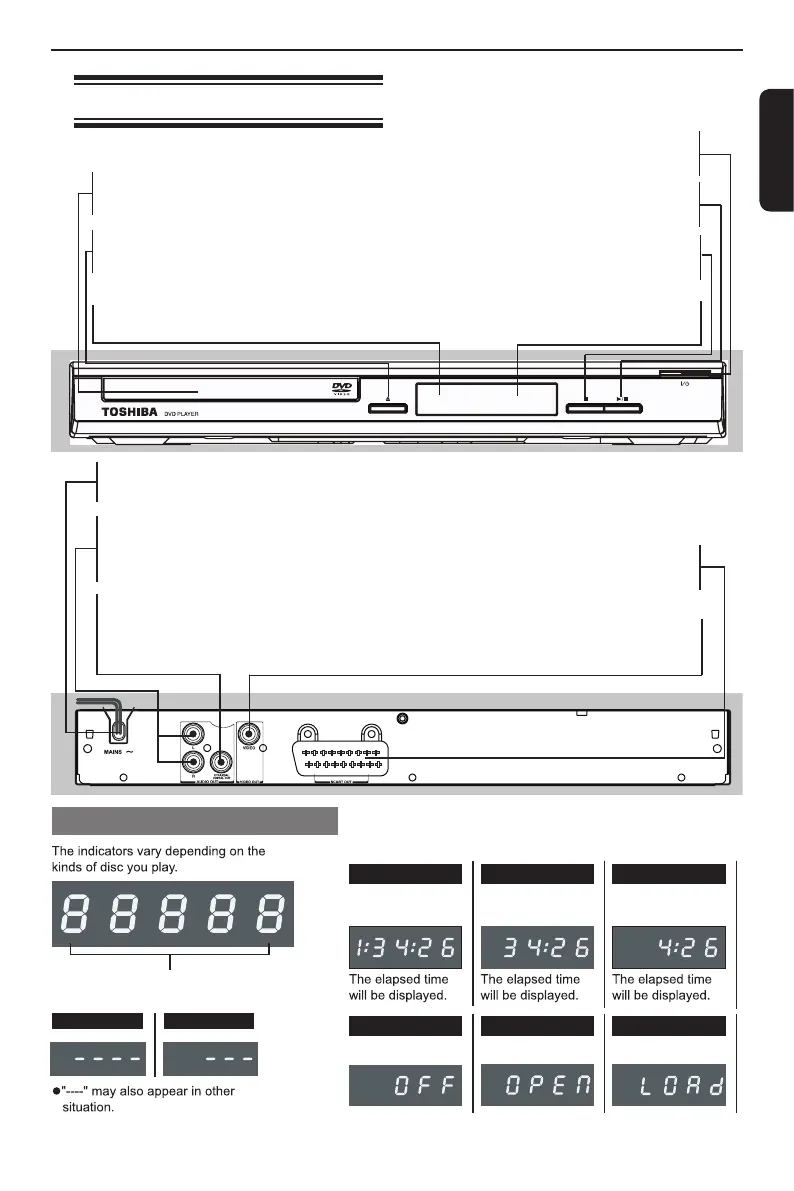

Toshiba SD1010 - Product Overview; Front and Rear Panels

10
English
Disc tray
- Place a disc here
ç
OPEN/CLOSE
- Opens or closes the disc tray
IR Sensor
- Points the remote control towards this sensor
MAINS ~
- Connects to a standard AC outlet
AUDIO OUT (Left/Right)
- Connects to Audio input of a TV, an amplier,
receiver or stereo system
COAXIAL(Digital audio out)
- Connects to coaxial Audio input of a digital audio
equipment
Product Overview
Front and Rear panels
I/
2
ON/STANDBY
- Turns the player on or switches it to standby
mode
B/X PLAY/ PAUSE
- Starts or pauses playback
STOP
- Stops playback
Display
- Shows information about the current status
of the DVD Player
SCART OUT
- Connects to SCART input of a TV
VIDEO Out (CVBS)
- Connects to CVBS Video input of a TV
No disc Bad disc
Multifunctional indicator (indicates
operating status or messages, etc.)
DVD video disc
VIDEO CD Audio CD
•During playback:
Example
•During playback:
Example
•During playback:
Example
Power Off LoadingOpen
DVD display
