Preparations
16
Name : Main Function
(7) RETURN button : Goes back one screen.
(8) Selection button : Menu selections and adjustments, volume control, etc.
p.38
(
12
) FOCUS button : Adjusts the screen focus.
(
13
) ZOOM button : Adjusts the screen size.
(
14
) EASY SETUP button : Performs auto-adjustment.
p.30
(
15
) LASER button : Shows a laser pointer.
(
16
)AUTO SET button : Sets up analog input from computer.
p.30
(
17
) Laser indicator : Lights when laser is on.
(
18
) Mouse control button : Controls a mouse pointer.
p.21
(
19
)PAGE+ button : Proceeds PowerPoint
®
slides.
p.21
(
20
) MUTE button : Cuts off the picture and sound temporarily.
p.33
(
21
) FREEZE button : Pauses image.
p.33
(
22
) SPLIT button : Displays two screens.
p.35
(
23
)Ten-Key button : Use as a ten-key pad with wireless LAN or wired LAN,
from which numbers and characters can be entered.
p.47
(
24
)
Remote control ON/OFF switch
: Switches on/off the remote control.
p.20
(
25
)SWAP button : Swaps the main screen and the sub screen in PIP
mode, or swaps the two screens in SPLIT mode.
p.34
(
26
) PIP button : Displays the sub screen.
p.34
(
27
) PICTURE button : Changes image mode.
p.33
(
28
) SCREEN SIZE button : Changes screen size.
p.33
(
29
) RESIZE button : Enlarges image.
p.32
(
30
)PAGE- button : Goes back PowerPoint
®
slides.
p.21
(
31
) R-CLICK button : Functions as right-click of a mouse.
p.21
(
32
) L-CLICK button : Functions as left-click of a mouse.
p.21
(
33
) Remote control code switch : Sets the code of remote control to that of the projector.
(inside the battery cover)
p.45
Note
•For the remainder of this manual, buttons are referred to as follows:
Selection buttons ⇒
; ENTER button ⇒

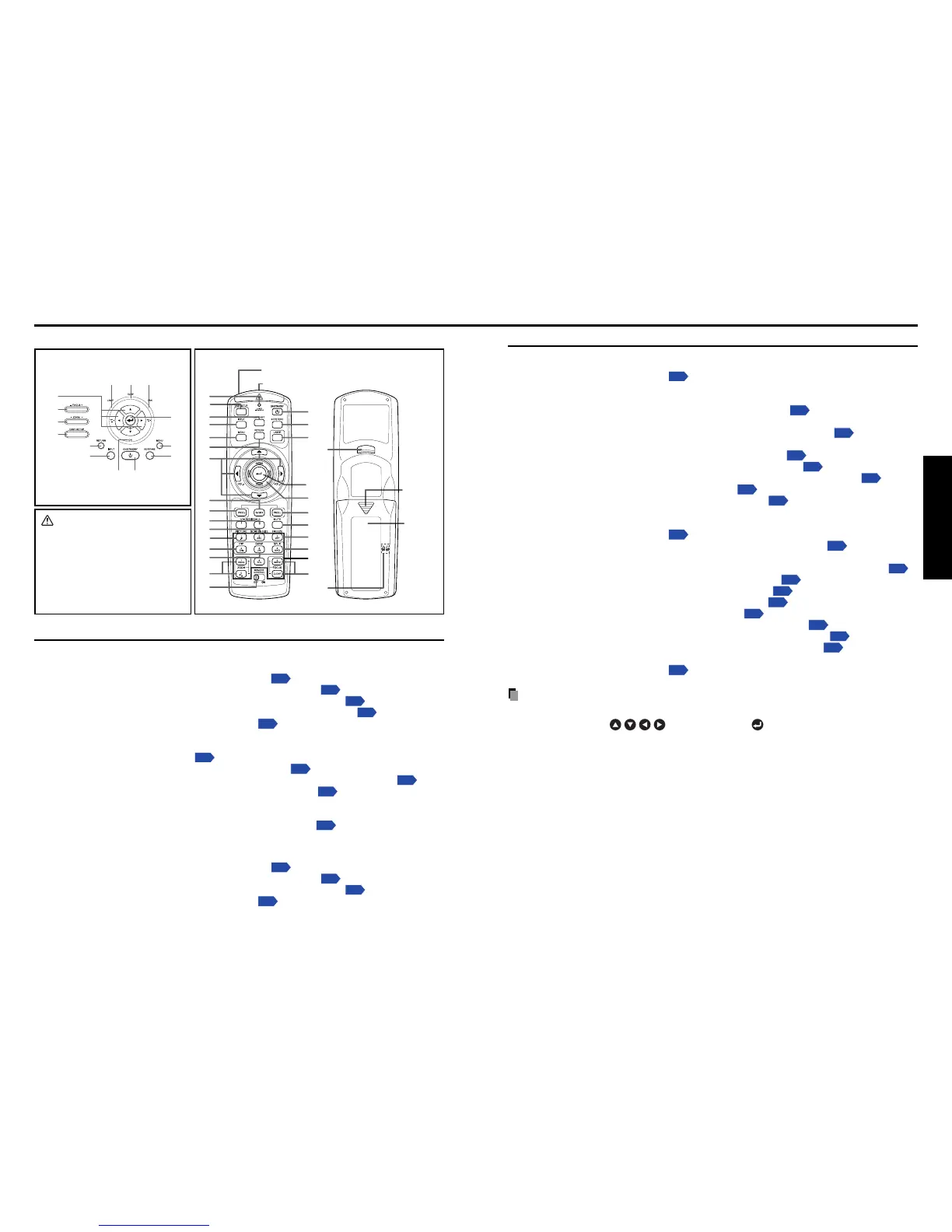

Names of each part on the control panel and remote control
Control panel Remote Control
Name : Main Function
Control panel
(1) ENTER button : Accepts the selected mode.
(2) MENU button : Displays menus.
p.38
(3) KEYSTONE button : Adjusts keystone distortion.
p.31
(4) ON/STANDBY button : Turns the power on/off (standby).
p.26
(5) ON/STANDBY indicator : Displays whether power is on or off.
p.26
(6) INPUT button : Selects input.
p.28
(7) RETURN button : Goes back one screen.
(8) Selection button : Menu selections and adjustments, volume control, etc.
p.38
(9) LAMP indicator : Displays lamp mode.
p.27
(
10
) TEMP indicator : Lights when internal temperature is too high.
p.84
(
11
)FAN indicator : Displays cooling fan mode.
p.84
(
12
) FOCUS button : Adjusts the screen focus.
(
13
) ZOOM button : Adjusts the screen size.
(
14
) EASY SETUP button : Performs auto-adjustment.
p.30
Remote control
(1) ENTER button : Accepts the selected mode.
(2) MENU button : Displays menus.
p.38
(3) KEYSTONE button : Adjusts keystone distortion.
p.31
(4) ON/STANDBY button : Turns the power on/off (standby).
p.26
(6) INPUT button : Selects input.
p.28
