Toshiba TOSVERT VF-P7 User Manual

E6581172①
7
4.1.2. Operation with F330=2, 4, 7 or 9 (automatic mode)
It is a mode of light-load high-speed operation with automatic light-load high-speed operation frequency (F341)
when light-load high-speed operation selection F330=2, 4, 7 or 9 (automatic mode) is set.
F330=2 or 7 : Continuous automatic mode
F330=4 or 9 : Enabled-terminal effective automatic mode
F330=4 or 9 is the setting of 2 or 7 plus the enabling signal of light-load high-speed operation function.

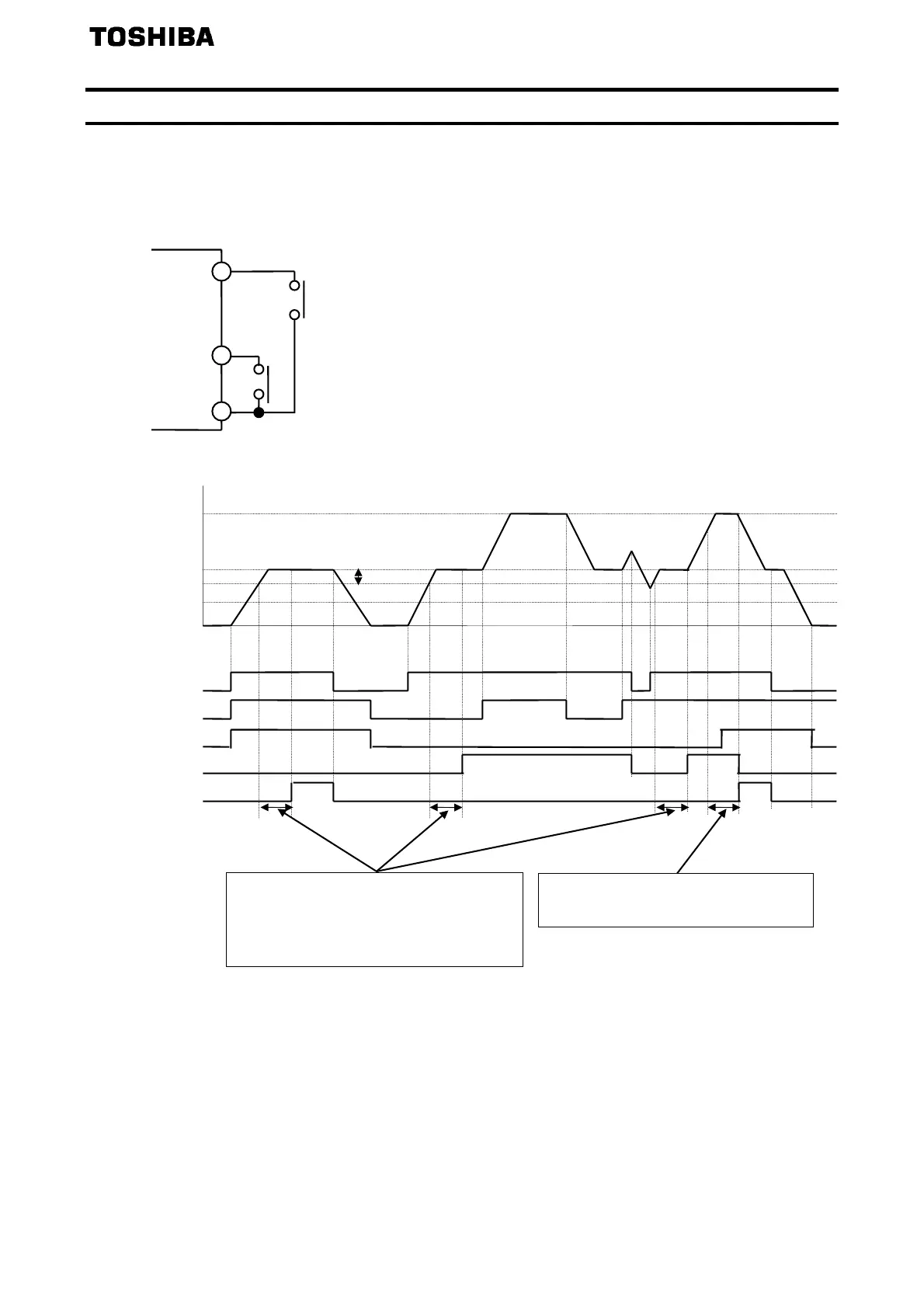

The following example indicates the enabling signal assigned to S4 terminal:
In case of using no light-load high-speed operation enabling signal (F330=2 or 7), the operation is under
continuously-enabled condition, which is the same as the operation during S4 terminal continuously ON in the
above chart.
When the enabling sinal is turned OFF during light-load high-speed operation, light-load high-speed operation will
be stopped, to operate with the directed normal speed value.
In case of OFF input, heavy load detection will be stopped, to start constant-speed load judgement after light-load
high-speed operation load waiting time, which commences a measurement when the directed speed value is
achieved.
Heavy load detection
S4
F
CC
Light-load high-speed
operation enabling
signal (S4)
A
utomatic light-load
high-speed operation
frequency F341
Load condition
F102 achieved speed
detection width
Light-load high-speed
operation switching
lower limit frequency
F331
Time
(seconds)
Frequency (Hz)
Directed speed value
Operation signal (F) ON OFF
ON OFF
Heavy load Light load
OFF ON
ON OFF
In case of selecting the light-load high-speed operation enabling signal
(120) for S4 (F118)
F332 (light-load high-speed operation load
waiting time)
+
F333 (light-load high-speed operation load
detection time)
Light-load detection
F334 (light-load high-speed operation
heavy load detection time)
