Disassembly and Reassembly
Toshiba
4-3
Œ
´
ˇ
¨
ˆ
Ø

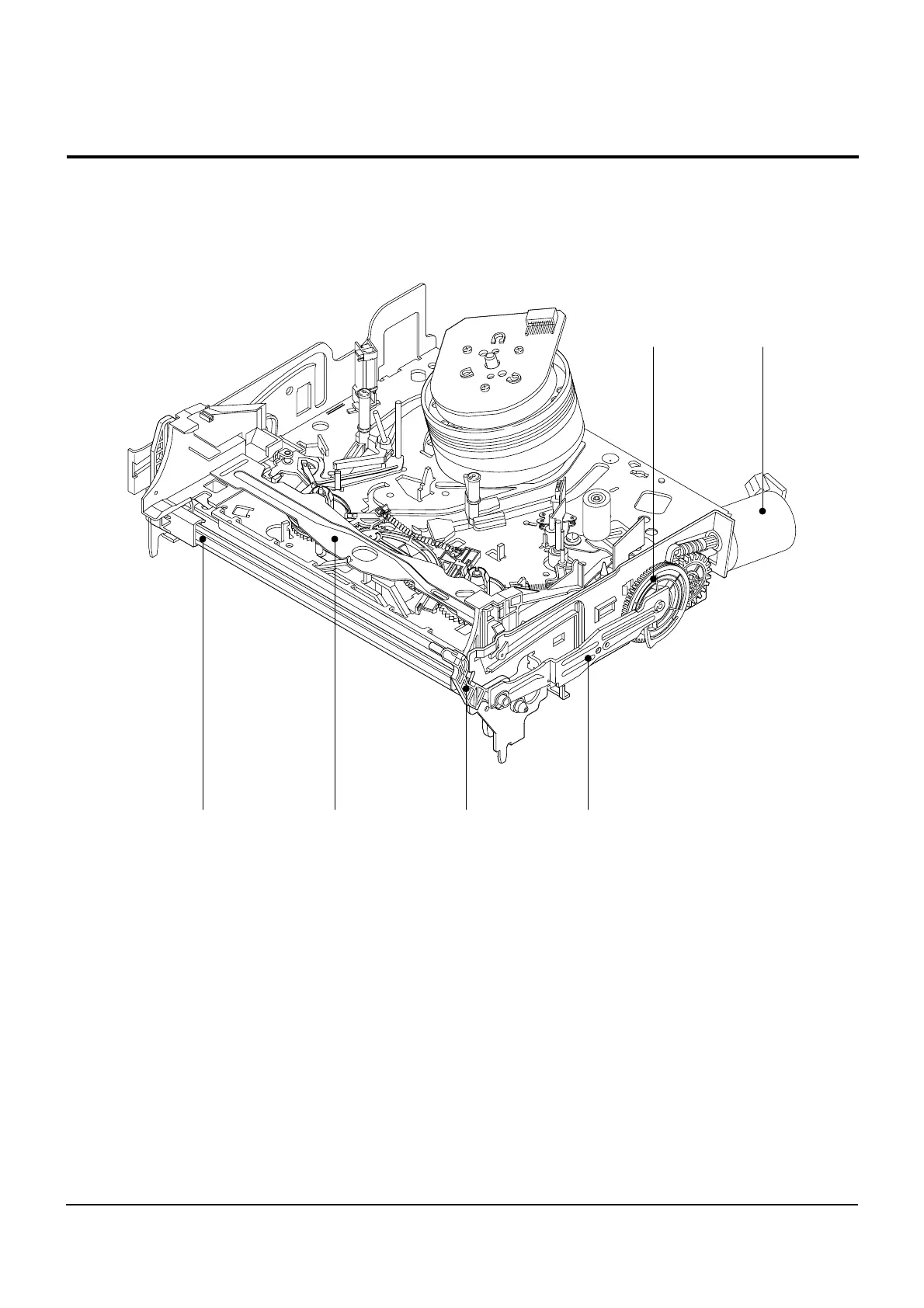

Fig. 4-6 Top parts Location-1
ΠGEAR FL CAM
´ MOTOR LOADING ASS’Y
ˇ LEVER FL ARM ASS’Y
¨ HOLDER FL CASSETTE ASS’Y
ˆ LEVER FL DOOR
Ø SLIDER FL DRIVE
4-2 Deck Parts Locations
4-2-1 Top View
