Toshiba V-E78 - Page 39

4-12
Toshiba
Disassembly and Reassembly
ΠDISK S REEL
´ DISK T REEL

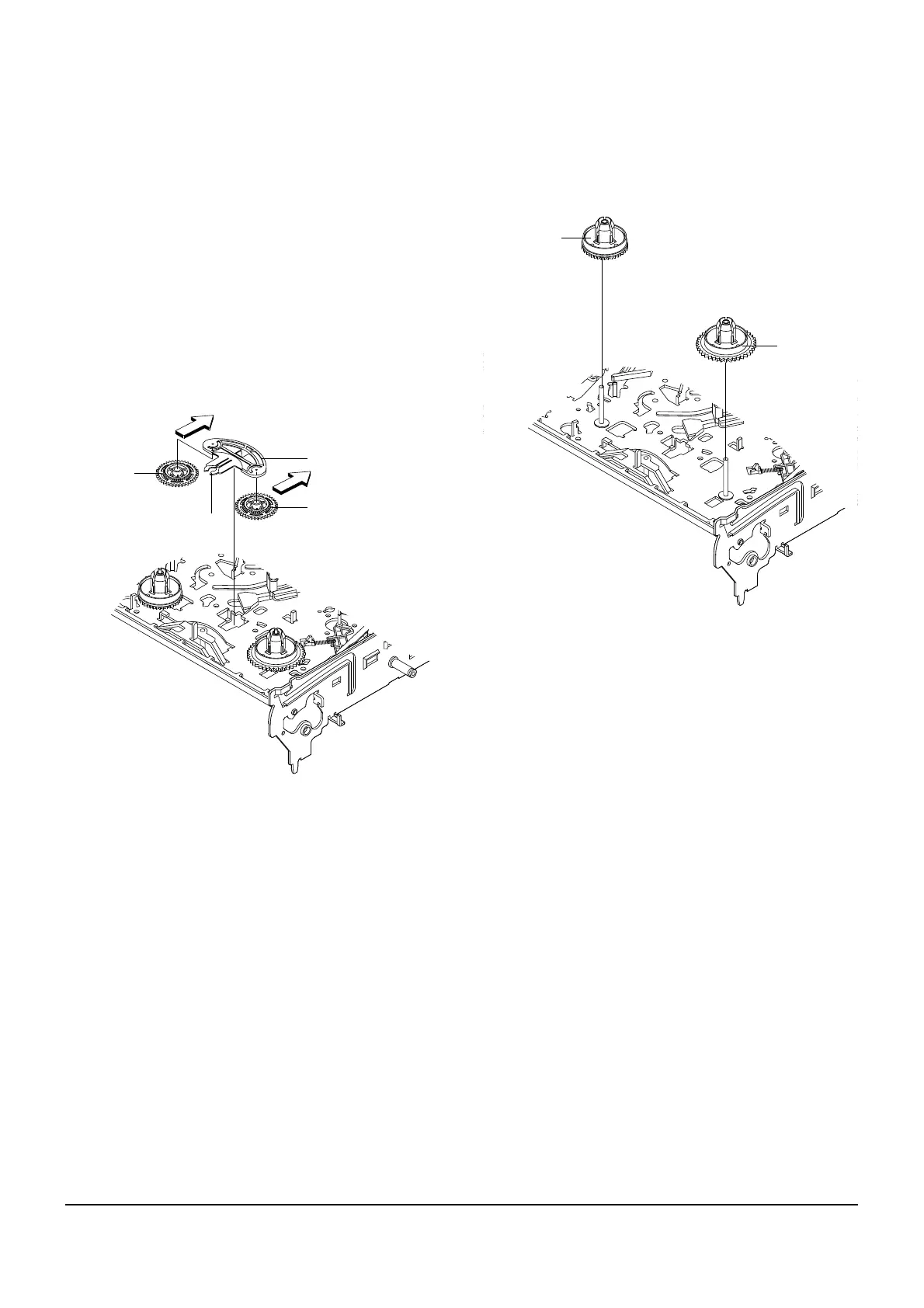

Fig. 4-24 Disk S, T Reel Removal
4-3-13 Gear Idle Ass’y Removal
1) Push the Lever Idle Πin the direction of arrow
“A”, “B”.
2) Lift the Lever Idle Œ.
Assembly :
1) Apply oil in two Bosses of Lever Idle Œ.
2) Assemble the Gear Idle ´ with the Lever Idle Œ.
Note : When replacing the Gear Idle ´, be sure to
add oil in the boss of Lever Idle Œ.
4-3-14 Disk S, T Reel Removal
1) Lift the Disk S, T Reel Œ, ´.
´ GEAR IDLE
´ GEAR IDLE
ΠLEVER IDLE
"A"
HOOK "C"
"B"
Fig. 4-23 Gear Idle Ass’y Removal
