Disassembly and Reassembly
Toshiba
4-15
4-3-19 Lever #9 Guide Ass’y Removal
1) Remove the Spring #9 Guide Œ.
2) Lift the Spring #9 Guide Ass’y ´ in the direction
of arrow “A”.
Note :
1) Take extreme care not to get grease on the tape
Guide Post.
2) After reinstalling, check the bottom side of the Post
#9 Guide to the top side of Main Base.
ΠSPRING #9 GUIDE
´ LEVER #9 GUIDE ASS`Y
"A"
"B"

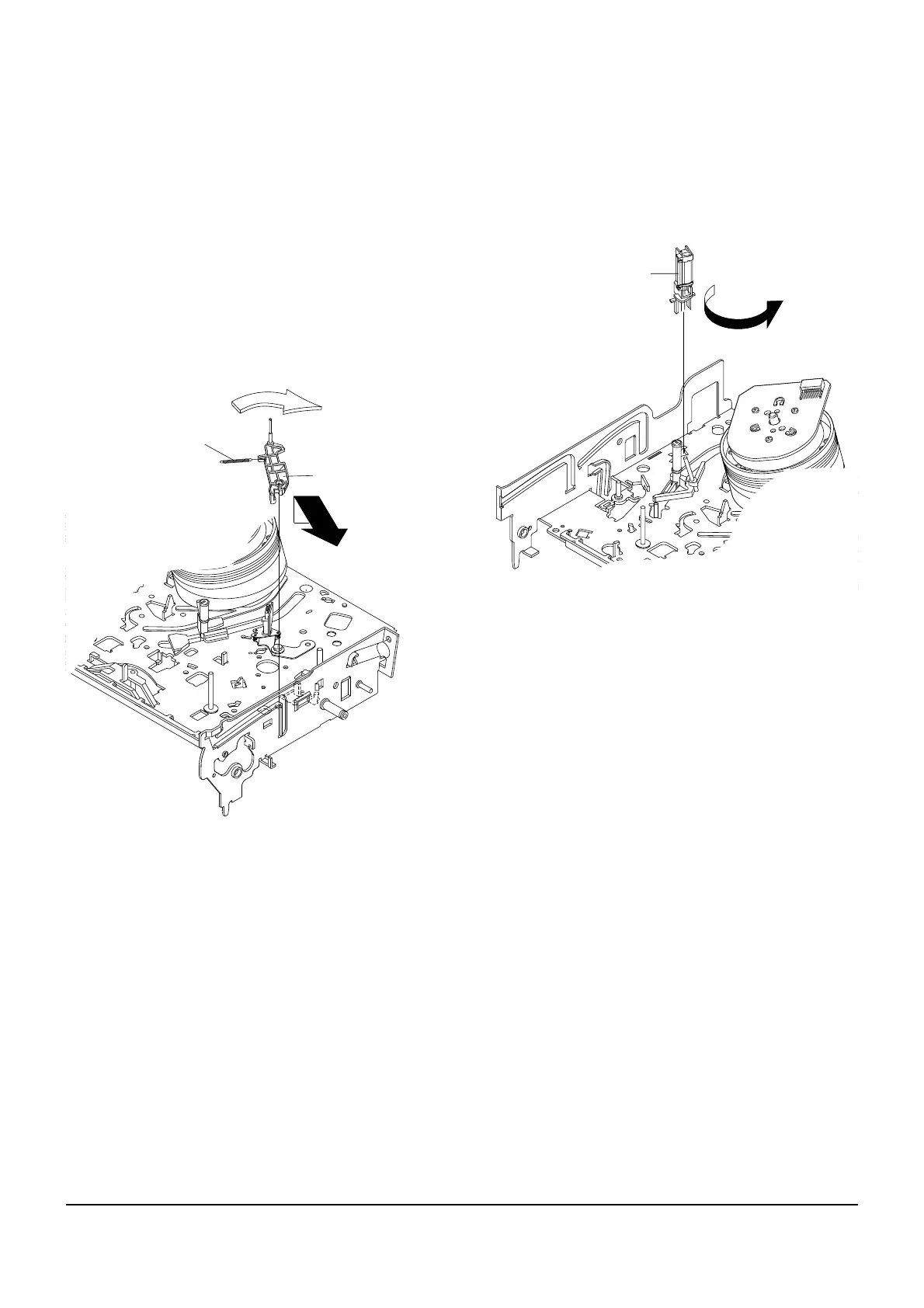

Fig. 4-30 Lever #9 Guide Ass’y Removal
4-3-20 FE Head Removal
1) Remove the screw Œ.
2) Lift the FE Head ´.
ΠFE HEAD
Fig. 4-31 FE Head Removal
